Prepare New Part

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Structural adhesive bonding.
Observe preparation of bonding surfaces.
For additional information see: BMW/MINI BONDING INSTRUCTIONS REP-ALG-RAG1141-4105402 - V.11 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .

NOTE: Perform the steps on the left and right side.

Adjust the new parts in combination with the tail panel to fit and secure.

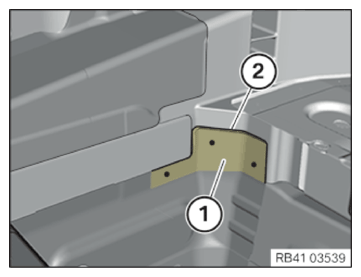

Prepare area (1) for structural adhesive bonding of steel to steel and aluminum.

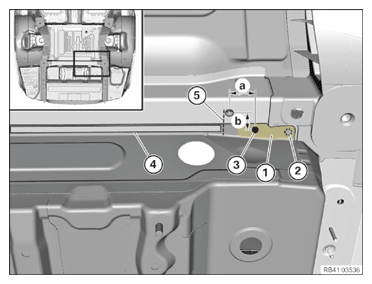

Transfer the position of the hole (2) that resulted from the removal on the vehicle to the new part. Set hole (2) Ø 6.8 mm for blind rivet.
Set the new hole (3) Ø 6.8 mm according to the specified dimensions.
Dimension a = 40 mm from hole Ø 12 mm.

Dimension b = 24 mm from hole Ø 12 mm.

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare area (4) from the reference line (5) for joining by welding.

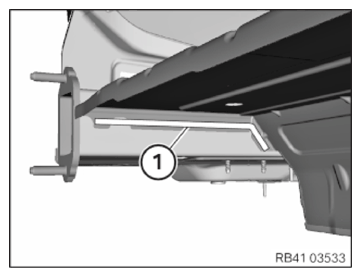

Mark the area (1) for a future adhesive application on the vehicle and on the new part (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare area (1) for structural adhesive bonding of steel to steel and aluminum.

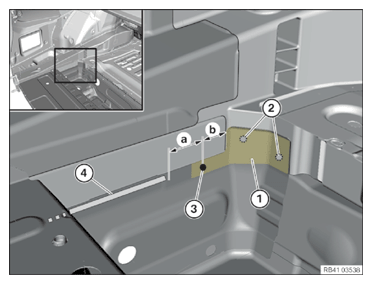

Assign the positions of the holes already present in area (2) of the vehicle to the new part. Set holes (2) Ø 6.8 mm for blind rivet.
Set hole (3) Ø 6.8 mm according to dimension b. Dimension b = 30 mm from component edge.
Prepare area (4) according to dimension a for joining by welding. Dimension a = 40 mm.

Courtesy of BMW OF NORTH AMERICA, INC.

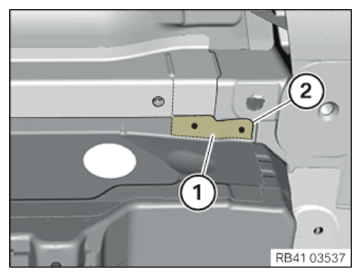

Mark the area (1) for a future adhesive application on the vehicle and on the new part (2).

Courtesy of BMW OF NORTH AMERICA, INC.

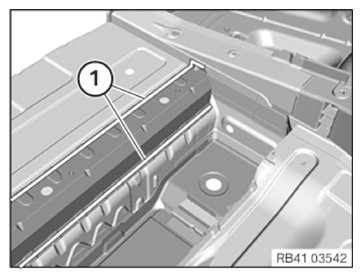

Prepare areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

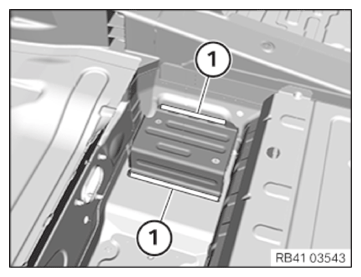

Prepare areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

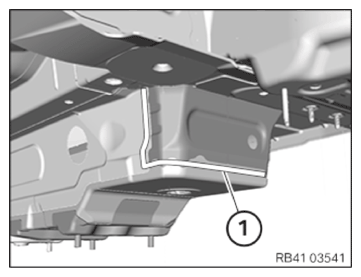

Prepare areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.

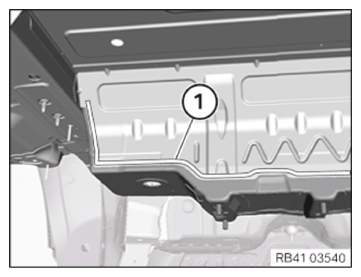

Prepare areas (1) for joining by welding.

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare areas (1) for joining by welding.
Remove new part and deburr holes.
Remove adhesive residue from the bonded connections of the series from the vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the coarse thread bolt and threaded weld bolts (steel surface)

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Renew the coarse thread bolt (1) and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt

Take the number and position from the component to be replaced or the add-ons.
Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.

Courtesy of BMW OF NORTH AMERICA, INC.

Check ground pins and replace if necessary

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Check the ground pins (1) for stability and renew if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
