Preparing New Part
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Structural adhesive bonding.
Observe preparation of bonding surfaces.
For additional information see: BMW/MINI BONDING INSTRUCTIONS REP-ALG-RAG1141-4105402 - V.11 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
Structural adhesive bonding.
Observe preparation of bonding surfaces.
For additional information see: BMW/MINI BONDING INSTRUCTIONS REP-ALG-RAG1141-4105402 - V.11 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .

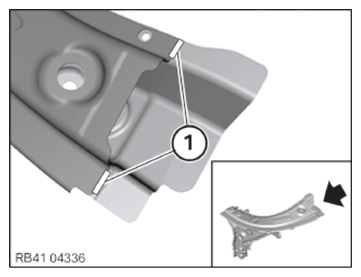

- Prepare the areas (1) for MAG welding. The MAG weld seams have an approximate length of 15 mm.
- MAG weld the areas (1).
- Adjust new parts with an alignment bracket or a universal fixture and secure.
- Prepare area (1) for structural adhesive bonding of steel to aluminum.NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Transferring hole pattern. - In the areas (1) transfer the hole pattern from the engine mount to the carrier support.
- Drill out holes to dia. 6.8 mm.

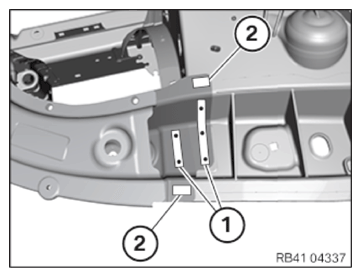

- Prepare the areas (1) and (2) for structure bonding of steel to aluminum.
- Transfer the 5 rivet holes from the spring support to the new part in the areas (1). Drill out holes to dia. 6.8 mm.
- Prepare area (1) for structural bonding of steel on aluminum.
- Transfer the 12 rivet holes from the spring support to the new part in the areas (1). Drill out holes to dia. 6.8 mm.
- Prepare areas (2) for structure bonding steel on steel.
- Transfer the 2 rivet holes from the spring support to the new part in the areas (2). Drill out holes to dia. 6.8 mm.
- Prepare areas (3) and (4) for steel on steel structure bonding.
- In the areas (3) and (4), set 4 bores Ø 4.2 mm as shown.
- Prepare the new part in the areas (1) for joining with MAG weld. The MAG weld seams have a length of = 15 mm.
- Remove the adhesive residue in the areas (1).
- Prepare areas (1) for joining by welding.NOTE: TECHNICAL INFORMATION
For additional information see: SPOT-WELD BONDING STEEL COMPONENTS REP-ALG-RAGRP41-4105701 - V.3 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Observe the procedures for the replacement of spot-welded adhesive joints of the standard production.
- Remove new parts and deburr bores.
