Remove interior roof light
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .
NOTE:
TECHNICAL INFORMATION
With the optional equipment SA6UA, the camera for gesture control is integrated in the roof control module. Separate exchange of this camera in the event of a fault is not possible.
With the optional equipment SA6UA, the camera for gesture control is integrated in the roof control module. Separate exchange of this camera in the event of a fault is not possible.
Preliminary work
- Refer to REMOVING THE ROOF FUNCTION CENTER (FZD) .

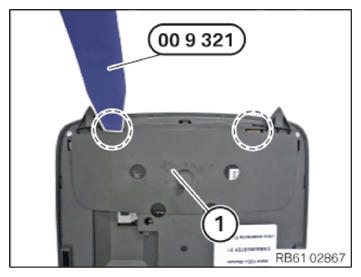

- Lever out the interior roof light with the special tool 0 490 527 (00 9 310)
from the frame (1).

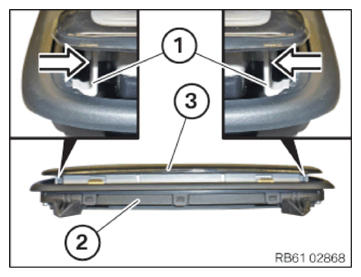

- Release both detents (1) in direction of arrow.
- Feed the interior roof light (3) out of the frame (2).
