Remove the tail light on the side panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to REMOVING THE LUGGAGE COMPARTMENT FLOOR COVERING .
Refer to REMOVING THE LOADING EDGE TRIM .
Refer to PARTIALLY REMOVING THE LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .

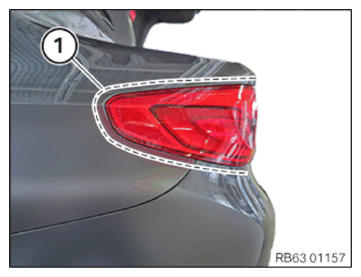

Protect the body in area (1) with adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.
Unclip the water guide (1) with the special tool 0 496 569 (00 9 325) .

Courtesy of BMW OF NORTH AMERICA, INC.

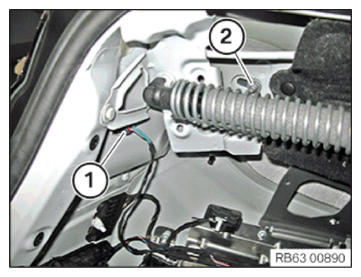

Unlock and disconnect connector (1).
Release the nut (2) on the inside of the trunk.

Courtesy of BMW OF NORTH AMERICA, INC.

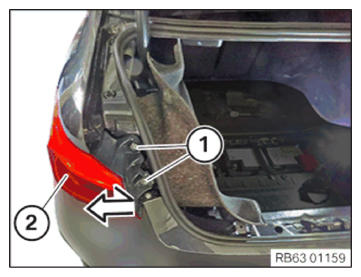

Release the nuts (1) on the tail light (2).
Remove the tail light (2) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
