Install the control link

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Position the control link (1).

Courtesy of BMW OF NORTH AMERICA, INC.

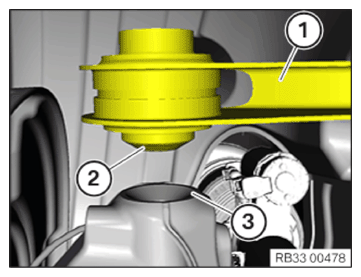

Make sure that, while installing the toe link (1), the conical side (2) of the rubber mount points in the direction of the wheel carrier (3).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .

Replace screws (1) and (2).
Parts: Screws

Fig 1: Control Link Screws Tightening Sequence
Courtesy of BMW OF NORTH AMERICA, INC.
Insert the bolts (1) and (2) and screw in by hand force.
Tighten the screw (1) in NORMAL POSITION .

TIGHTENING TORQUE SPECIFICATIONS

Control link to control link bearing bracket
M12 Replace screw. Tighten in normal position.	Joining torque Angle of rotation	100 Nm 90°

Tighten the screw (2) in NORMAL POSITION .

TIGHTENING TORQUE SPECIFICATIONS

Track arm to wheel carrier
M12 Replace screw. Tighten in normal position.	Joining torque Angle of rotation	165 Nm 90°

Follow-up work

Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM .
Refer to MOUNTING THE WHEEL .
Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
