Installing the servomotor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Position the servomotor so that the gearing is aligned in an interlocking way.
Position the servomotor so that the gearing is aligned in an interlocking way.

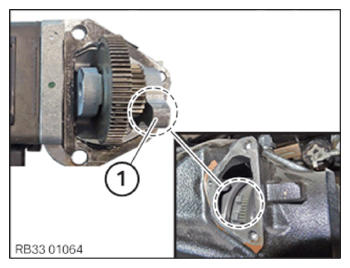

- Mind the cams (1) while positioning the servomotor.

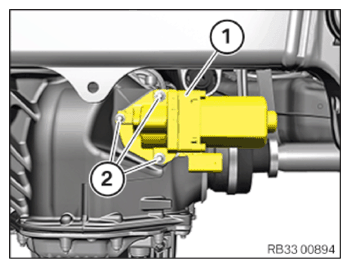

- Position servomotor (1) .
- Tighten down screws (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Servomotor (complete set) to rear axle differential | ||
| M6 | tightening torque | 10 Nm |
Follow-up work
- Refer to LIFTING THE REAR AXLE DIFFERENTIAL .
- Refer to INSTALLING THE HEAT SHIELD AT THE REAR .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE REAR TUNNEL CONNECTING SUPPORT .
- Refer to INSTALLING THE REINFORCEMENT STRUT .
- Refer to INSTALLING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
- Refer to INSTALLING THE UNDERSHIELD ON THE LEFT FUEL TANK .
- Refer to INSTALLING THE REAR DIFFUSER .
- Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
- Refer to SUBSEQUENT REMOVAL AND INSTALLATION OF THE SERVOMOTOR DUE TO OIL LEAK: CHECKING THE OIL LEVEL IN THE REAR AXLE DIFFERENTIAL .
