Install temperature sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

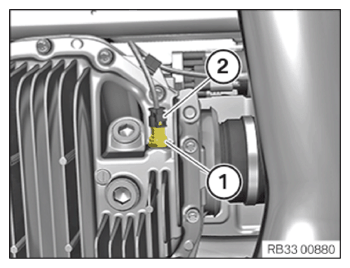

- Screw in temperature sensor (1) by hand.
- Tighten temperature sensor (1).
TIGHTENING TORQUE SPECIFICATIONS
| Temperature sensor to oil pan | ||
| M12 | tightening torque | 17 Nm |
- Connect connector (2) to temperature sensor (1) and lock it.
Follow-up works
- Refer to TOPPING UP THE REAR DIFFERENTIAL FLUID .
