Installing the crash-active head restraint for the front seat

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

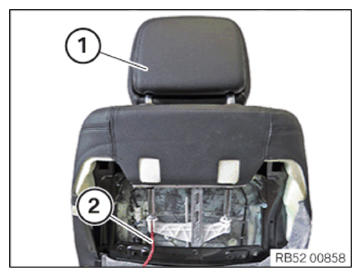

Insert the crash-active head restraint (1) including the cable (2) into the backrest from the top.

Courtesy of BMW OF NORTH AMERICA, INC.

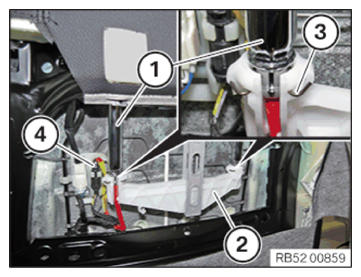

Clip in the crash-active head restraint (1) into the drive (2).
The clamps (3) must engage noticeably.
Connect and lock the connector (4) and clip into the cable clip.
Check the correct fit of the crash-active head restraint (1) in the clamps (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Check

Check the correct locking of the head restraint by means of a pull-off test.
Pull the head restraint upwards by applying hand force.

Result

» Head restraint cannot be detached.

Measure

Continue with the installation.

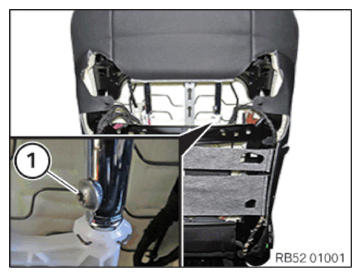

Hand-tighten the bolt (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE TOP REAR PANEL ON THE FRONT SEAT REAR PANEL .
Refer to CONNECTING BATTERY GROUND LEAD .
Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
