Installing the top rear panel on the front seat rear panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

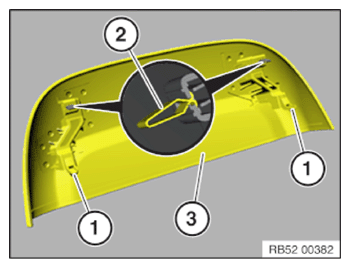

- Check the guides (1) and clamps (2) on the rear panel (3) for damage and replace as needed.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

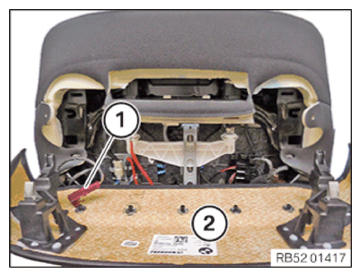

- Position the rear panel (2) and connect and lock the plug connection (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

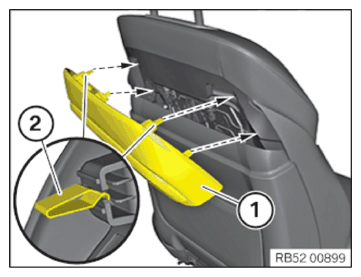

- Insert the rear panel (1) with the bottom guides and clip it into the backrest with the clamps (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
