Preparing the replacement transmission

Preliminary work

• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to REMOVING THE REAR DIFFUSER .
• Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
• Refer to REMOVING THE STIFFENING PLATE .
• Removing the undershield on the left fuel tank.

  Courtesy of BMW OF NORTH AMERICA, INC.

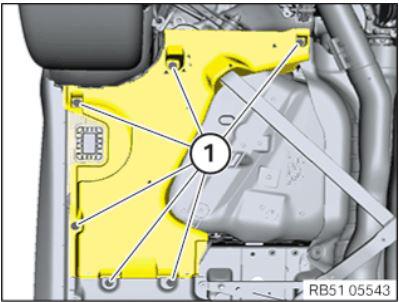

  • Loosen screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

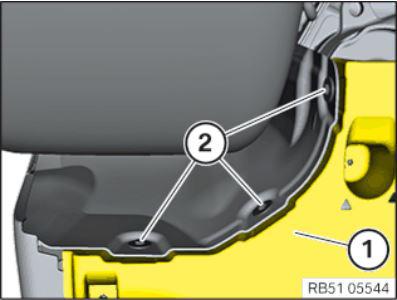

  • Loosen screws (2).
  • Remove the undershield (1) at the fuel tank on the left.
• Refer to REMOVING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
• Refer to REMOVING REINFORCEMENT STRUT .

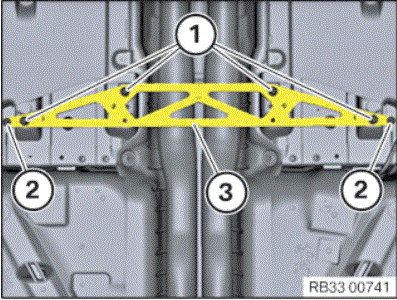

• Removing rear tunnel connecting support.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Loosen screws (1).
  • Loosen screws (2).
  • Removing rear tunnel connecting support(3).
• Refer to REMOVING EXHAUST SYSTEM .
• Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .

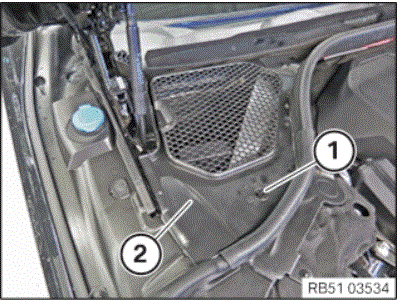

• Removing the cover of the rear right engine compartment.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Loosen the lock (1).
  • Remove the cover (2).

  Covering the vehicle battery

  CAUTION: Unprotected battery terminals.

  Risk of short circuits! Risk of fire!

  • Cover the vehicle battery

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

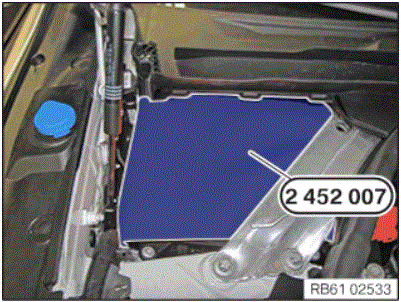

  • Cover the vehicle battery with the special tool 2 452 007  as shown.
• Refer to REMOVING LEFT AND RIGHT WIPER ARM .
• Refer to REMOVING THE COWL COVER .
• Refer to REMOVING TRAILING LINK AT SPRING BOLT .
• Refer to REMOVING THE COWL UPPER PART IN THE CENTER .
• Refer to REMOVING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
• Refer to REMOVING THE COVER PANEL OF THE SLAVE DME CONTROL DEVICE .
• Refer to REMOVING THE ACOUSTIC COVER .
• Refer to REMOVING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 1 TO 4 .
• Refer to REMOVING LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 5 TO 8 .
• Refer to REMOVING COOLANT EXPANSION TANK .
• Refer to REMOVING HOLDER OF DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
• Refer to REMOVING EXPANSION TANKS FOR THE CHARGE AIR COOLERS .
• Refer to LIFTING THE HEAT SHIELD AT THE SIDE .
• Refer to REMOVING THE OXYGEN SENSOR MONITOR OF CYLINDER BANK 1 .
• Refer to REMOVING THE OXYGEN SENSOR MONITOR OF CYLINDER BANK 2 .
• Removing conduit from bank 1.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Loosen screws (1).
  • Slide conduit (2) downwards.
• Refer to REMOVING THE WIRING HARNESS FROM THE CYLINDER BANK 2 .
• Refer to REMOVING UPPER HEAT SHIELD .
• Refer to REMOVING CATALYTIC CONVERTER NEAR ENGINE UNDER CYLINDER BANK 1 .
• Refer to REMOVING THE CATALYTIC CONVERTER NEAR THE ENGINE AT BOTTOM OF CYLINDER BANK 2 .
• Refer to REMOVING THE HEAT SHIELDS .
• Refer to PARTIALLY LOOSENING THE PROP SHAFT .
• Refer to RELEASING THE FRONT PROP SHAFT ON THE FRONT AXLE TRANSMISSION .
• Refer to REMOVING AUTOMATIC TRANSMISSION (ALL-WHEEL DRIVE VEHICLE) (GA8HP75Z) .

• Replace clamps (arrows) of sound insulation on the right.

Parts:  Clamps

• Remount the sound insulation on the right.

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace clamps (arrows) of sound insulation on the left.

Parts:  Clamps

• Remount the sound insulation on the left.

Courtesy of BMW OF NORTH AMERICA, INC.

• Disassemble transportation retainers.
• Remount all cable clips.
• Remount all seal plugs.
• Remount protective cap on output shaft.
• Remount transfer box.
• Make note of transmission identification (see applicable BMW Group parts catalogue and nameplate).

Follow-up work

• Refer to INSTALLING AUTOMATIC TRANSMISSION (ALL-WHEEL DRIVE VEHICLE) (GA8HP75Z) .
• Refer to INSTALLING FRONT PROPELLER SHAFT AT THE FRONT AXLE TRANSMISSION .
• Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
• Refer to INSTALLING THE HEAT SHIELDS .
• Refer to INSTALLING THE CATALYTIC CONVERTER NEAR ENGINE, BOTTOM AT BANK 2 .
• Refer to INSTALLING THE CATALYTIC CONVERTER NEAR ENGINE, BOTTOM AT BANK 1 .
• Refer to INSTALLING HEAT SHIELD, TOP .
• Installing conduit on bank 2

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Clip the wiring harness (2) into the clamps (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Position the wiring harness.
  • Tighten down screws (1).
    TIGHTENING TORQUES



    Cable duct
    M6x16 screw	Tightening torque	10Nm

• Installing cable duct at cylinder bank 1.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Position the conduit (2).
  • Tighten the screws (1).
  TIGHTENING TORQUES



  Cable duct
  M6x16 screw	Tightening torque	10Nm

• Refer to INSTALLING THE OXYGEN SENSOR MONITOR OF CYLINDER BANK 1 .
• Refer to CHECKING THE POSITION OF THE HEAT SHIELD .
• Refer to INSTALLING THE EXPANSION TANK FOR THE CHARGE AIR COOLER .
• Refer to INSTALLING COOLANT EXPANSION TANK .
• Refer to INSTALLING HOLDER OF THE DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
• Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 5 TO 8 .
• Refer to INSTALLING THE OXYGEN SENSOR MONITOR OF CYLINDER BANK 2 .
• Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 1 TO 4 .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
• Installing the cover panel of the master DME control unit.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Position the cover of the master DME control unit (1).
  • Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Installing the rear right engine compartment cover.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Remove the battery cover  .

  NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
  • Remove the special tool 2 452 007  from the battery.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Install the cover (2).
  • Lock the lock (1).
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING EXHAUST SYSTEM .

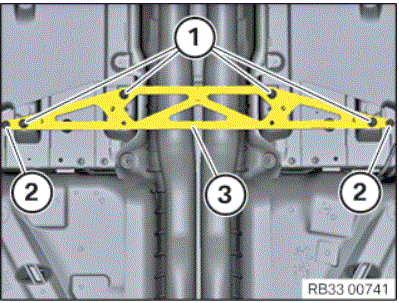

• Installing the rear tunnel connecting support.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Position the connecting support (3) on the rear of the tunnel.
  • Tighten the screws (1).
    TIGHTENING TORQUES



    Rear connecting support tunnel to body
    M8x30	Snug torque Angle of rotation	28Nm 90°

  • Tighten screws (2).
    TIGHTENING TORQUES



    Undershield
    Hexagon screw	tightening torque	2.6Nm
    Plastic nut	tightening torque	2.6Nm

• Refer to INSTALLING THE REINFORCEMENT STRUT .
• Refer to INSTALLING UNDERSHIELD ON THE FUEL TANK ON THE RIGHT .
• Refer to INSTALLING THE UNDERSHIELD ON THE LEFT FUEL TANK .
• Refer to CONNECTING BATTERY GROUND LEAD .
• Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE REAR DIFFUSER .
• Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
