Checking engine oil pressure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: 00... RAISING THE VEHICLE USING A VEHICLE LIFT .

WARNING: Hot fluids.
Risk of scalding!

Conduct all work in the vehicle wearing appropriate personal protective equipment only.

Preliminary work

Refer to REMOVING OIL FILTER .

Preparing the oil pressure check.

CAUTION: TECHNICAL INFORMATION

Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Courtesy of BMW OF NORTH AMERICA, INC.

Pull the oil filter element (3) out of the oil filter housing (1).

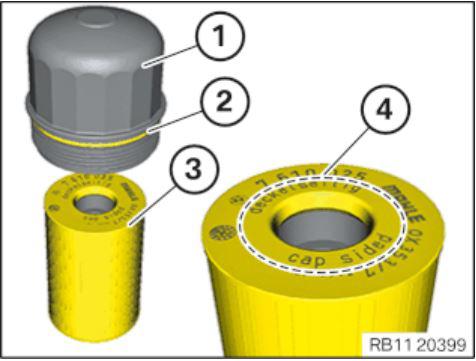

Observe the installation position (3) when inserting the oil filter element (3) into the special tool 2 209 377 (11 7 4470) (1).
Coat the sealing ring (2) with engine oil.
The oil filter element (3) must engage audibly.

Installing the oil filter with the adapter

Courtesy of BMW OF NORTH AMERICA, INC.

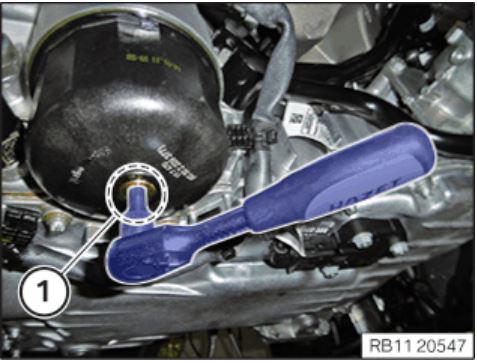

Position the special tool (adapter) 2 209 377 (11 7 470) with the oil filter and screw it in a few threads by hand.

Tighten the special tool 2 209 377 (11 7 470) with the special tool 2 455 965 (1) .

TIGHTENING TORQUES

Oil filter housing / special tool
S88.5 x3	Joining torque	40Nm
	Release oil filter housing / special tool	180°
	tightening torque	40Nm

Courtesy of BMW OF NORTH AMERICA, INC.

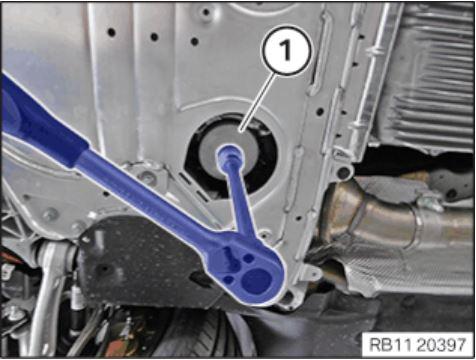

Release and remove the oil drain plug (1).

TIGHTENING TORQUES

Special tool 117470
Special tool	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in the special tool 0 496 820 (11 7 430) (1) in the special tool 2 209 377 (11 7 470) and tighten.

TIGHTENING TORQUES

Special tool 117430
Special tool	Tightening torque	10 Nm

Screw the special tool 0 496 623 (11 4 310) (2) into the special tool 0 496 820 (11 7 430) (1) and tighten.

TIGHTENING TORQUES

Special tool 114310
Special tool	Tightening torque	15 Nm

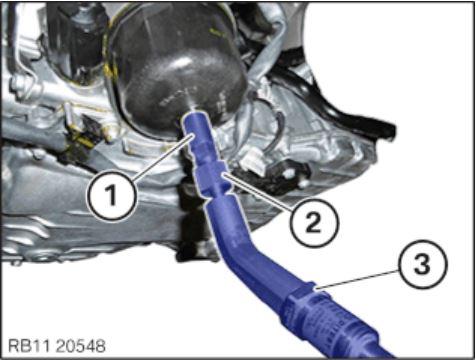

Screw the Integrated Measurement Interface Box (IMIB) 100 bar sensor (3) into the special tool 0 496 623 (11 4 310) (2) and hand-tighten.

Refer to CHECKING ENGINE OIL LEVEL .

Carrying out the process for oil pressure control

Perform the procedure with the diagnostic system:
- Vehicle handling
- Troubleshooting
- Function structure
- Power train
- Engine electronics
- Oil-pressure control
- Measure oil pressure

Follow-up work

Refer to REMOVING THE SPECIAL TOOL FOR THE OIL PRESSURE CHECK .
Refer to INSTALLING THE OIL FILTER .
Refer to CHECKING ENGINE OIL LEVEL .
