Remove the special tool for the oil pressure check
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

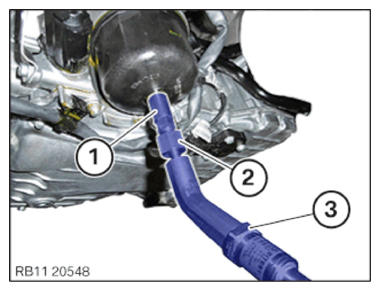

- Release the Integrated Measurement Interface Box (IMIB) 100 bar sensor (3) from the special tool 0 496 623 (11 4 310) (2) and remove it.
- Loosen and remove the special tool from the special tool 0 496 623 (11 4 310) (2) from the special tool 0 496 820 (11 7 430) (1).
- Loosen and remove the special tool from the special tool 0 496 820 (11 7 430) (1) from the special tool 2 209 377 (11 7 470)
.

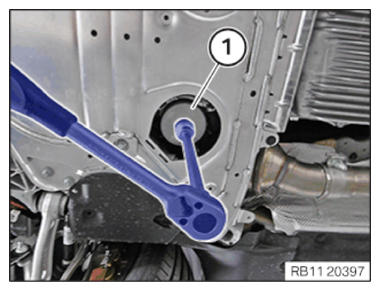

- Tighten oil drain plug (1).
TIGHTENING TORQUES SPECIFICATION
| Special tool 117470 | ||
| Special tool | Tightening torque | 10 Nm |
Remove the adapter of the oil filter

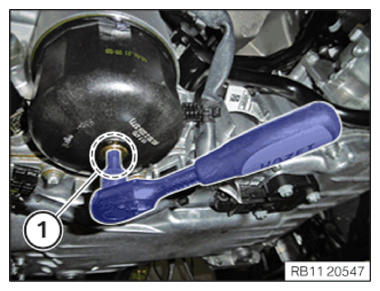

- Fit the special tool 2 455 965 (1) on the special tool 2 209 377 (11 7 470) .
- Release special tool 2 209 377 (11 7 470) .
- Remove the special tool 2 209 377 (11 7 470) with filter.

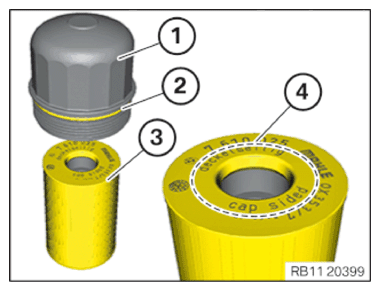

- Pull the oil filter element (3) out of the special tool 2 209 377 (11 7 470) (1) and dispose of it.
- Disassemble the sealing ring (2) from the oil filter housing (1) with a screwdriver.
- Replace the oil filter with sealing ring.
Parts: Sealing ring, oil filter
- Mount the sealing ring (2) in the groove on the oil filter housing.
- Coat the sealing ring (2) with engine oil.
- Observe the installation position (4) when inserting the oil filter element (3) into the oil filter housing (1).
- The oil filter element (3) must engage audibly.
