Install the interior antenna below the front center console
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

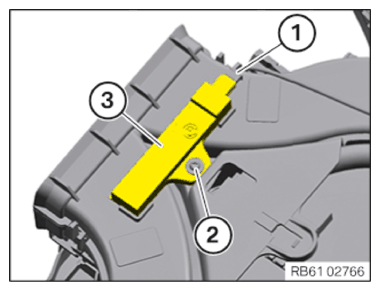

- Position interior antenna (3) .
- Tighten down screw (2) .
TIGHTENING TORQUES SPECIFICATION
| Interior aerial on front center console | ||
|---|---|---|
| screw | Tightening torque | 2.3 Nm |
- Connect plug (1) .
Follow-up work
- Refer to INSTALLING THE CENTER CONSOLE .
- Refer to INSTALLING THE FOOTWELL TRIM PANEL ON THE RIGHT .
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to INSTALLING THE CUP HOLDER .
- Refer to INSTALLING THE CENTER CONSOLE TRIM .
- Refer to INSTALLING FRONT STORAGE COMPARTMENT TRIM .
- Refer to INSTALLING THE CENTER ARMREST .
- Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to INSTALLING THE REAR VENTILATION GRILLE .
- Refer to INSTALLING THE VENTILATION GRILLE IN THE REAR (AIR CONDITIONING SYSTEM WITH 4-ZONE CONTROL) .
- Refer to INSTALLING THE CONTROL PANEL OF THE REAR PASSENGER COMPARTMENT AIR CONDITIONING (INTEGRATED AUTOMATIC CLIMATE CONTROL WITH 4-ZONE CONTROL) .
- Refer to CONNECTING BATTERY GROUND LEAD .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
