Installing the button for the heated steering wheel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

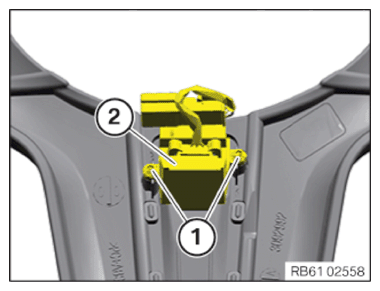

- Position the button (2) and tighten the screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Steering wheel heating button to the decorative trim/cover | ||
|---|---|---|
| tightening torque | 2 Nm | |
Follow-up work
- Refer to INSTALLING THE DECORATIVE TRIM FOR THE M LEATHER STEERING WHEEL (SA710) .
- Refer to IF INSTALLED: INSTALLING THE SHIFT PADDLE FOR THE AUTOMATIC TRANSMISSION .
- Refer to INSTALLING AIRBAG UNIT OF THE M SPORTS STEERING WHEEL .
- Refer to CONNECTING BATTERY GROUND LEAD .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
