Install the decorative trim for the M leather steering wheel (SA710)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

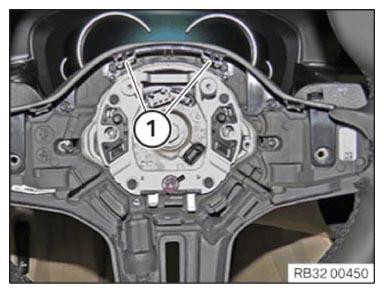

Check the detents (1) .
The detents (1) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

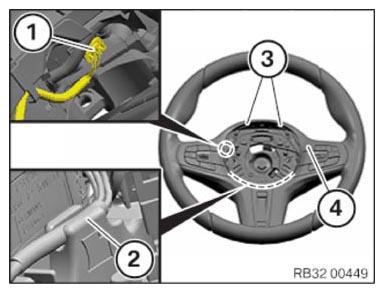

For vehicles with heated steering wheels or contact detection:
Connect connector.
Carefully clip in the decorative trim (4) at the detents (3) .
Insert the cables into the cable clips (2) .
Connect connector (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

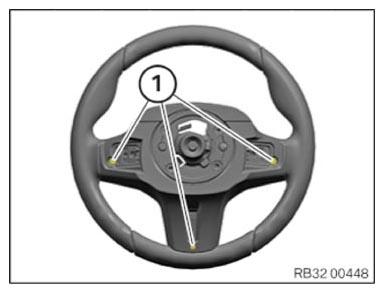

Tighten screws (1) on the rear of the M leather steering wheel.

TIGHTENING TORQUES SPECIFICATION

Steering wheel decorative trim
Screw TS5x12	tightening torque	1.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
