Install the front power distribution box
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

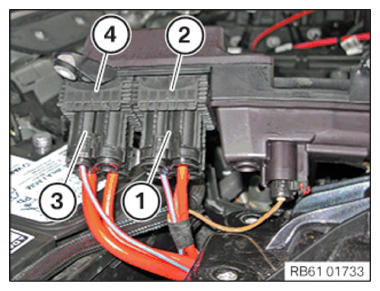

- Connect connector (1) and close the lock (2).
- Connect connector (3) and close the lock (4).

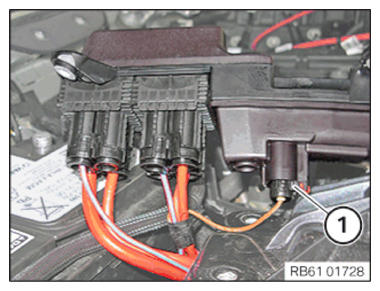

- Connect connectors (1) and lock.

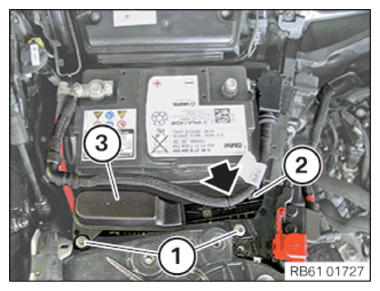

- Feed in the power distribution box (3) in a downwards direction.
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Front power distribution box | ||
|---|---|---|
| Screw TS4x16 | Tightening torque | 2.6 Nm |
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Front power distribution box | ||
|---|---|---|
| M8x35 screw | Tightening torque | 28 Nm |
- Fasten the cable clip (arrow).

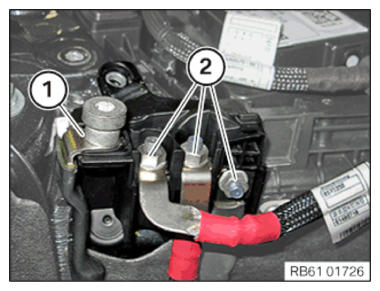

- Feed in the accompanying cable and tighten the nut (1).
TIGHTENING TORQUES SPECIFICATION
| Auxiliary terminal for jump starting | ||
|---|---|---|
| Flange nut M8 | tightening torque | 19 Nm |
- Feed in the accompanying cable and tighten the nut (2).
TIGHTENING TORQUES SPECIFICATION
| Positive battery cable | ||
|---|---|---|
| Positive pole screw | tightening torque | 15 Nm |
- Feed in the cover (1) in a downwards direction.
- Check the detents (2) are seated correctly.
- Feed in the power distribution box sealing frame (3) in a downwards direction.
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Front power distribution box sealing frame | ||
|---|---|---|
| Bolt RF5x25 | tightening torque | 2.5 Nm |
- Check that the detent (2) is fitted correctly.
Follow-up work
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Installing the rear right engine compartment cover.
Remove the battery cover .
NOTE: The following step(s) must be performed if the listed component(s) is/are installed.- Remove the special tool 2 452 007 from the battery.
- Install the cover (2).
- Lock the lock (1).
- Refer to CONNECTING BATTERY GROUND LEAD .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
