Installing the left external radiator
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

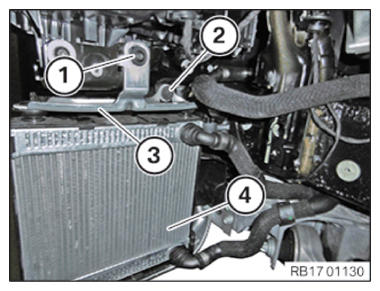

- Position the radiator (4) with the holder (3) in the rubber mounts diagonally downwards towards the front.
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Holder for upper external radiator | ||
| Screw | Tightening torque | 11.8 Nm |
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Holder for side external radiator | ||
| Screw | tightening torque | 3.5 Nm |

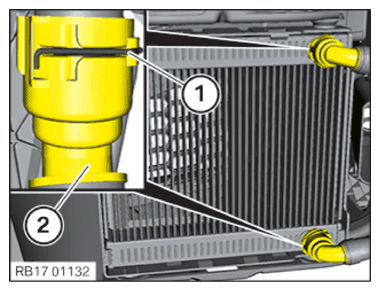

- Slide the coolant lines (2) forwards.
The retaining clips (1) must audibly engage.
If installed: Installing the crossmember

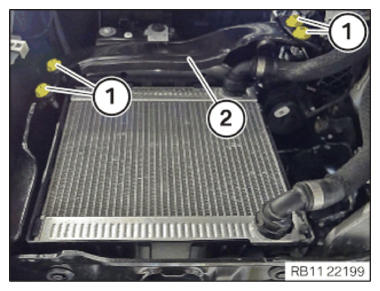

- Position the cross-member (2).
- Tighten down screws (1).
Follow-up work
- Refer to INSTALLING THE FRONT SECTION OF THE LEFT FRONT WHEEL ARCH COVER .
- Refer to INSTALLING THE FRONT LEFT BOTTOM WHEEL ARCH COVER .
- Refer to INSTALLING THE FRONT RIGHT WHEEL .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
