Install the front section of the left front wheel arch cover
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Installing the front section of the front wheel arch cover
NOTE:

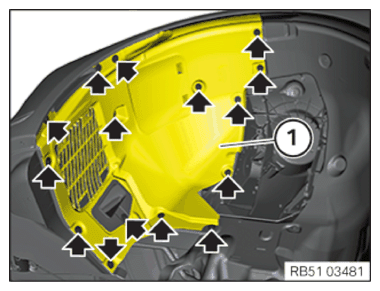

To provide a better overview: Schematic diagram with partially hidden components.
- Guide in the front section (1) of the front wheel arch cover.
- Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover | ||
| screw | Tightening torque | 3 Nm |
| Plastic nut | Tightening torque | 2.6 Nm |
