Installing the wheel guide joint
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

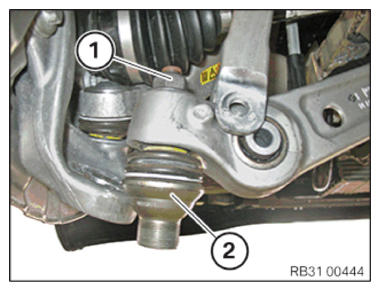

- Position the wheel guide joint (2).
- Replace nut (1).
Parts: Nut
- Tighten nut (1).
NOTE:
Counter-hold at the Torx socket.
TIGHTENING TORQUE SPECIFICATIONS
| Wheel control joint to wishbone | ||
| M16 Replace nut. | Joining torque Angle of rotation |
100 Nm 90° |
- Position the control arm (1) with the wheel guide joint (2) on the swivel bearing in the arrow direction.
- Replace nut (2).
Parts: Nut
- Tighten nut (2).
TIGHTENING TORQUE SPECIFICATIONS
| Wheel guide joint to swivel bearing | ||
| M30 Replace nut. | tightening torque | 380 Nm |
- Position spring strut holder on wishbone.
- Replace screw (2) and nut (1).
Parts: Bolt and nut
- Install the bolt (2).
- Tighten nut (1).
TIGHTENING TORQUE SPECIFICATIONS
| Bottom wishbone on spring strut holder | ||
| M14 Replace screw and nut. Tighten screw connection in NORMAL POSITION . |
Joining torque Angle of rotation |
165 Nm 90° |
Follow-up work
- Refer to FASTENING THE OUTPUT SHAFT ON THE WHEEL BEARING .
- Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL .
