Remove top wishbone
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to DETERMINING VARIANT OF THE WISHBONE .
- Refer to REMOVING FRONT RIGHT WHEEL .
- Removing the cover of the rear right engine compartment.
- Loosen the lock (1)
- Remove the cover (2).
Covering the vehicle battery
WARNING: Unprotected battery terminals. Risk of short circuits! Risk of fire!- Cover the vehicle battery
NOTE: The following step(s) must be performed if the listed component(s) is/are installed.- Cover the vehicle battery with the special tool 2 452 007 as shown.
- Refer to REMOVING THE RIGHT SIDE HOOD SEAL .
- Refer to DETACHING THE SPRING STRUT IN FRONT .
- Release nut (1) of the front screw connection of the upper wishbone on shock tower in engine compartment.
Support swivel bearing
- Secure special tool 2 358 630 to drive flange with lug bolts.
- Support the swivel bearing using the special tool 2 358 630 and the universal jack.

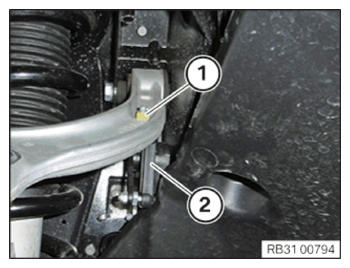

- Loosen nut (1).
- Detach ride height sensor (2) from the top wishbone.
- Loosen nut (1).
- Remove the screw (2).
- Detach upper wishbone (4) from swivel bearing (3).
- Loosen screw (1).
- Pull spring strut outwards slightly and remove screws (1) and (2).
- Remove top wishbone (3).
