Determining variant of the wishbone
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

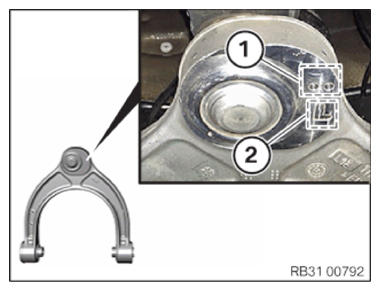

- Determine the variant of the wishbone using the punch marks in area (1)
.
- 1 punch mark = Positive wishbone camber correction
- 2 punch marks = Wishbone (standard part)
- 3 punch marks = Negative wishbone camber correction
- Ensure that the same wishbone variant is reinstalled on the left or right (2) .
- L = left
- R = right
