Remove top wishbone
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to DETERMINING VARIANT OF THE WISHBONE .
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE LATERAL HOOD SEAL .
- Refer to DETACHING THE SPRING STRUT IN FRONT .

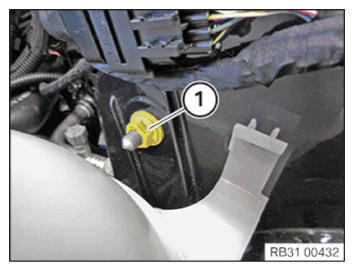

- Release nut (1) of the front screw connection of the upper wishbone on shock tower in engine compartment.
Support swivel bearing

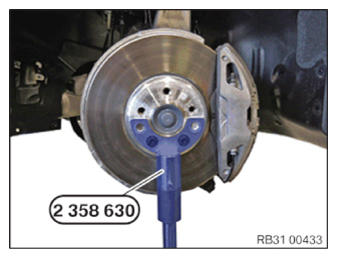

- Secure special tool 2 358 630 to drive flange with lug bolts.
- Support the swivel bearing using the special tool 2 358 630 and the universal jack.

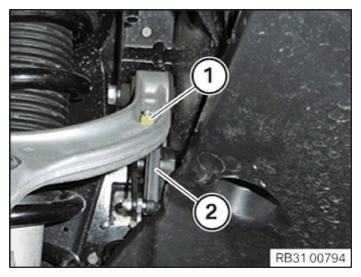

- Loosen nut (1).
- Detach ride height sensor (2) from the top wishbone.
- Loosen nut (1).
- Remove the screw (2).
- Detach upper wishbone (4) from swivel bearing (3).
- Loosen screw (1).

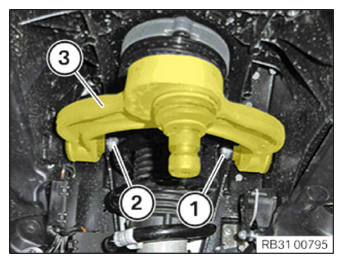

- Pull spring strut outwards slightly and remove screws (1) and (2).
- Remove top wishbone (3).
