63 99 431 Replacing light bulb(s) for ceiling light

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Follow instructions for handling light bulbs (interior lights), refer to 63 99... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Version With Inside Reading Lamps:

Remove complete ceiling light (with inside reading lamps). See 63 31 000 Removing and installing/replacing complete ceiling light

Turn socket housing for bulb counterclockwise and remove.

Remove bulb.

NOTE:

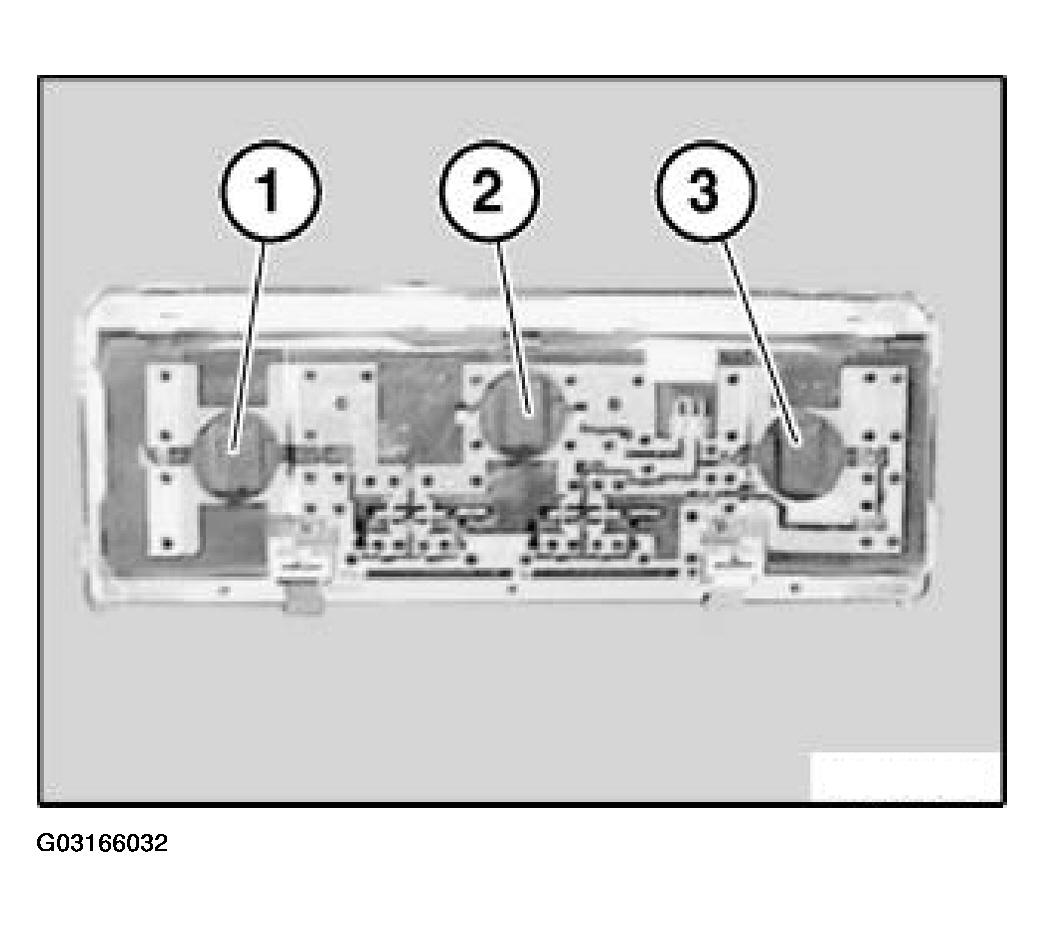

Socket housing for left inside reading lamp.
Socket housing for ceiling light.
Socket housing for right inside reading lamp.

Fig 1: Identifying Socket Housing For Left Inside Reading Lamp, Socket Housing For Ceiling Light And Socket Housing For Right Inside Reading Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

Version Without Inside Reading Lamps:

Remove complete ceiling light (without inside reading lamps).

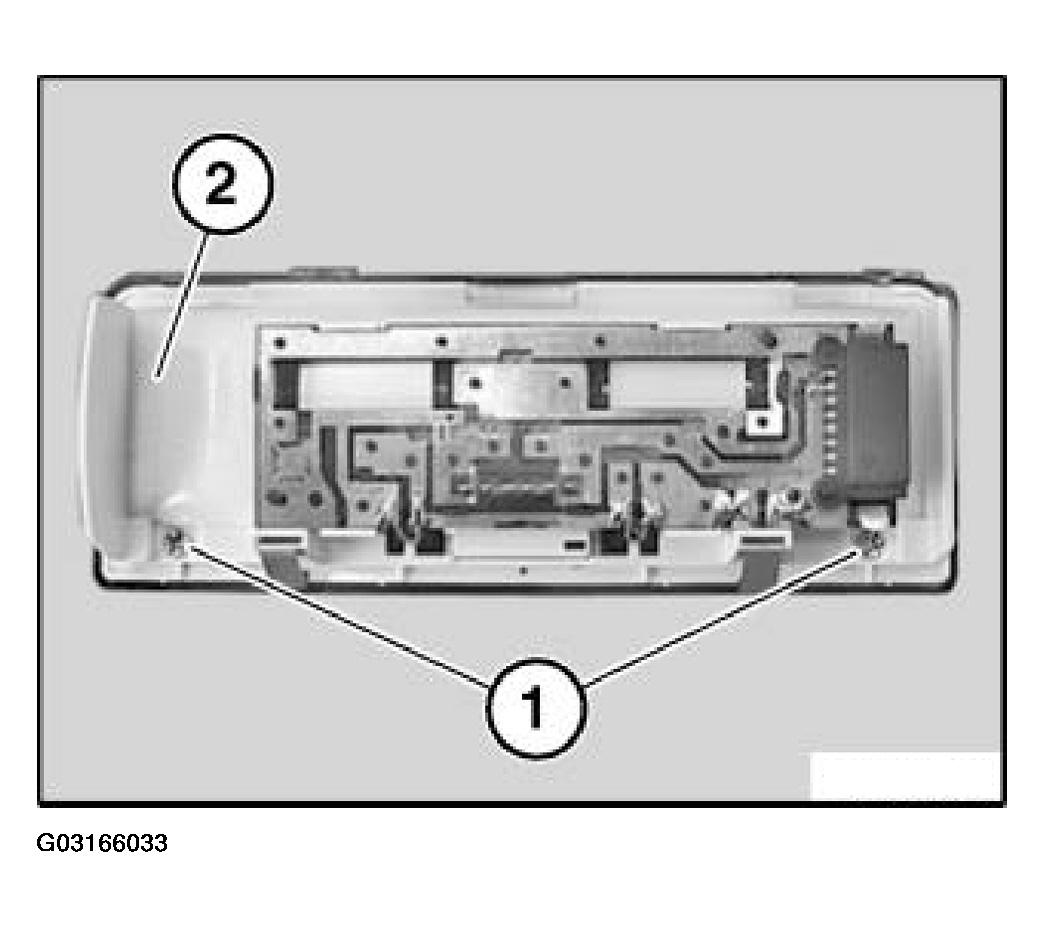

Loosen screws (1).

Remove ceiling light (2) from lens underneath.

Fig 2: Removing Ceiling Light (2) From Lens Underneath

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bulb(s).
