63 31 000 Removing and installing/replacing complete ceiling light

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Secure complete ceiling light against falling out.

Version With Inside Reading Lamps:

Lever out complete ceiling light (1) in direction of arrow.

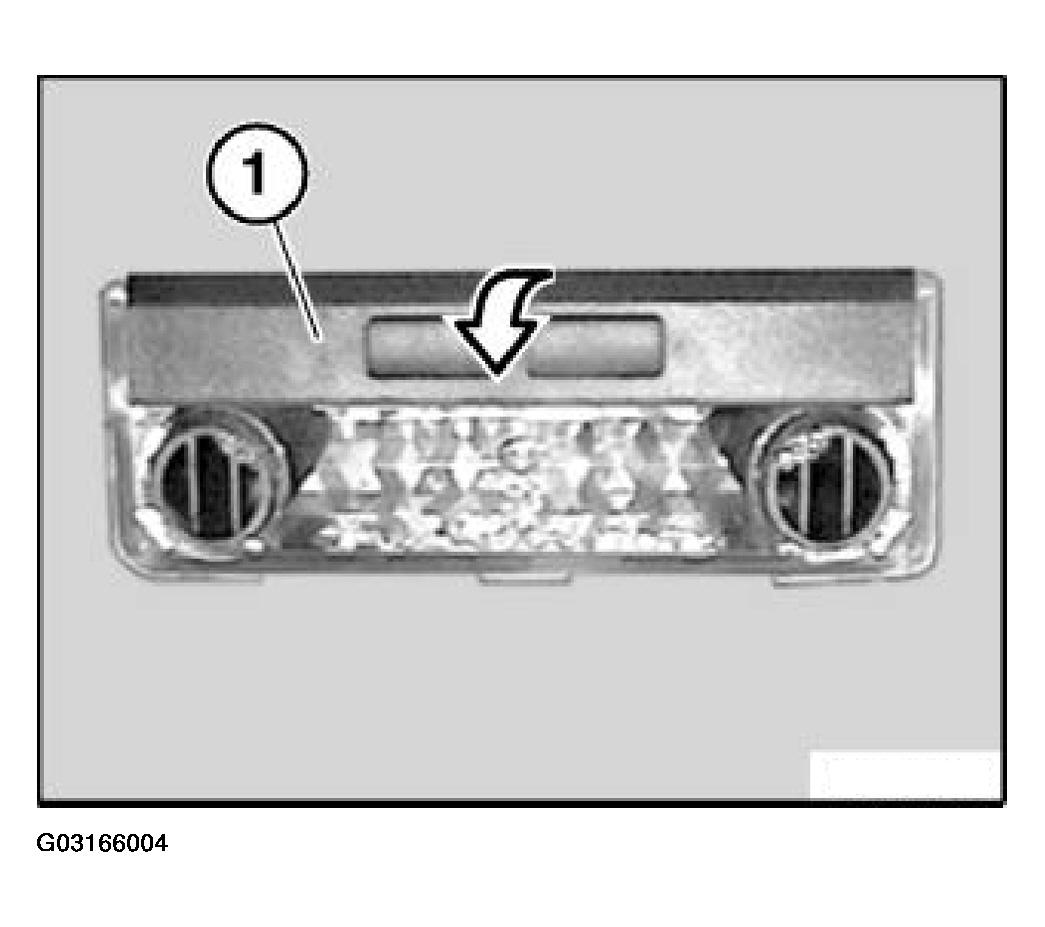

Fig 1: Levering Out Complete Ceiling Light In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection underneath and remove complete ceiling light (1).

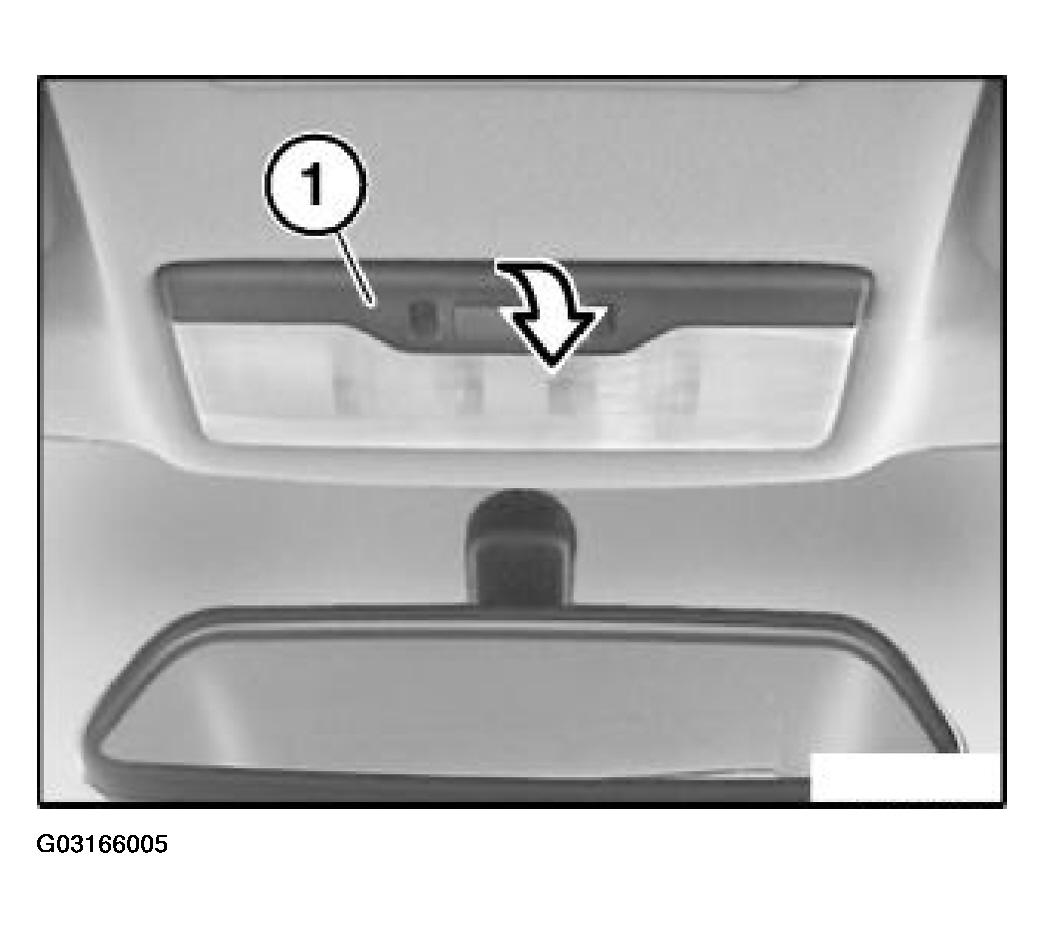

Fig 2: Levering Out Complete Ceiling Light

Courtesy of BMW OF NORTH AMERICA, INC.

Version Without Inside Reading Lamps:

Lever out complete ceiling light (1) in direction of arrow.

Disconnect plug connection underneath and remove complete ceiling light (1).
