63 10 004 Adjusting headlights

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

Observe test preconditions for headlight adjustment, refer to 63 10 ADJUSTING HEADLIGHT FOR RHD/LHD VEHICLES Test precondition.

Adjust headlights by turning adjusting screws (1) and (2).

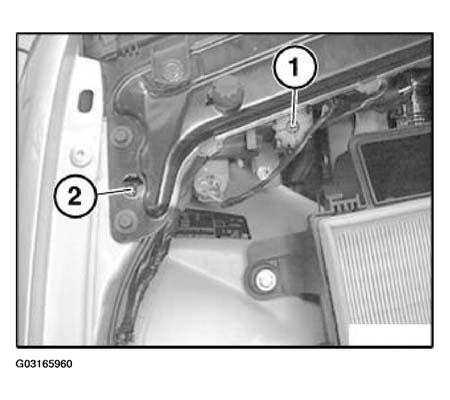

Fig 1: Adjusting Headlights By Turning Adjusting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

A definite allocation of adjusting screws is not possible. Both directions are always adjusted differently.

Adjustment screw primarily for vertical adjustment.
Adjustment screw primarily for lateral adjustment.
