63 10 Adjusting headlight for RHD/LHD vehicles

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

When crossing borders into countries where they drive on the other side of the road from that where the car was registered, it is essential to cover the asymmetrical wedge in the low beam headlight.

The following illustrations show the covered areas in question.

NOTE: Any adhesive residue may only be removed with the supplied cleaning cloth.

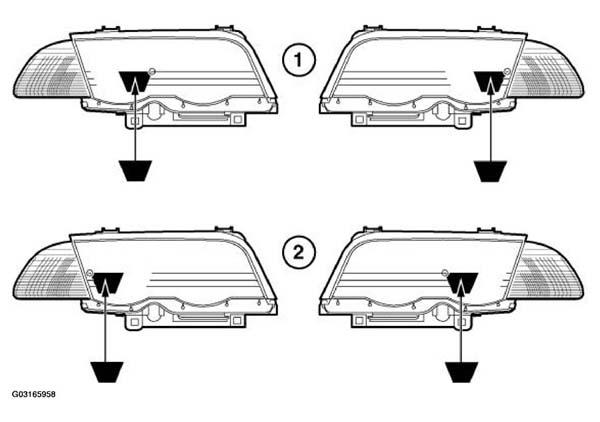

Fig 1: Identifying Headlights On A Left-Hand-Drive (1) And Car Right-Hand-Drive Car (2)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: On cars fitted with xenon lights, it is not necessary to tape off the lights as they have their own adjustment facility; refer to the Owner's Manual.
