61 31 057 Removing and installing switch unit in center console
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Version With SMG Transmission Only:
Remove trim for storage tray. See 51 16... REMOVING AND INSTALLING/REPLACING INSERT IN STORAGE TRAY
Version With Automatic Transmission Only:
Remove finisher for preselector lever. See 51 16 210 REMOVING AND INSTALLING / REPLACING FINISHER FOR PRESELECTOR LEVER
All:
Remove trim for center console. See 51 16 200 REMOVING AND INSTALLING STORAGE TRAY
Remove insert in function carrier. See 51 16... REMOVING AND INSTALLING/REPLACING CARRIER IN STORAGE TRAY
In version with on-board monitor, remove heater controls.

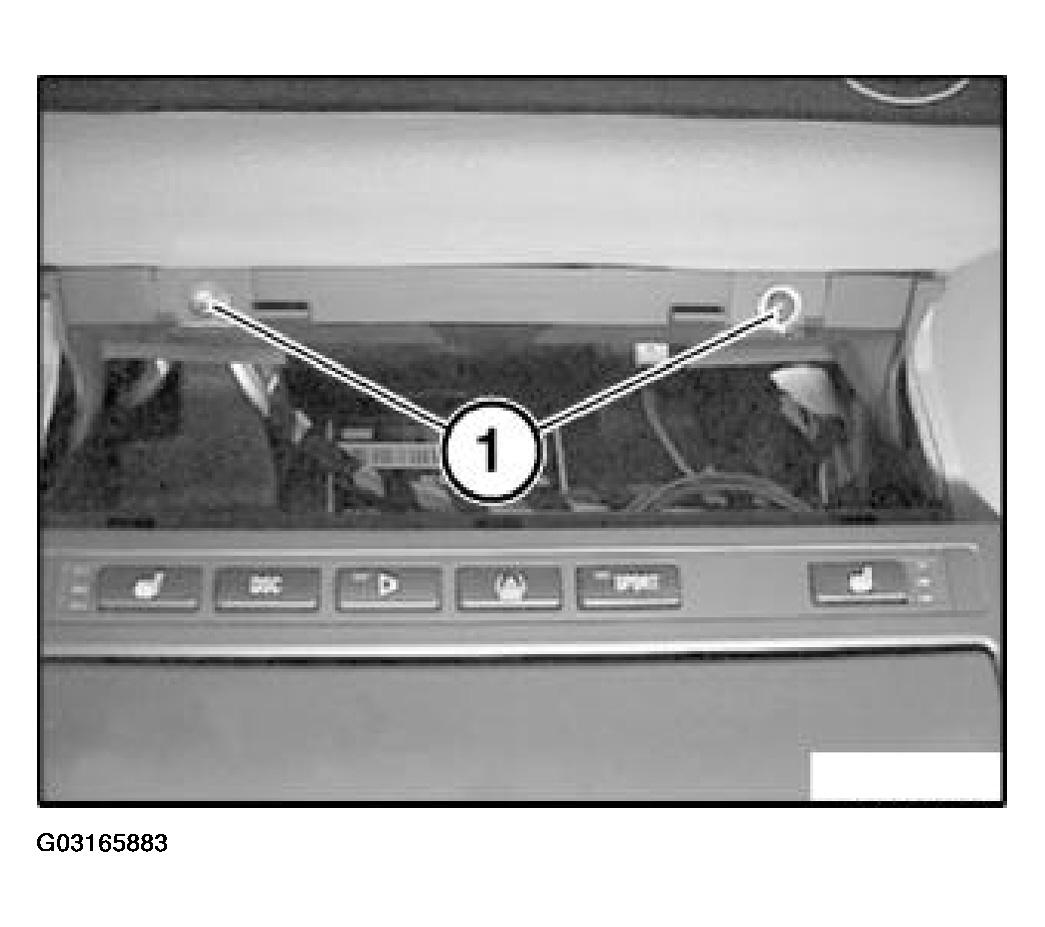

Loosen screws (1).

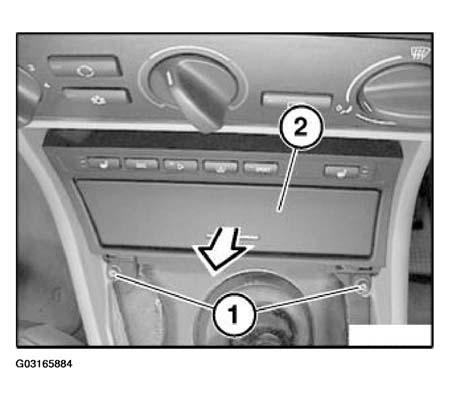

Loosen screws (1).
Pull out function carrier for switch center (2) in direction of arrow.

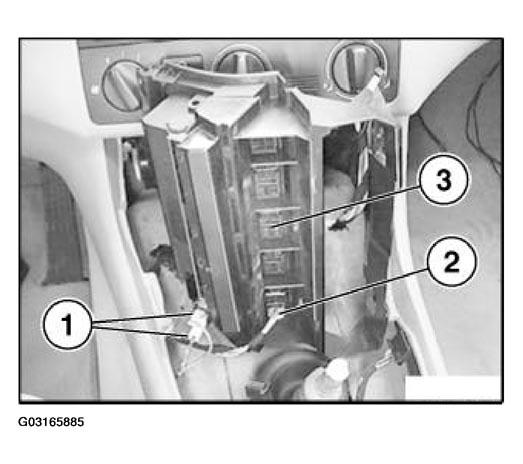

Disconnect plug connections (1) and (2) and remove function carrier for switch center (3).
