51 16... Removing and installing/replacing insert in storage tray

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Removal:

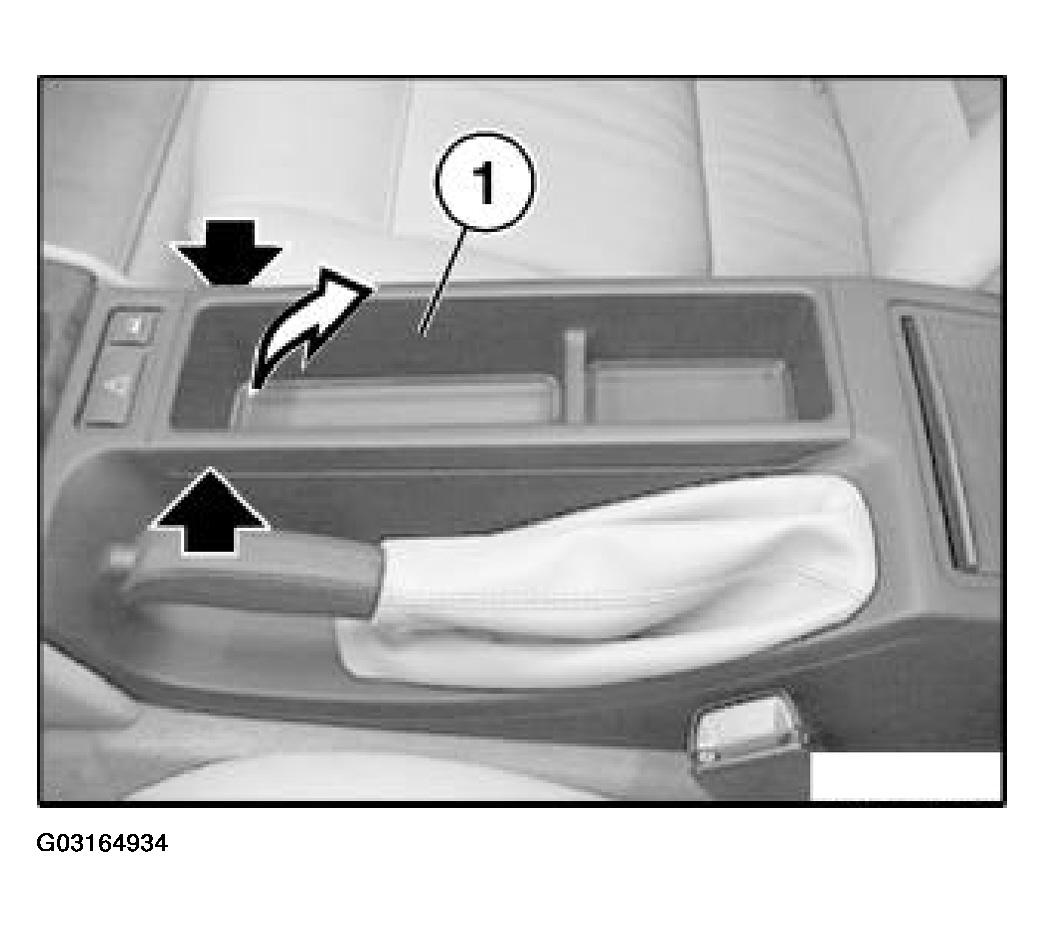

Press together insert (1) at front on sides and remove towards top.

Fig 1: Pressing Together Insert At Front On Sides

G03164934

Courtesy of BMW OF NORTH AMERICA, INC.

Insert (1) is now unlocked from supports (2).

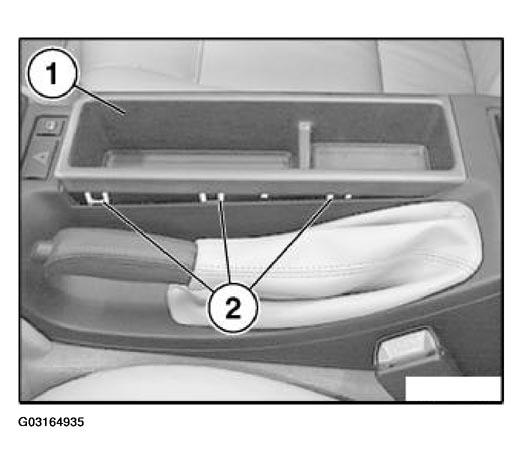

Remove insert (1) towards front/top.

Fig 2: Inserting Towards Front/Top

G03164935

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

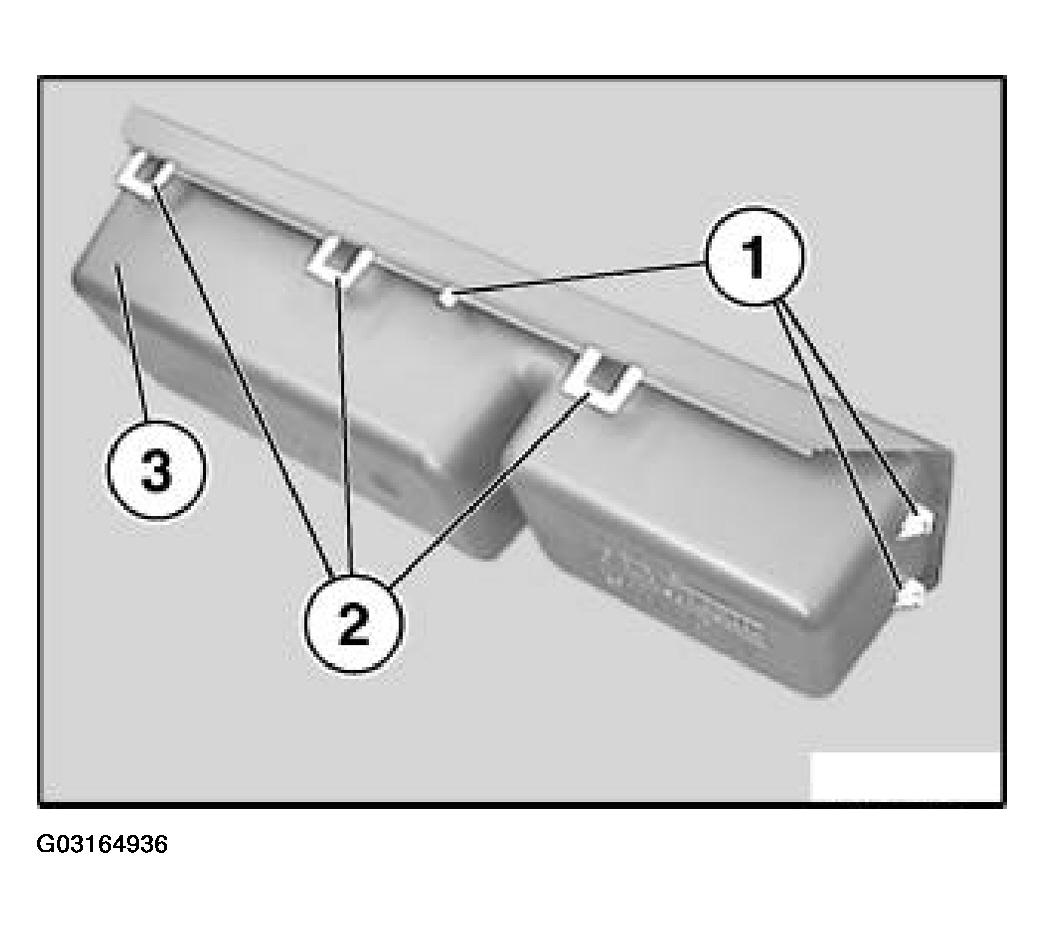

Guides (1) and supports (2) on left/right on insert (3) must not be damaged.

Fig 3: Identifying Guides And Supports On Left/Right

G03164936

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

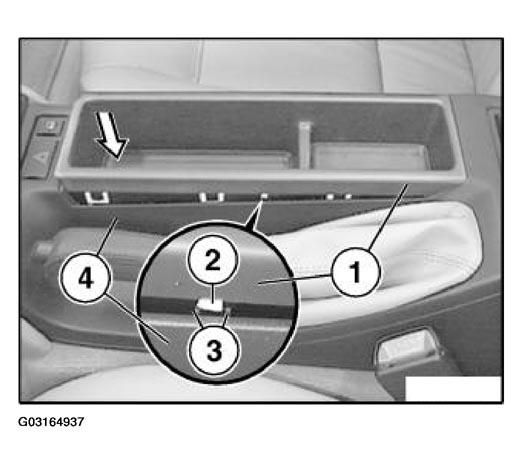

Install insert (1) at rear in center console (4).

Guide (2) must be positioned between supports (3) of center console (4), insert (1) can now be snapped towards bottom into place.

Fig 4: Installing Insert At Rear In Center Console

G03164937

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

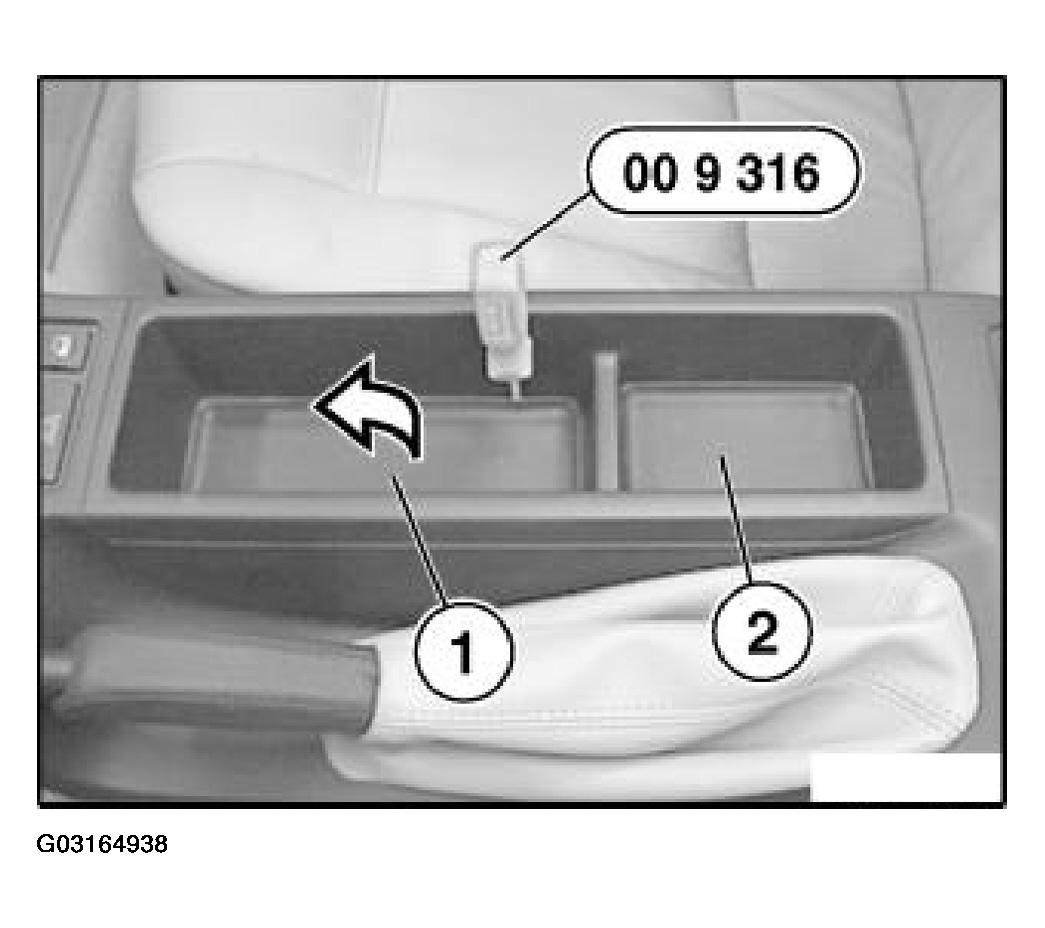

If necessary, remove rubber trays (1) and (2) with special tool 00 9 316 (sealing lip wedge).

Fig 5: Removing Rubber Trays With Special Tool 00 9 316

G03164938

Courtesy of BMW OF NORTH AMERICA, INC.
