84 31 020 Removing and installing/replacing hands-free system speaker
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Remove trim for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

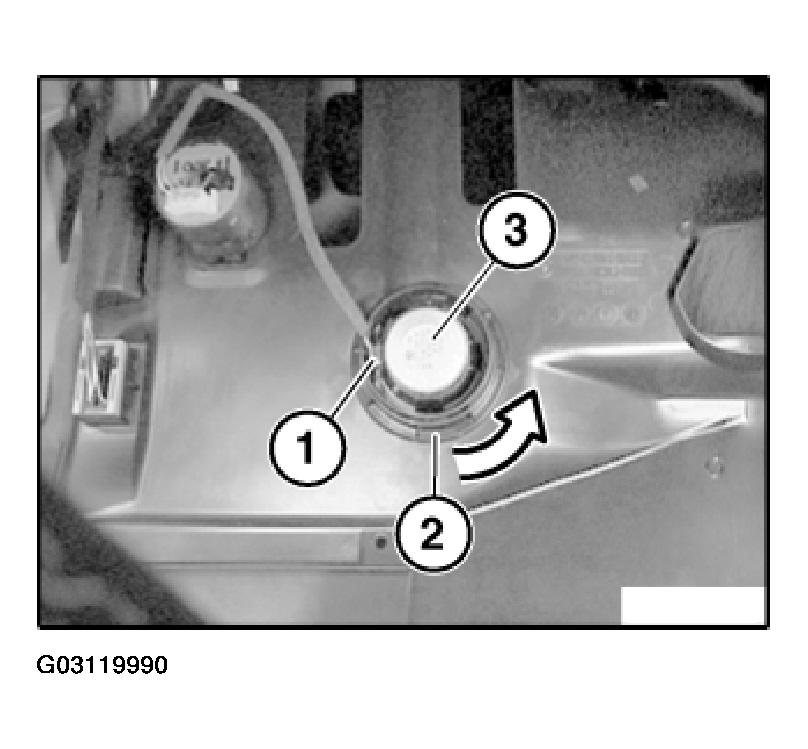

Disconnect plug connection (1).
Screw off threaded ring for speaker (2) in direction of arrow and remove hands-free system speaker (3) towards bottom.
Installation:

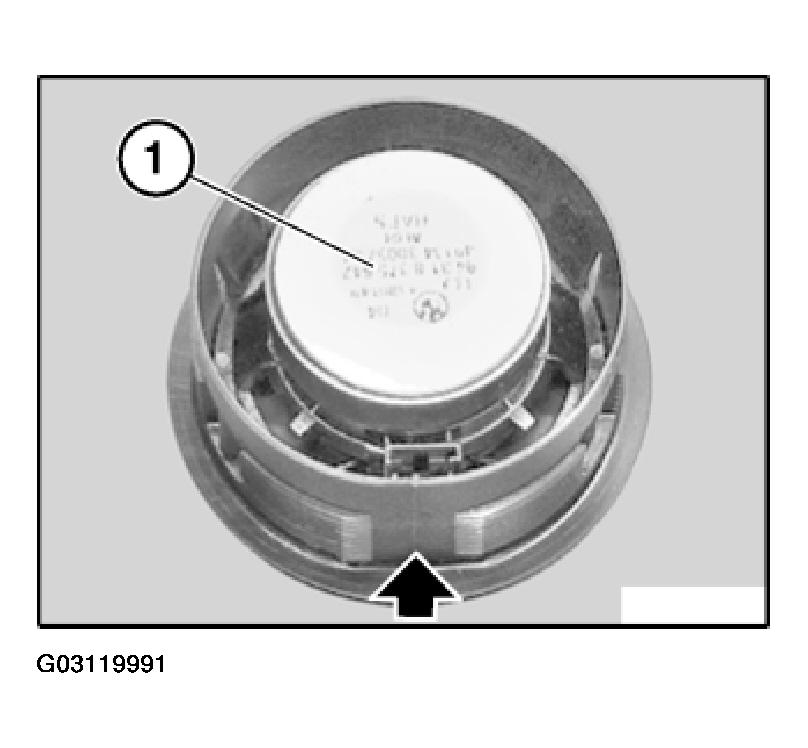

Make sure hands-free system speaker (1) is correctly positioned in panel for pedal assembly.
