51 45 185 Removing And Installing/Replacing Trim For Pedal Assembly

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Move steering column upwards to max. possible position.

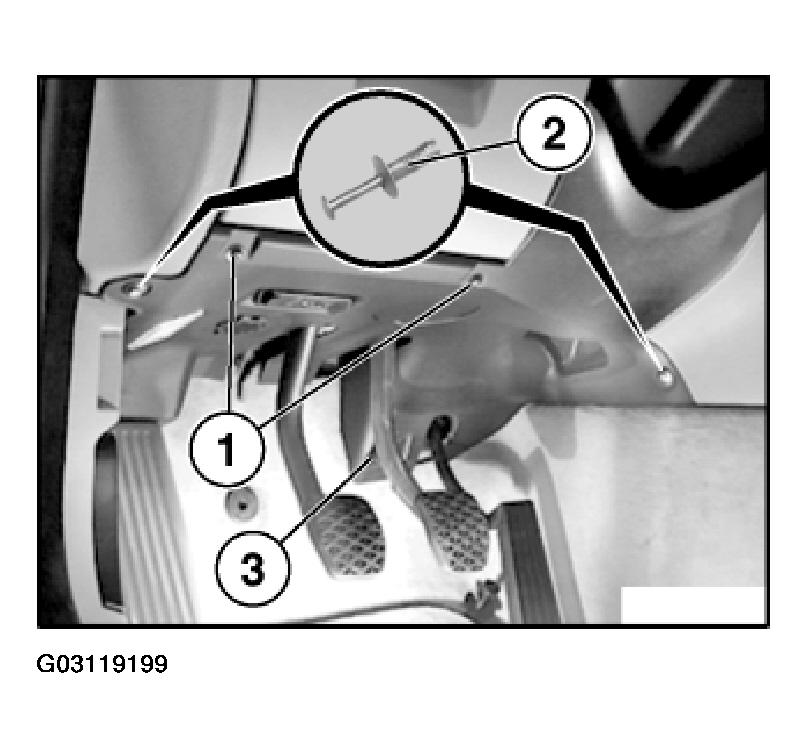

Release screws (1) and expansion rivets (2).

Unlock rotary clip (3) (turn through 90°).

Fig 1: Locating Screws And Expansion Rivets

G03119199

Courtesy of BMW OF NORTH AMERICA, INC.

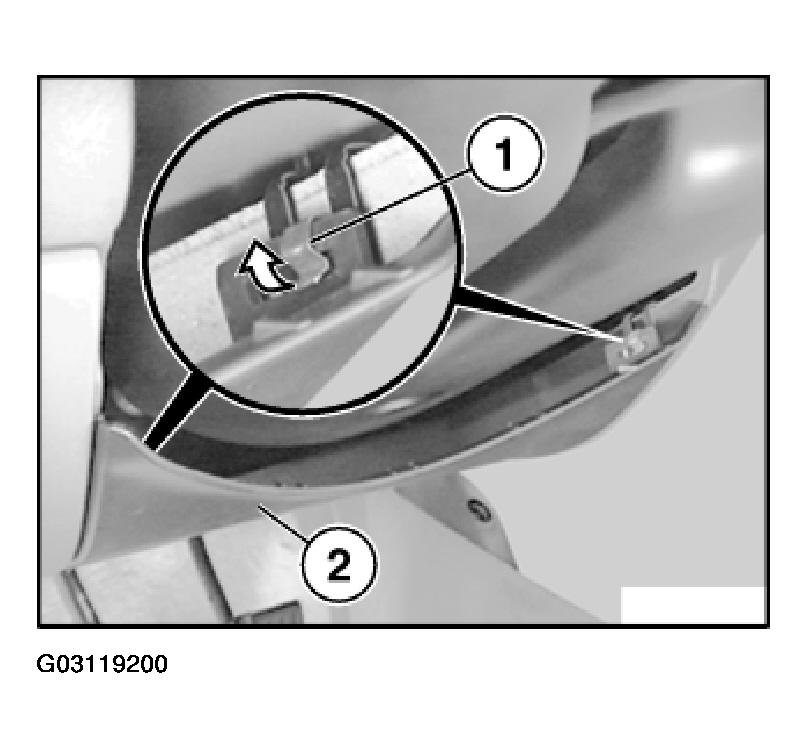

Unlock left/right retaining clips (1) and fold trim (2) down.

Fig 2: Identifying Left/Right Retaining Clips

G03119200

Courtesy of BMW OF NORTH AMERICA, INC.

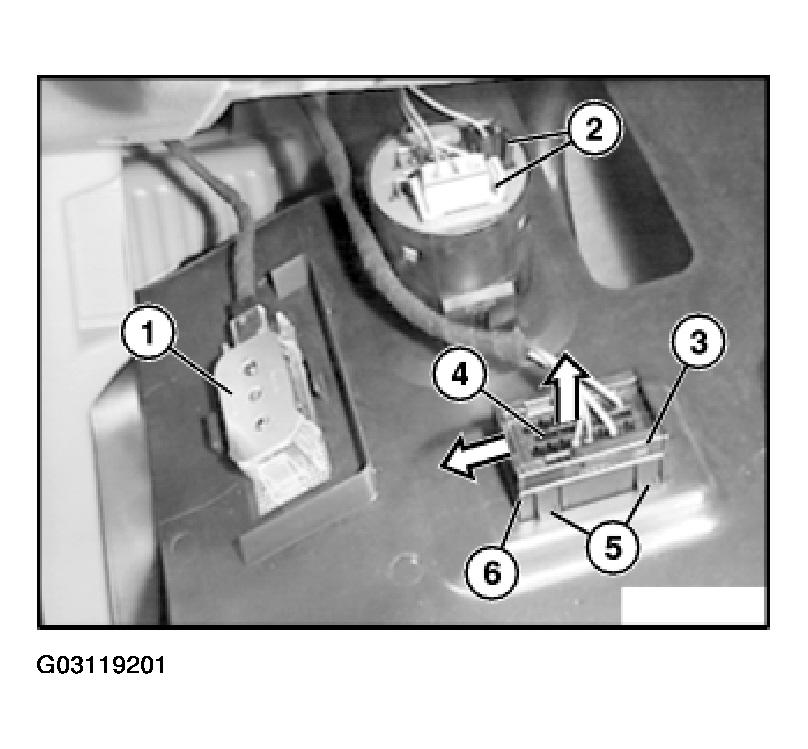

Remove and feed out footwell light (1).

Disconnect plug connection (2) from gong.

Release lock (3) and press out plug (4) through opened OBD socket.

Replacement only:

Release locks (5) and remove OBD socket (6).

OBD = on-board diagnosis.

Fig 3: Disconnecting Plug Connection From Gong

G03119201

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

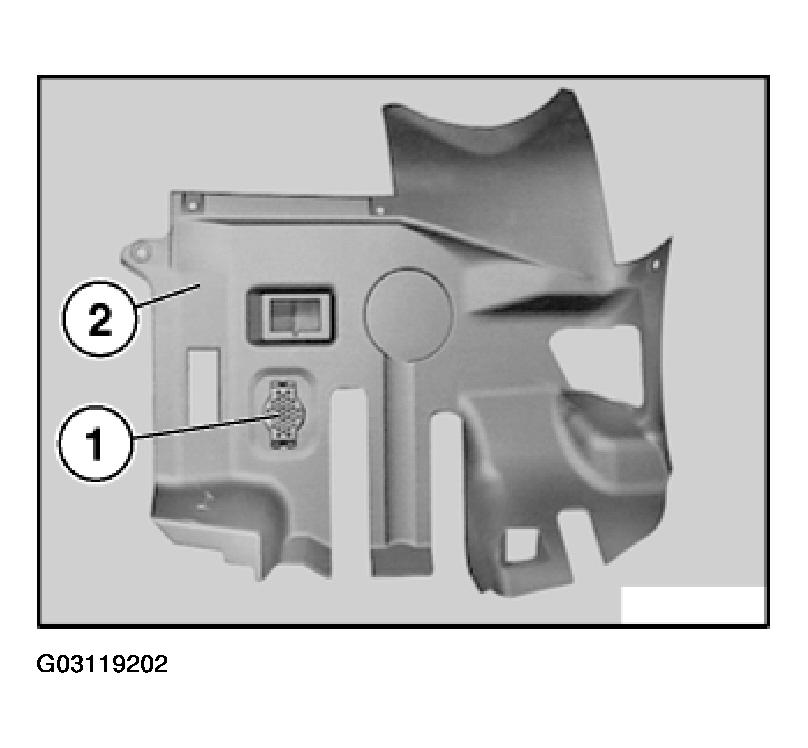

Unlock gong (1) and remove from trim (2).

Fig 4: Locating Gong In Trim

G03119202

Courtesy of BMW OF NORTH AMERICA, INC.
