67 11 555 Removing and installing/replacing servodrive for tank filler flap

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Saloon/Sedan, Coupe:

Remove right luggage compartment wheel arch trim in rear area. Refer to 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT TRUNK WHEEL ARCH TRIM .

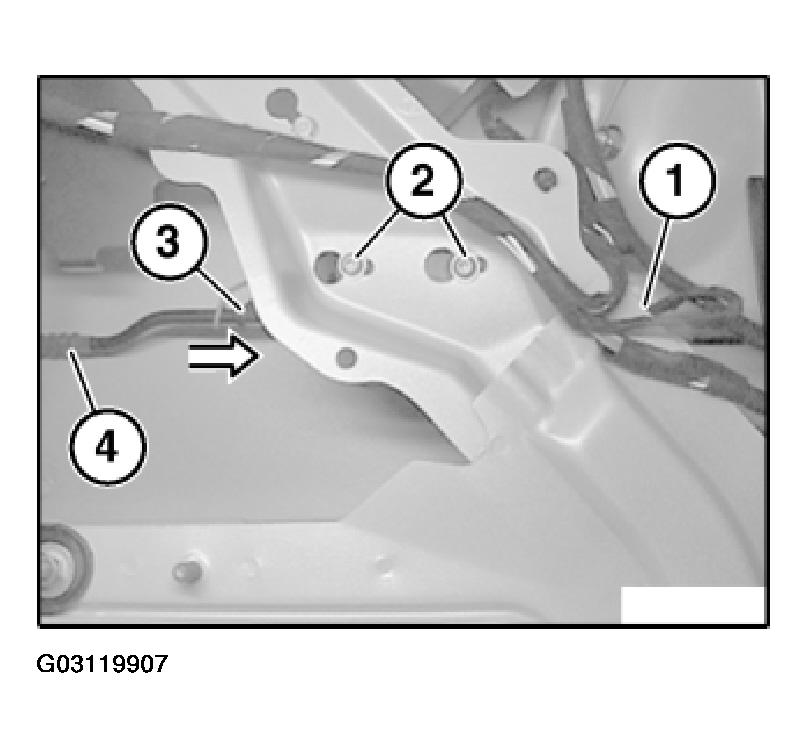

Unlock plug connection (1) and disconnect.

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws (2).

Feed out servodrive for tank filler flap (3) towards rear and pull in direction of arrow out of gaiter (4).

touring:

Remove flap in right luggage compartment wheel arch trim.

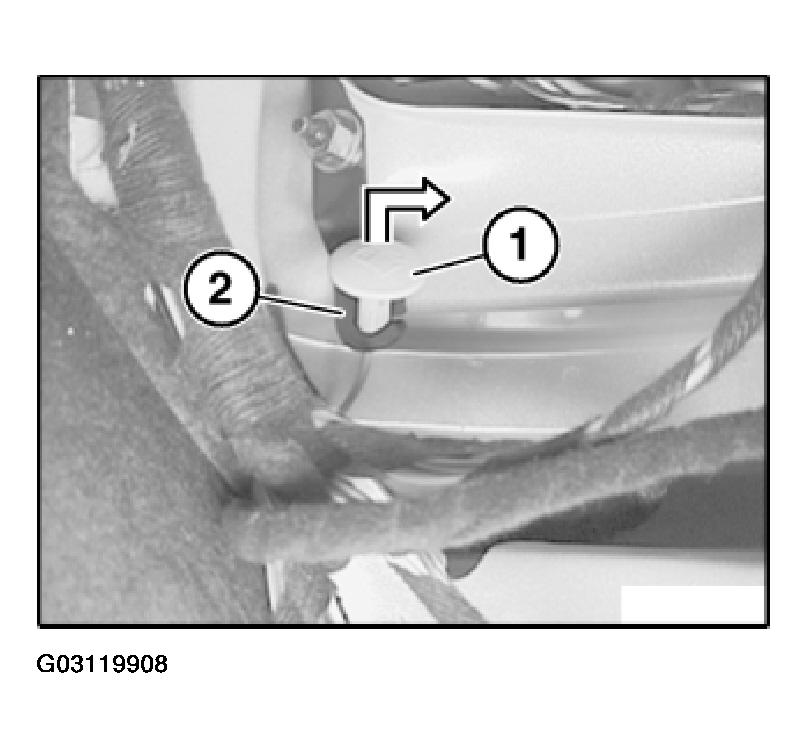

Unhook pull strap for emergency actuator (1) in direction of arrow from guide (2).

Fig 2: Identifying Emergency Actuator And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fluid reservoir for rear window washer system and place to one side.

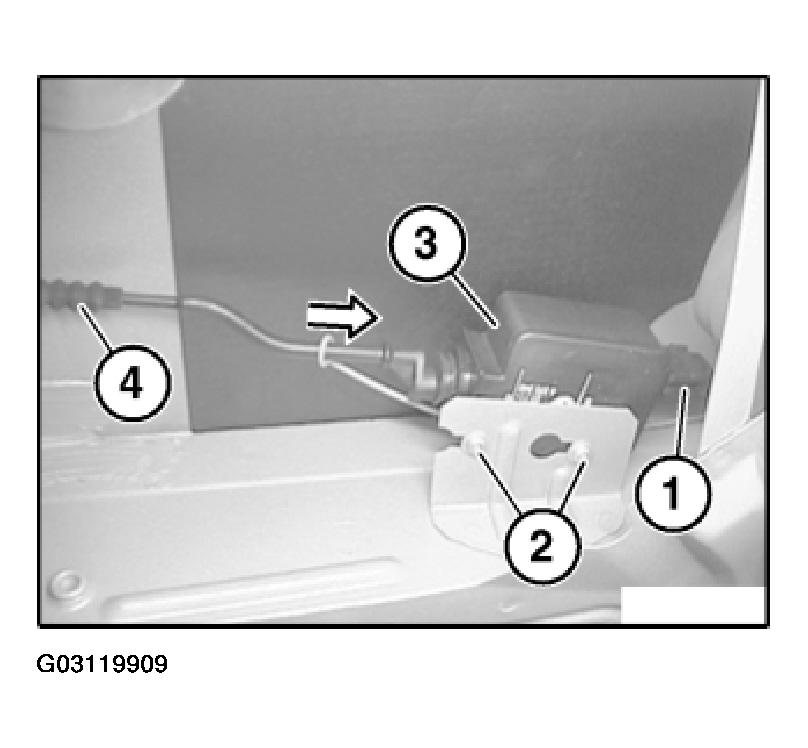

Unlock plug connection (1) and disconnect.

Fig 3: Removing Servodrive For Tank Filler Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws (2).

Feed out servodrive for tank filler flap (3) towards rear and pull in direction of arrow out of gaiter (4).

compact:

Disconnect emergency actuator for tank cap. Refer to 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT TRUNK WHEEL ARCH TRIM .

Fold down sound insulation.

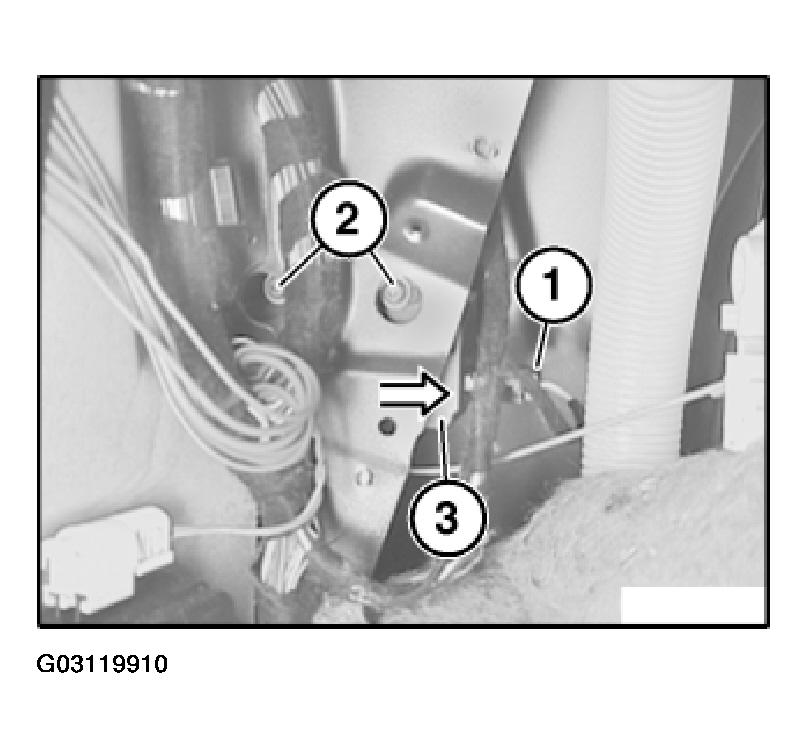

Unlock plug connection (1) and disconnect.

Slacken screws (2).

Feed out servodrive for tank filler flap (3) towards rear and pull out in direction of arrow.

Fig 4: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Convertible:

Removing right luggage compartment wheel arch trim.

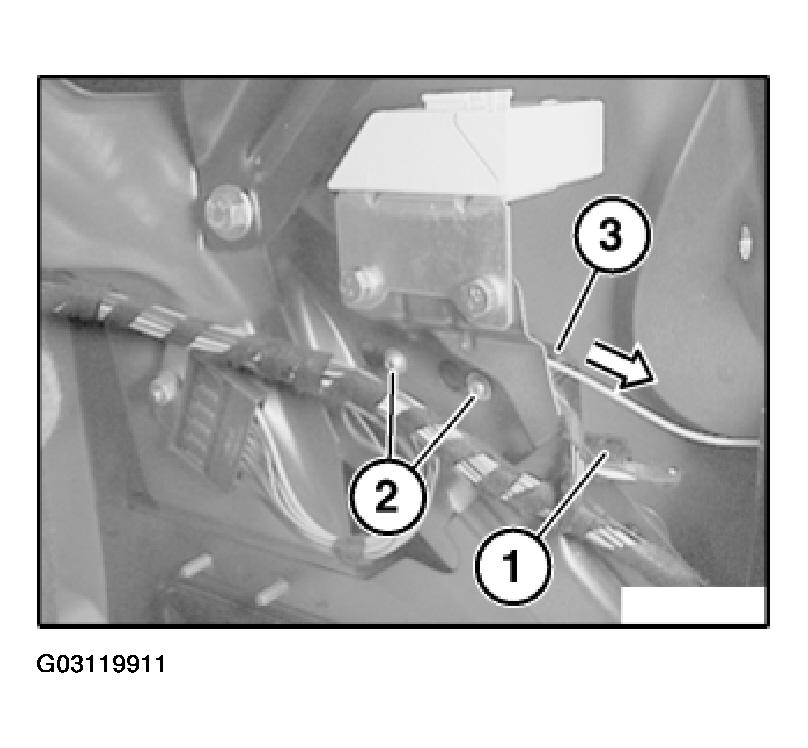

Unlock plug connection (1) and disconnect.

Fig 5: Removing Servodrive For Tank Filler Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws (2).

Feed out servodrive for tank filler flap (3) towards rear and pull out in direction of arrow.

All:

Installation:

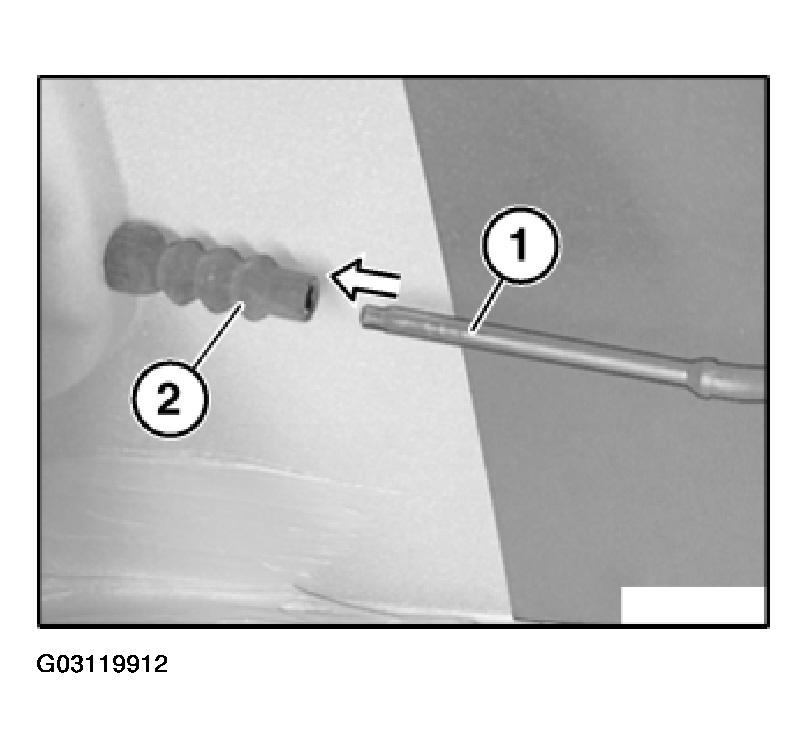

Insert servodrive for tank filler flap (1) in direction of arrow into gaiter (2).

Fig 6: Inserting Servodrive For Tank Filler Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

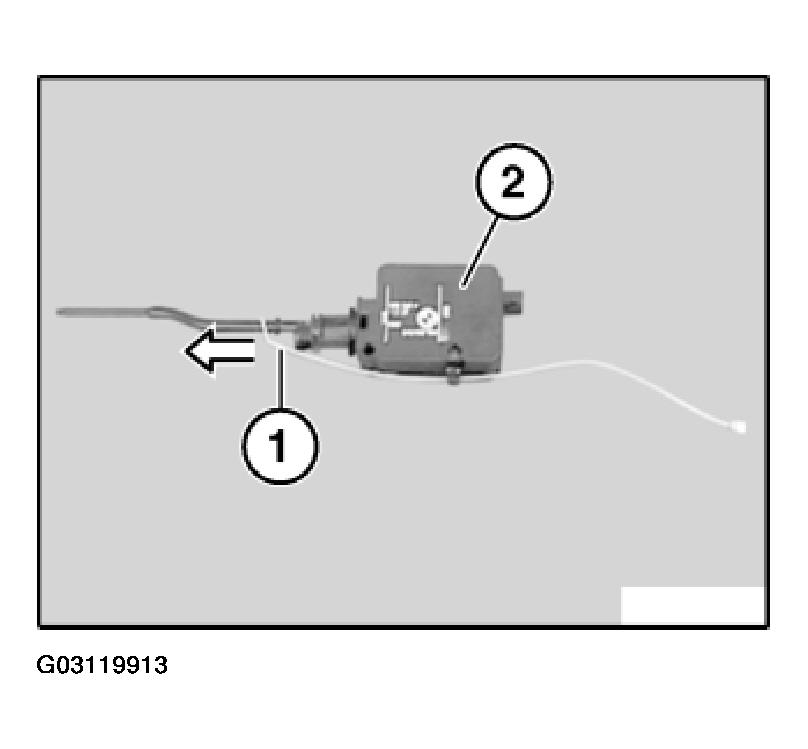

Remove pull strap for emergency actuator (1) in direction of arrow from servodrive for tank filler flap (2).

Fig 7: Removing Pull Strap For Emergency Actuator

Courtesy of BMW OF NORTH AMERICA, INC.
