65 52 023 Replacing Panel For On-Board Monitor (Control Panel, Widescreen)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove complete on-board monitor (widescreen), refer to 65 52 013 REMOVING AND INSTALLING COMPLETE ON-BOARD MONITOR (WIDESCREEN)

NOTE: When removing complete on-board monitor (widescreen), disconnect plug connections with trim for on-board monitor extended.

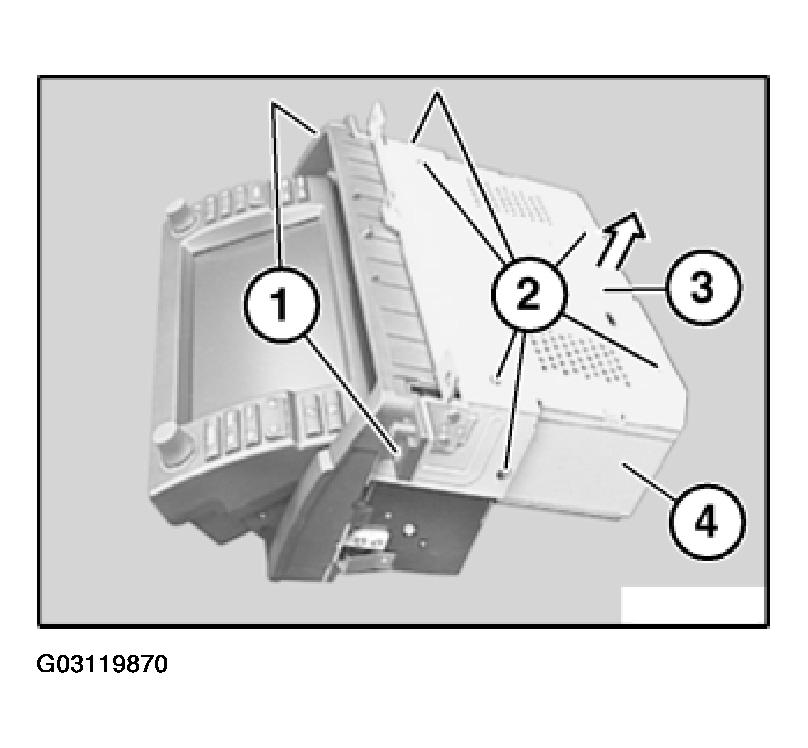

Remove bolts (1) and (2).

Fig 1: Removing Upper Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Remove upper housing (3) in direction of arrow from housing (4).

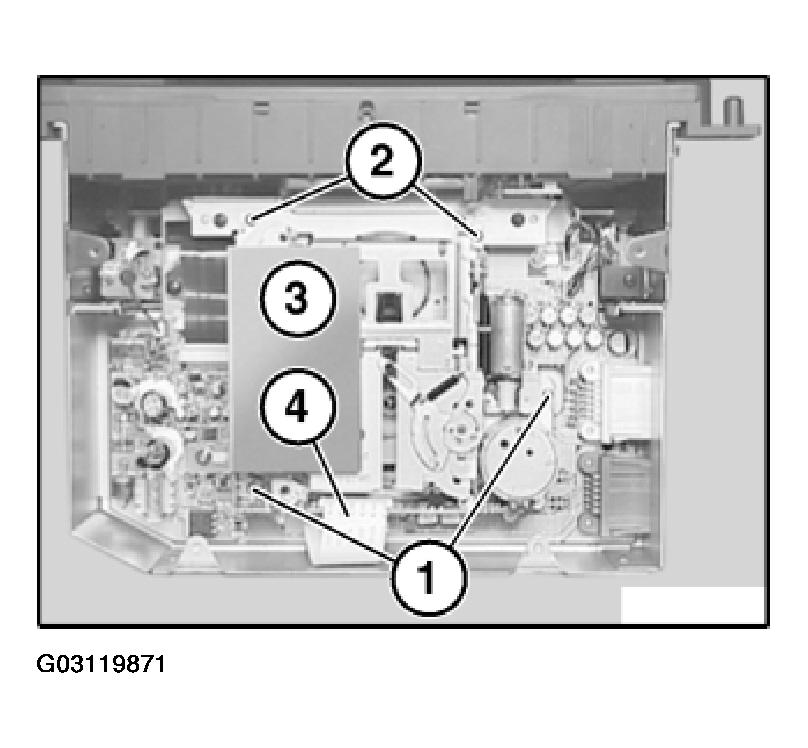

Remove bolts (1) and (2).

Fig 2: Lifting Out Cassette Deck

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out cassette deck (3) and place to one side.

NOTE: Cassette deck (3) is still connected to housing by ribbon cable for cassette deck (4).

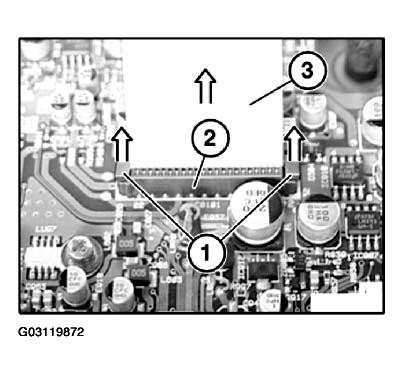

Open catches (1) in direction of arrow.

Fig 3: Feeding Ribbon Cable For Cassette Deck

Courtesy of BMW OF NORTH AMERICA, INC.

Feed ribbon cable for cassette deck (3) in direction of arrow from contact terminal (2).

Installation:

Make sure ribbon cable for cassette deck (3) is correctly seated in contact terminal (2).

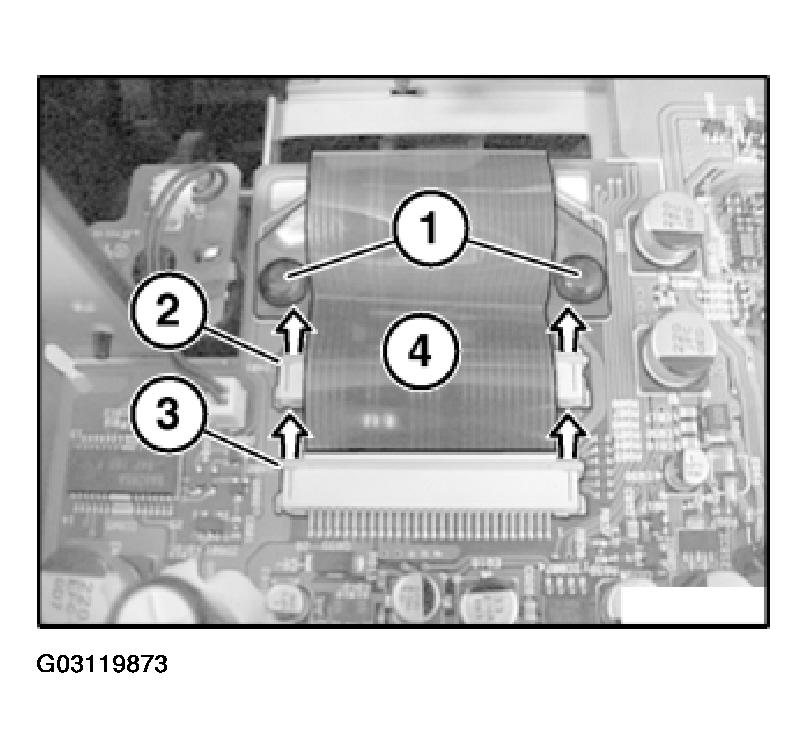

Lever out expansion rivet (1).

Fig 4: Feeding Ribbon Cables Out Of Contact Terminals

Courtesy of BMW OF NORTH AMERICA, INC.

Open catches (2) and (3) in direction of arrow.

Feed ribbon cables (4) resting on top of each other out of contact terminals.

Installation:

Make sure ribbon cables (4) are correctly seated in associated contact terminals.

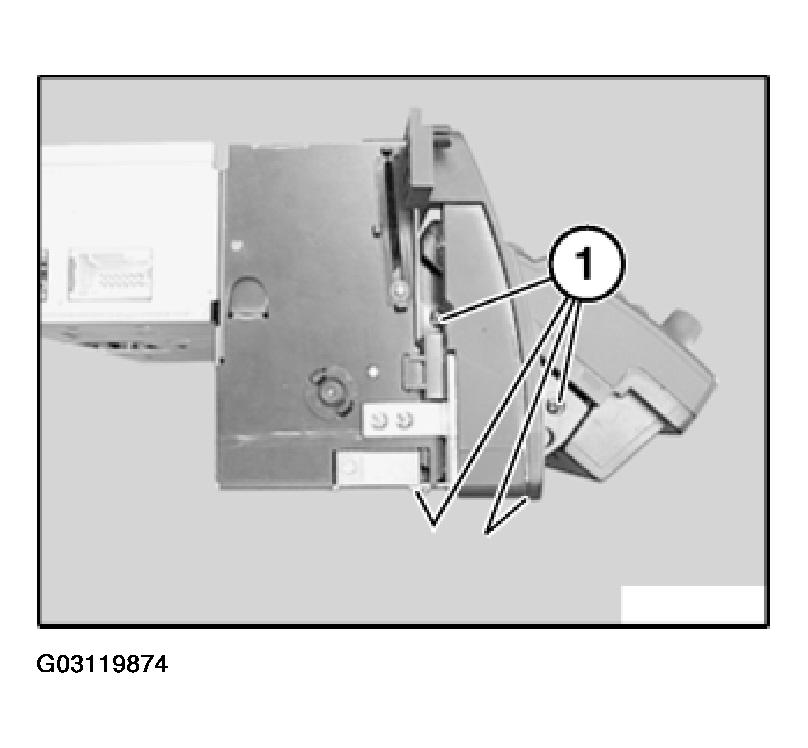

Release screws (1).

Fig 5: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

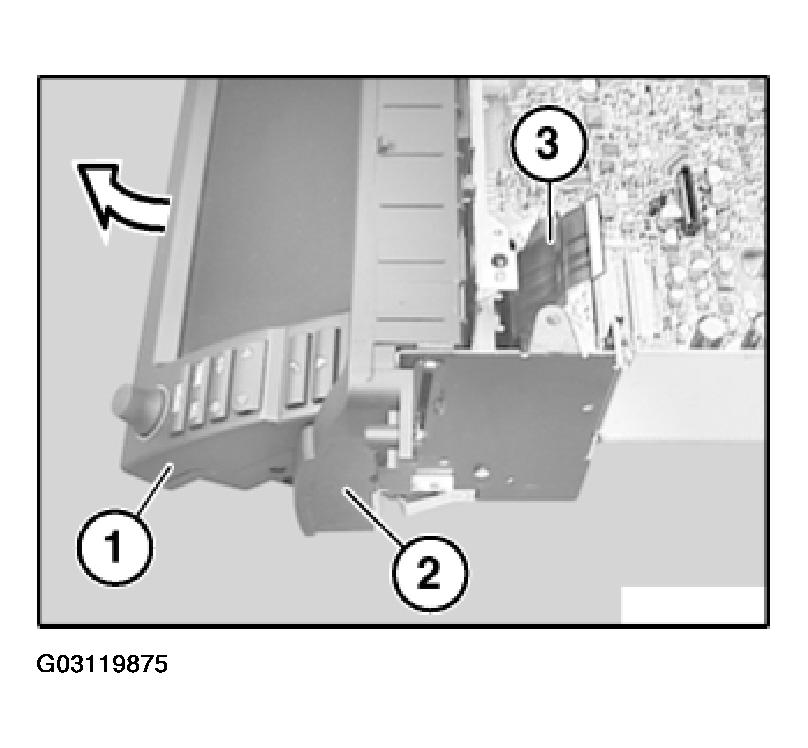

NOTE: Carefully feed out ribbon cables (3) when removing trim for onboard monitor (1).

Remove trim for on-board monitor (1) in direction of arrow from housing (2).

Fig 6: Removing Trim For On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.
