65 52 020 Replacing trim panel for on-board monitor (control panel)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install complete on-board monitor, refer to 65 52 010 REMOVING AND INSTALLING ON-BOARD MONITOR .

CAUTION: Place trim panel on special tool 12 7 192 (anti-static mat) and ground.

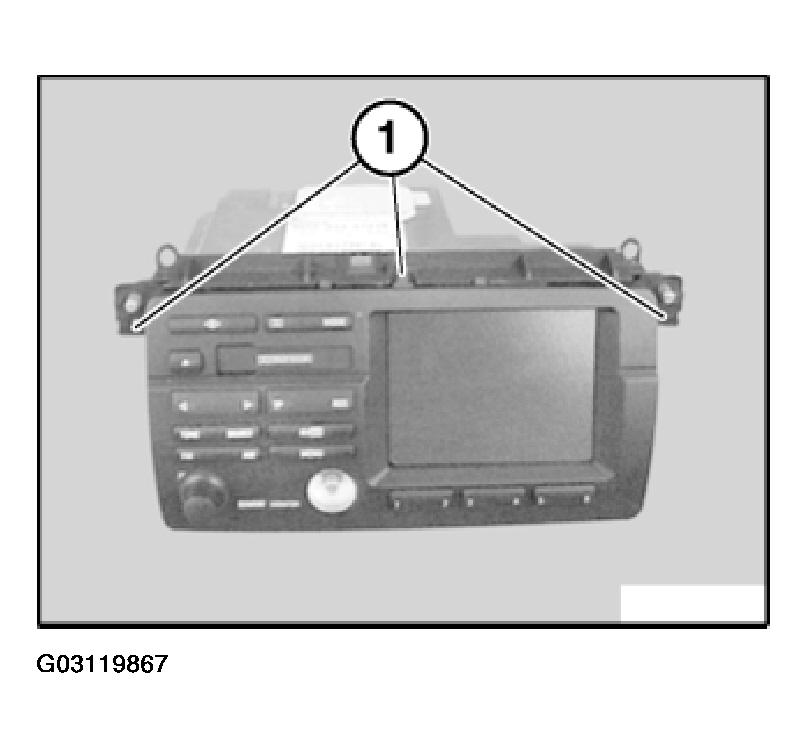

Release screws (1) and tilt trim panel out from above.

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

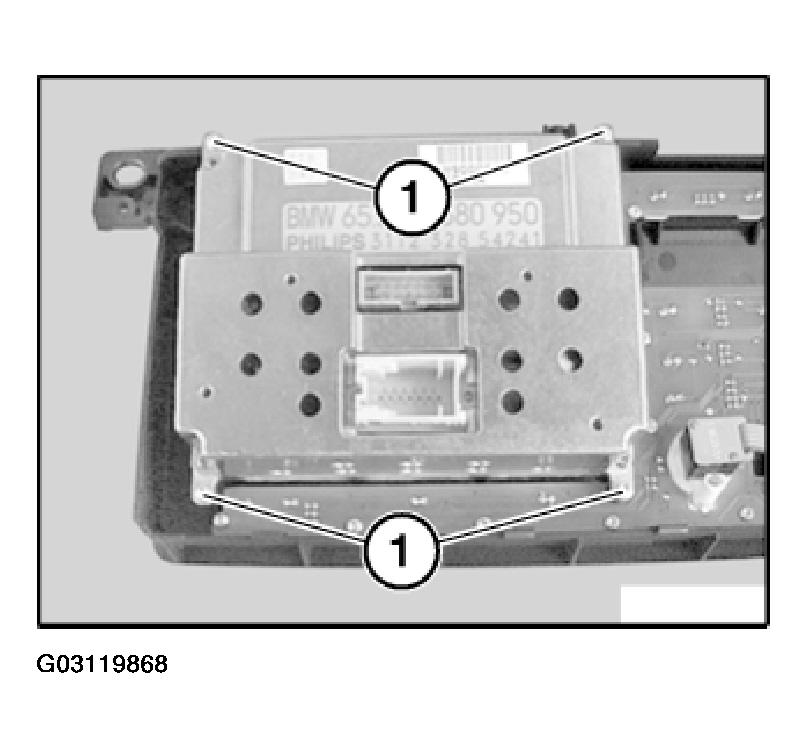

Release screws (1) and remove LC display.

Fig 2: Removing LC Display

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

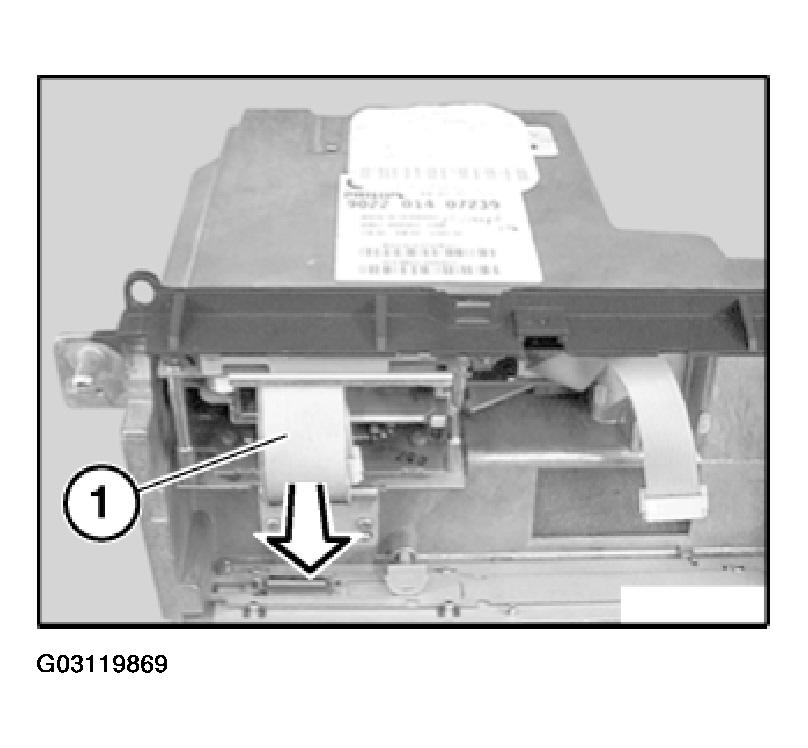

Lay wire (1) downwards.

Fig 3: Laying Wire Downwards

Courtesy of BMW OF NORTH AMERICA, INC.
