65 77 016 Removing And Installing Airbag Control Unit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Note AIRBAG safety instructions! Refer to AIR BAG SAFETY PRECAUTIONS .

Incorrect handling can activate AIRBAG and cause injury.

Necessary preliminary tasks:

Remove storage compartment, refer to 51 16 200 REMOVING AND INSTALLING STORAGE TRAY
Disconnect battery negative lead, refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY

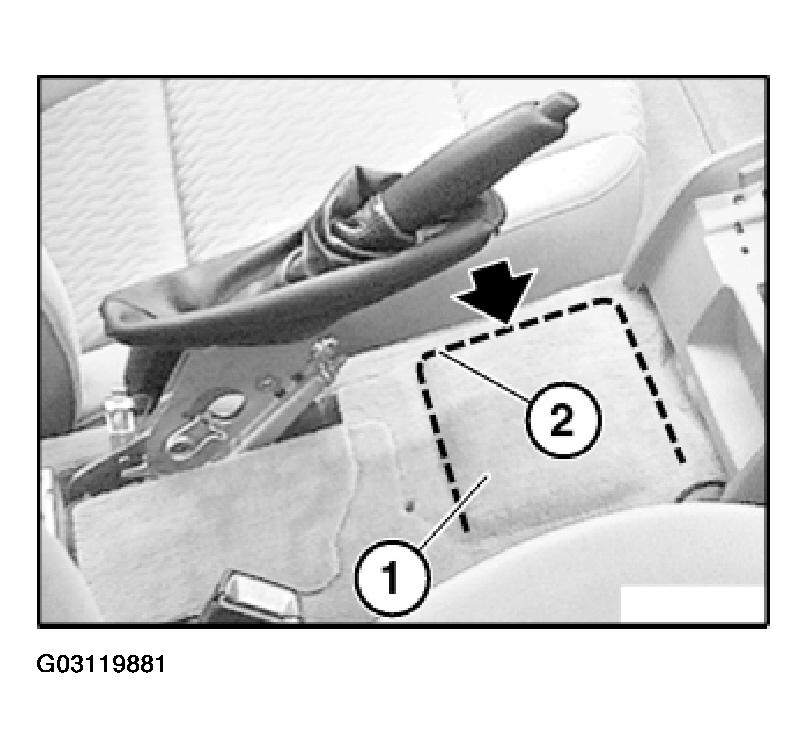

Cut carpet (1) along premarked line and fold back.

Fig 1: Cutting Carpet

G03119881

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Secure carpet (1) to position (2) using cable strap.

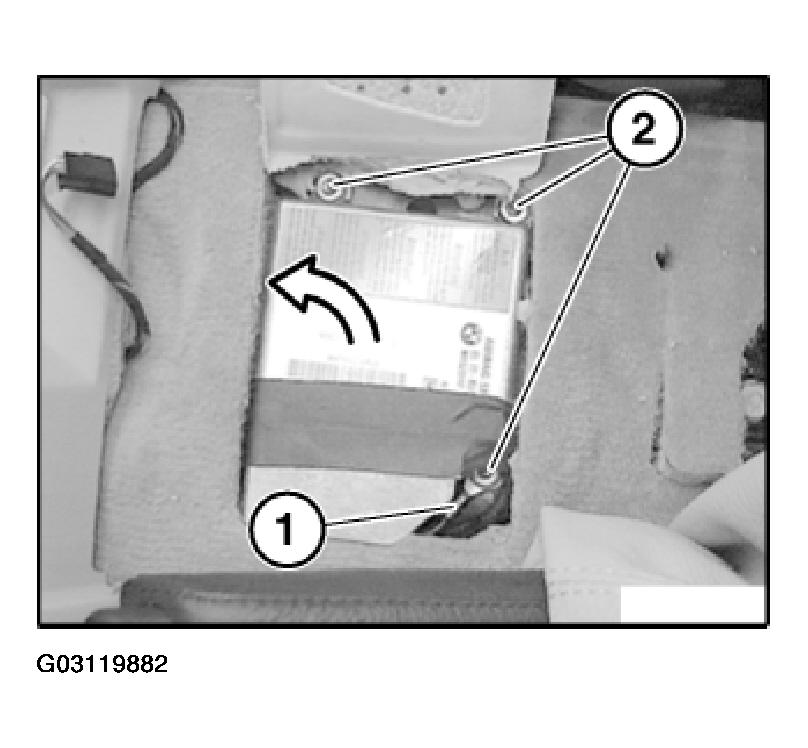

Release nuts (2), tightening torque 8.8 Nm. Raise AIRBAG control unit.

Fig 2: Releasing Nuts

G03119882

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Before installing AIRBAG control unit, make sure earth/ground cable is resting on stud bolt (1).

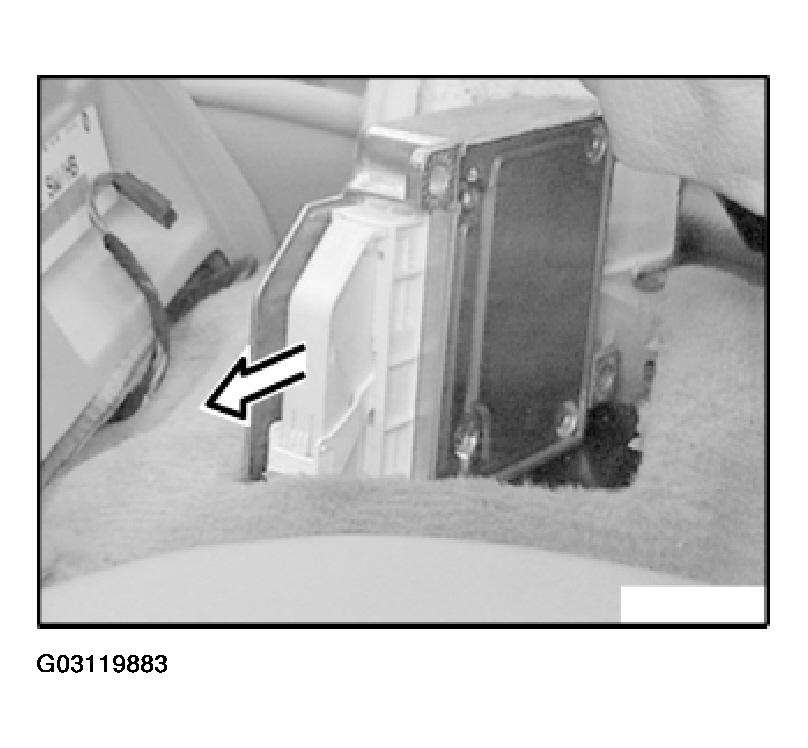

Unfasten plug connection and disconnect.

Fig 3: Lifting Out AIRBAG Control Unit

G03119883

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out AIRBAG control unit.
