64 11 942 Replacing evaporator temperature sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Remove trim panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

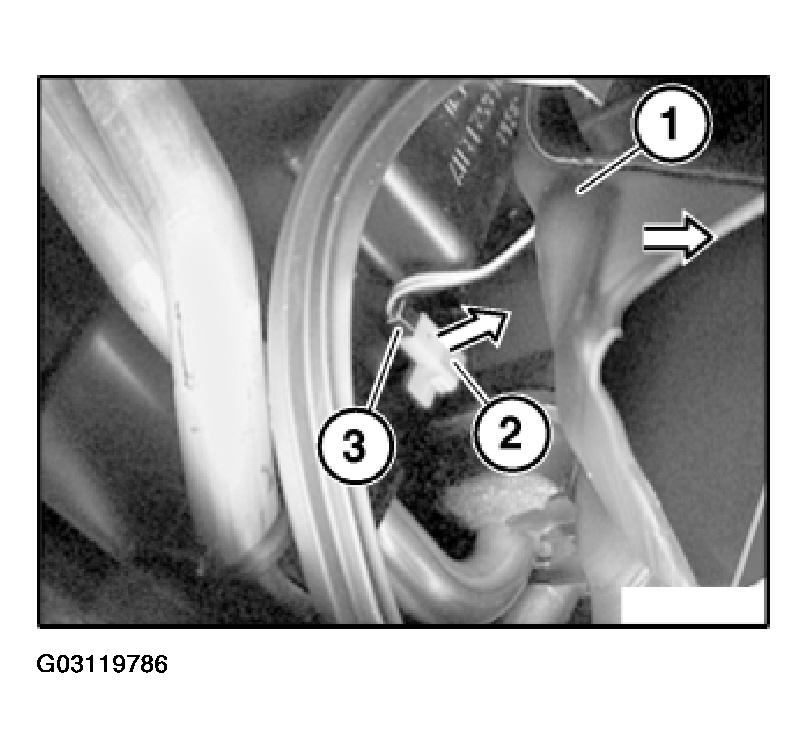

Press back heating duct for left footwell (1) in direction of arrow.
Lever out evaporator temperature sensor (2) in direction of arrow and remove.
Disconnect plug connection (3) and remove evaporator temperature sensor (2).
Installation:
Ensure evaporator temperature sensor (2) is correctly seated.
