64 11 322 Replacing front panel (IHKR)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove heating controls. Refer to 64 11 748 REMOVING AND INSTALLING HEATER CONTROLS (A/C CONTROL) .

IMPORTANT: Pull off rotary knobs in center positions. Do not turn potentiometers after removing rotary knobs.

Press down rotary buttons.

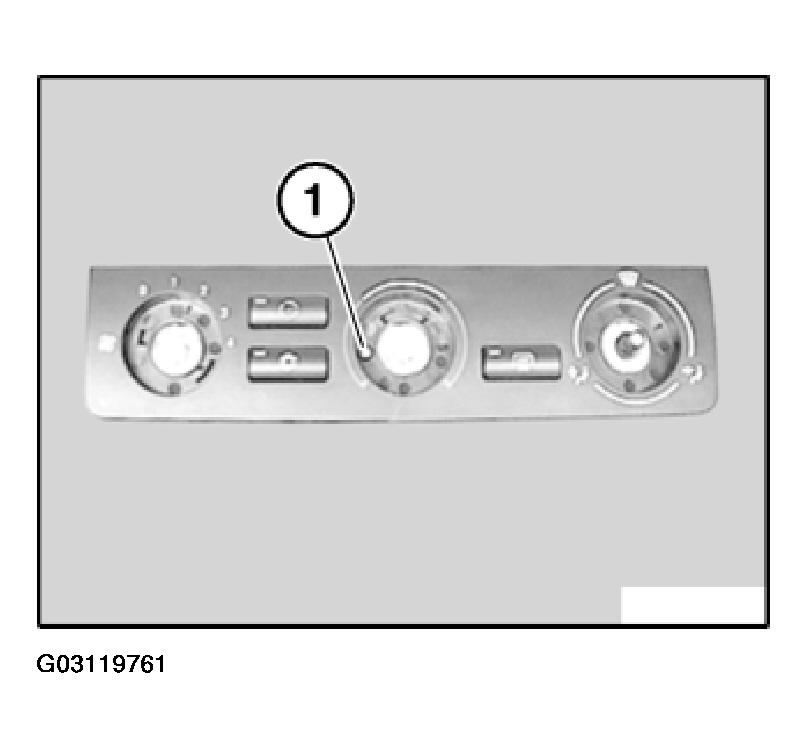

Unscrew bolt (1).

Fig 1: Unscrewing Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

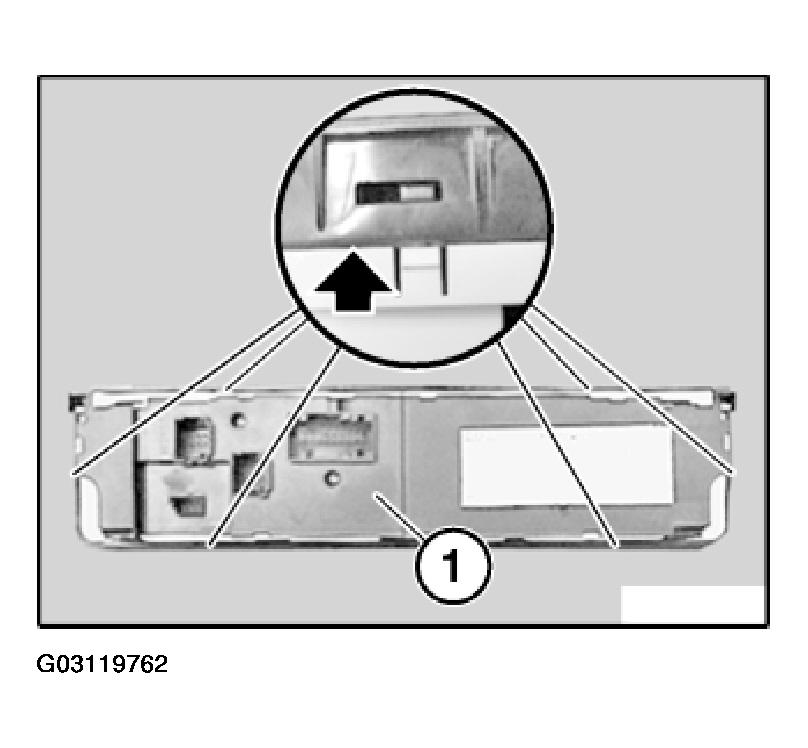

Unclip catches with screwdriver and disconnect housing of control panel (1) from front panel.

Fig 2: Disconnecting Housing Of Control Panel

Courtesy of BMW OF NORTH AMERICA, INC.
