63 12 950 Replacing a lower holder for headlight mounting
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Remove headlight. Refer to 63 12 001 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT or 63 12 005 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT (XENON HEADLIGHT) .

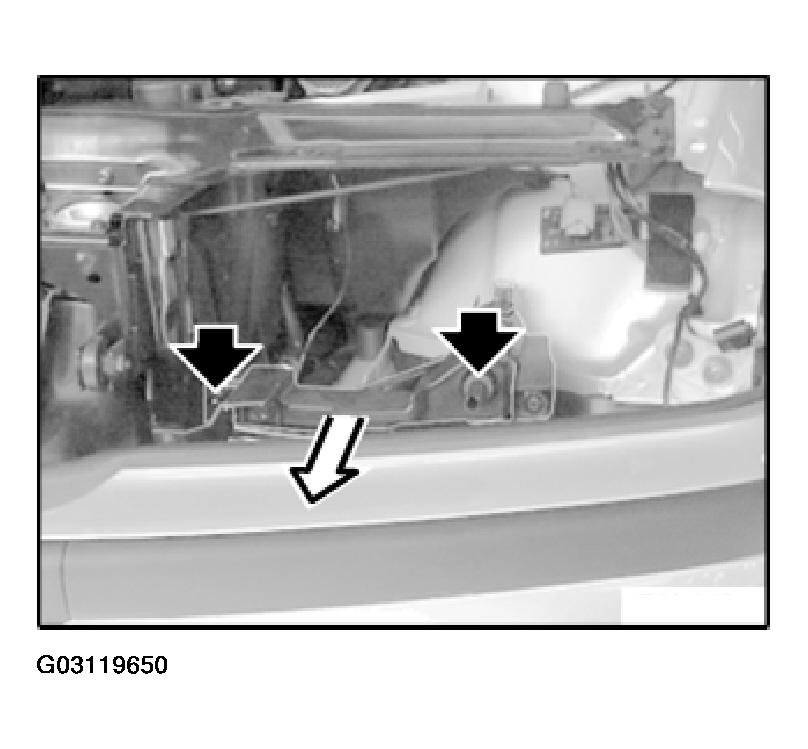

Release screws and remove lower holder.
Installation:
Tighten screws hand-tight only.
Install headlight and align to engine hood. Refer to 63 12 001 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT .
Tighten down screws.
Version with headlight cleaning system:

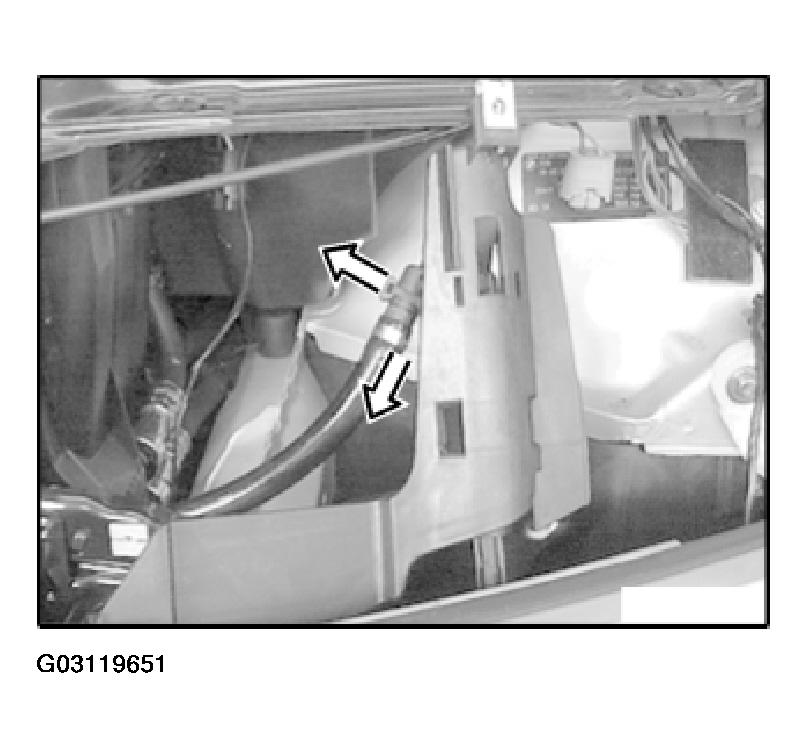

Unclip clip for hose (1) and disconnect hose (2).
