63 12 001 Removing And Installing/Replacing Left Headlight
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Coupe/Convertible from 03/2003:
Remove left headlight (xenon headlight). Refer to 63 12 010 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT (XENON HEADLIGHT) .
All others:
Necessary preliminary tasks:
- Remove direction indicator lamp. Refer to 63 13 150 REMOVING AND INSTALLING/REPLACING COMPLETE FRONT LEFT OR RIGHT TURN SIGNAL LAMP .
- Remove trim from headlight housing. Refer to 51 13 065 REMOVING AND INSTALLING/REPLACING TRIM ON LEFT OR RIGHT HEADLIGHT HOUSING (COUPE, CONVERTIBLE) .
NOTE:
Illustration shows air cleaner cover removed for purposes of clarity.
Unlock and disconnect all plug connections on headlight.

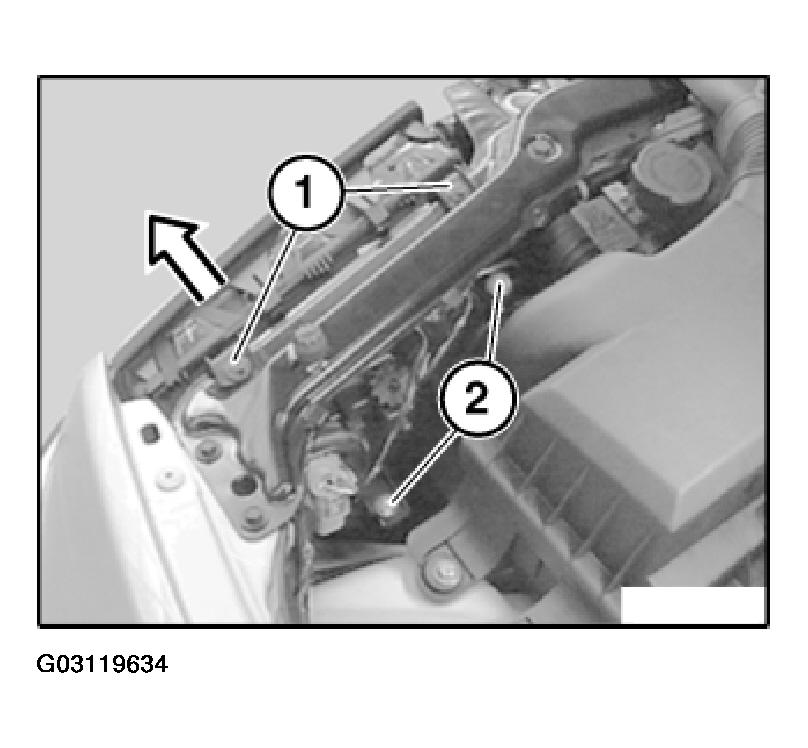

Release screws (1) and (2) and lever out headlight towards front.
Installation:
Tighten screws (1) hand-tight only.
Pull headlight fully towards front.
Close hood and adjust headlight to fit.
Open hood and tighten down screws (1).
Install and tighten down screws (2).
Installation:
Adjust headlights. Refer to 63 10 004 ADJUSTING HEADLIGHTS .
