61 67 010 Removing And Installing/Replacing Washer Pump For Headlight Cleaning System (M3)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Drain fluid tank for windshield washer system

Remove cover on right. Refer to 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER (M3, M3 CSL) .

Remove hose clip (1) in direction of arrow.

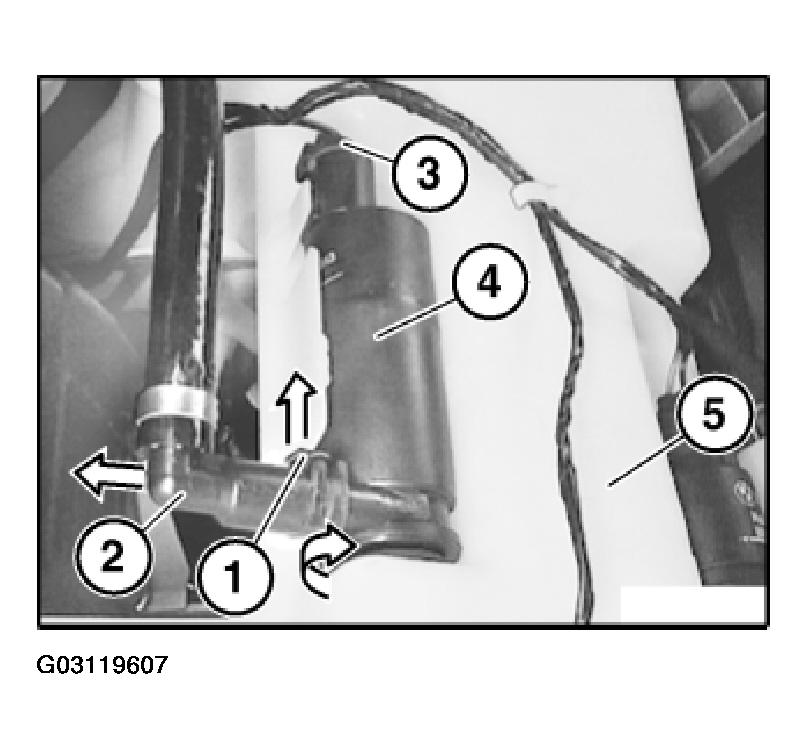

Fig 1: Removing Washer Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Detach hose (2) in direction of arrow from washer pump for headlight cleaning system (4).

Disconnect plug connection (3).

Turn washer pump of headlight cleaning system (4) in direction of arrow and lift out of water reservoir for windshield washer system (5).

Installation:

Replace sealing ring/strainer of washer pump.

Coat sealing ring of washer pump with antiseize agent.

Ensure hose is laid without kinks.

Fill fluid tank for windshield washer system.
