61 31 295 Replacing clutch switch for cruise control system

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
Press clutch pedal with pedal support down to flow and lock in position.

Disconnect plug connection (1).

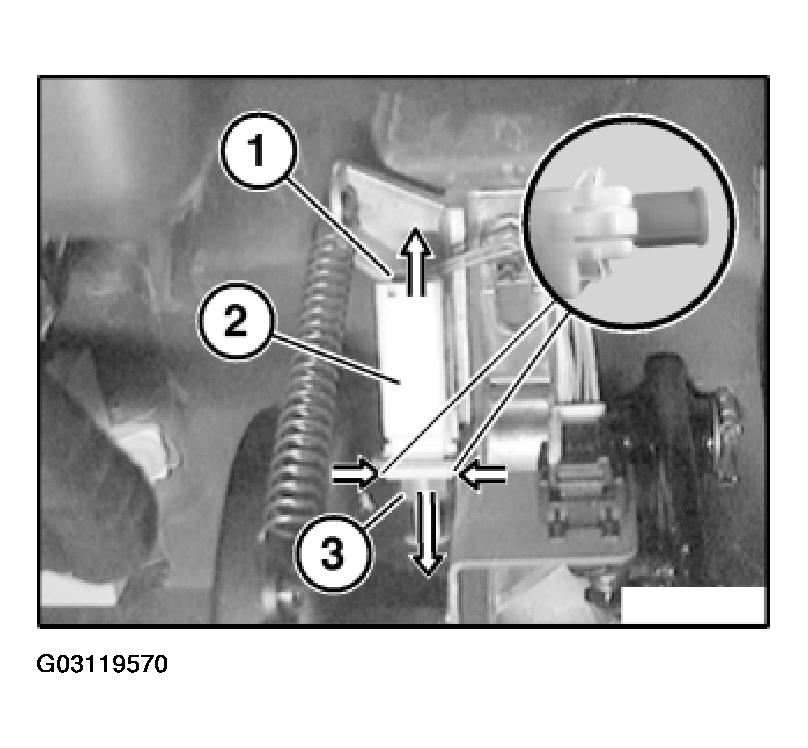

Fig 1: Removing Clutch Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw sleeve (3) in direction of arrow up to stop.

Press both retaining clips together at front end and pull out switch (2) in direction of arrow towards rear.

Installation:

Slowly move clutch pedal to initial position.
