52 26 008 Removing and installing/replacing left or right side section of rear seat backrest (through-loading system) (Coupe)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Remove trim on side section of rear seat backrest, refer to 51 43 ... REMOVING AND INSTALLING/REPLACING TRIM ON REAR SEAT BACKREST SIDE SECTION (COUPE) .
Remove rear seat, refer to 52 26 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (THROUGH-LOADING SYSTEM) .
Release rear-seat backrest and fold forward.
To unlock backrest side section:

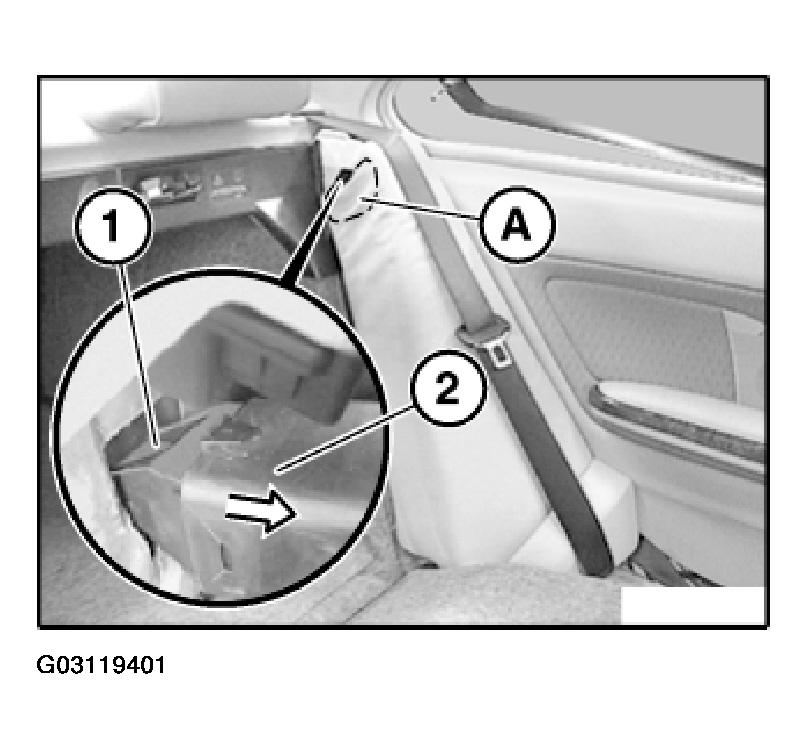

Press cover in area (A) to one side a little.
Using a screwdriver, press catch (1) downwards and pull backrest side section (2) somewhat towards front.

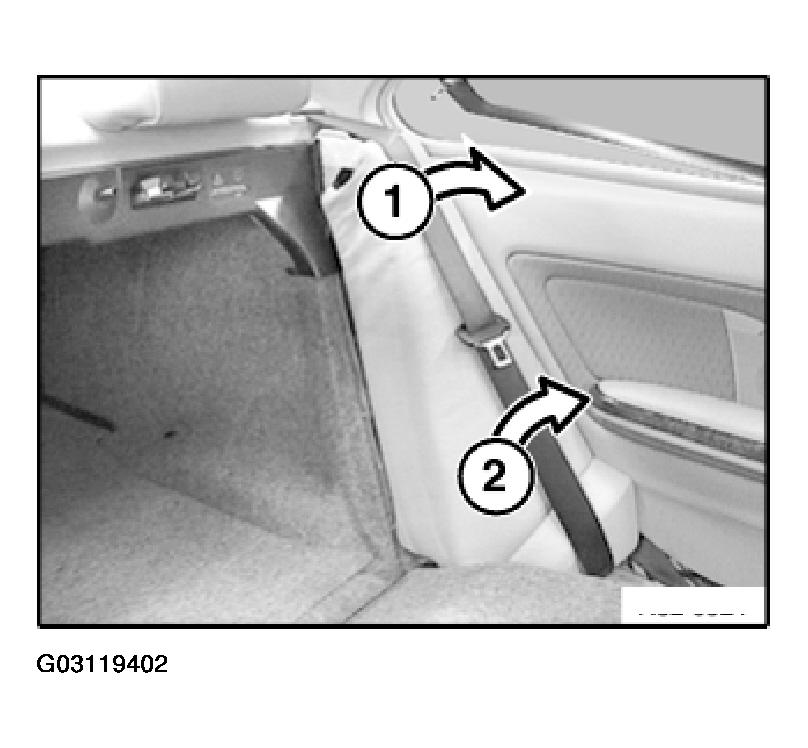

Pull side section at top (1) and pull out towards top (2).

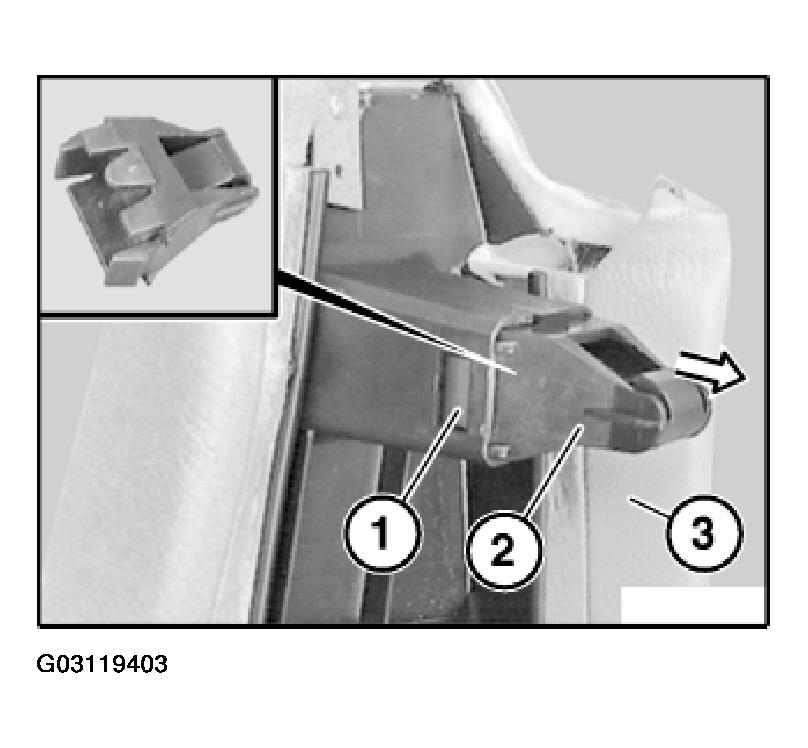

In event of faulty clip (2):
If necessary, unlock catches (1) on left/right and detach clip (2) from side section (3).
Installation:

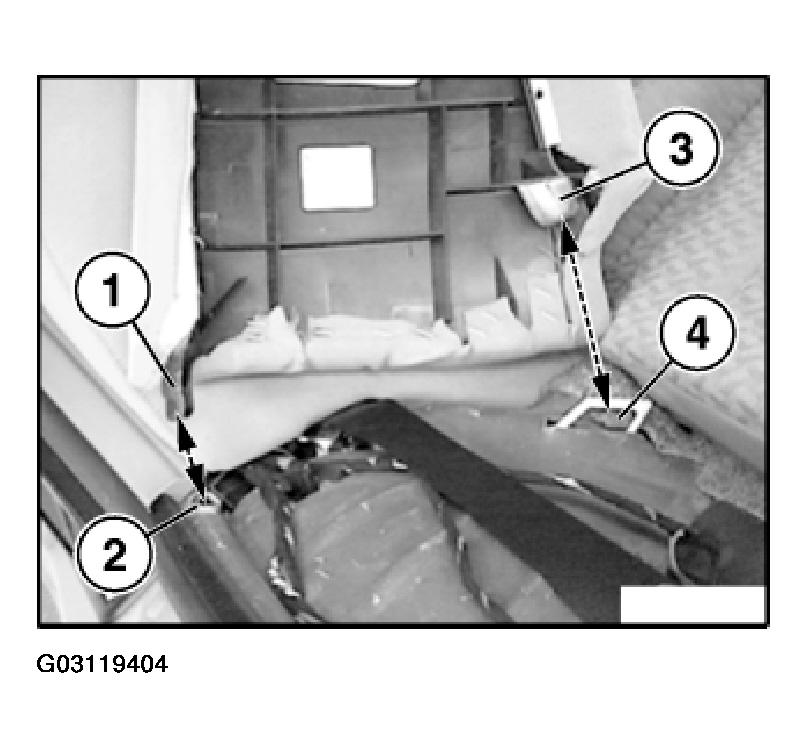

Push guide (1) into bracket (2) and guide (3) into bracket (4).
