51 43 ... Removing And Installing/Replacing Trim On Rear Seat Backrest Side Section (Coupe)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

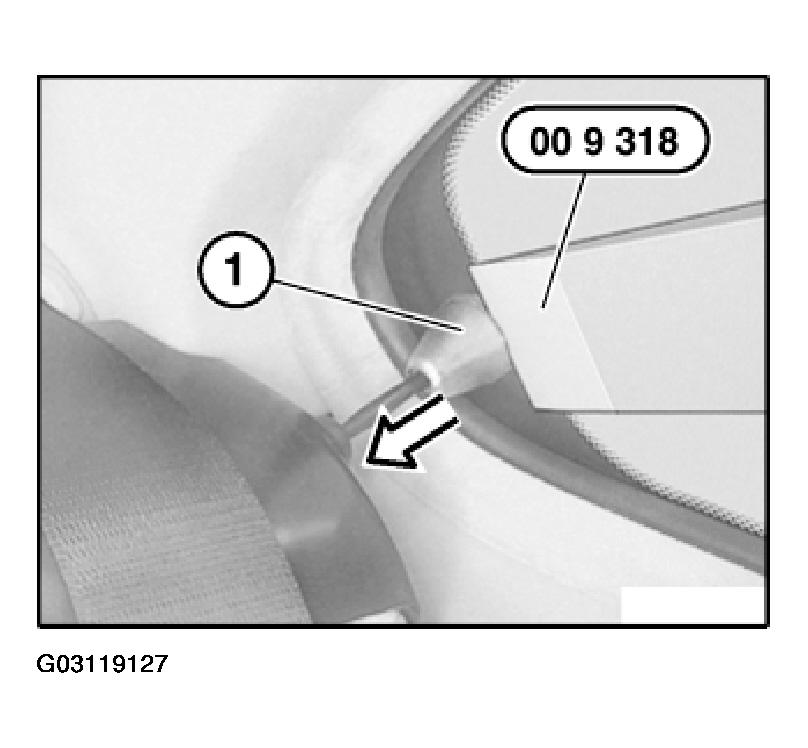

Lever out cap (1) with special tool 00 9 318 (universal wedge) towards inside.

Fig 1: Removing Cap With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

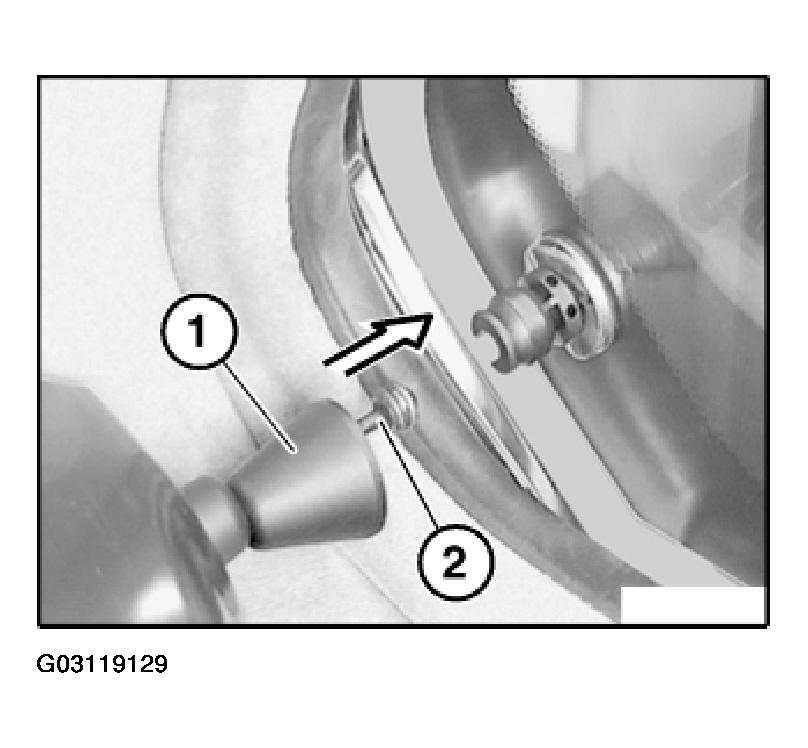

Lever connecting link (1) out of mount (2).

Fig 2: Locating Connecting Link

Courtesy of BMW OF NORTH AMERICA, INC.

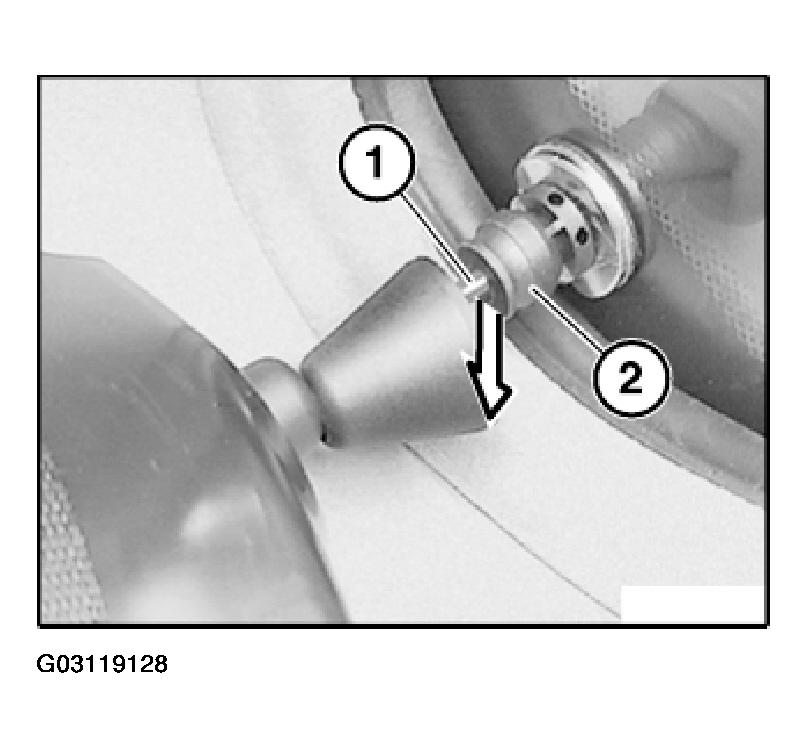

Pull cap (1) off connecting link (2).

Fig 3: Pulling Cap Off Connecting Link

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

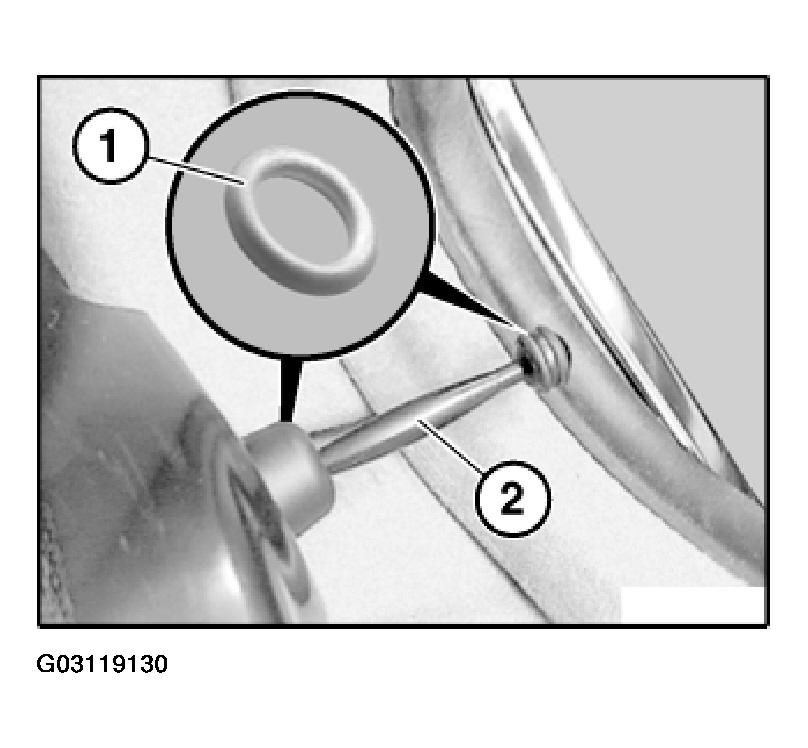

Fit two sealing rings (1) in each case on connecting link (2).

Fig 4: Identifying Sealing Rings
Courtesy of BMW OF NORTH AMERICA, INC.

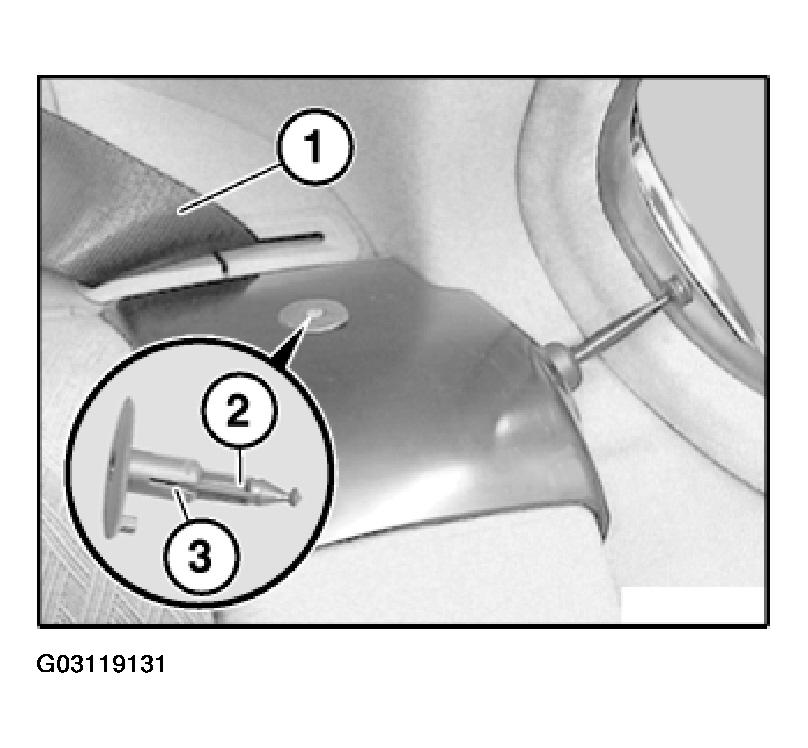

Slide seatbelt strap (1) to one side.

Press split pin (2) down and pull out expansion rivet (3) towards top.

Fig 5: View Of Split Pin And Expansion Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

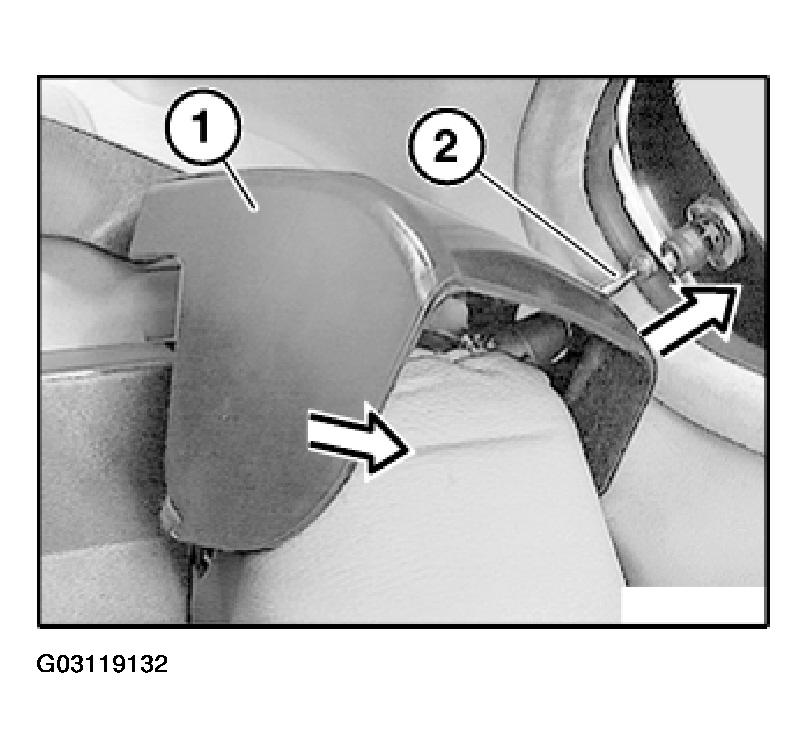

Lift out trim (1) towards front and feed outwards from connecting link (2).

Fig 6: Removing Trim On Rear Seat Backrest Side Section

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

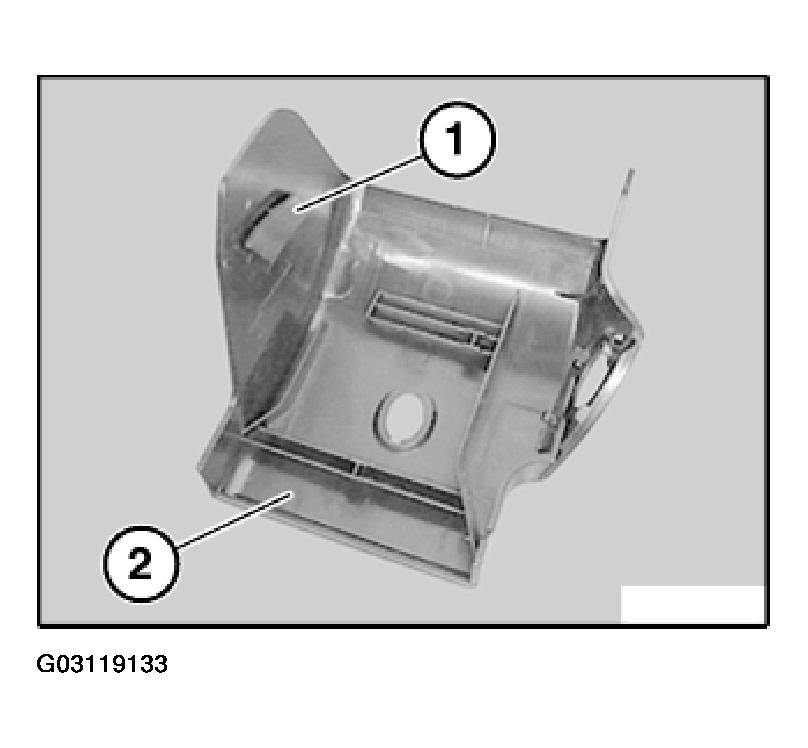

Guide (1) on trim (2) must not be damaged.

Fig 7: Locating Guide On Trim
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

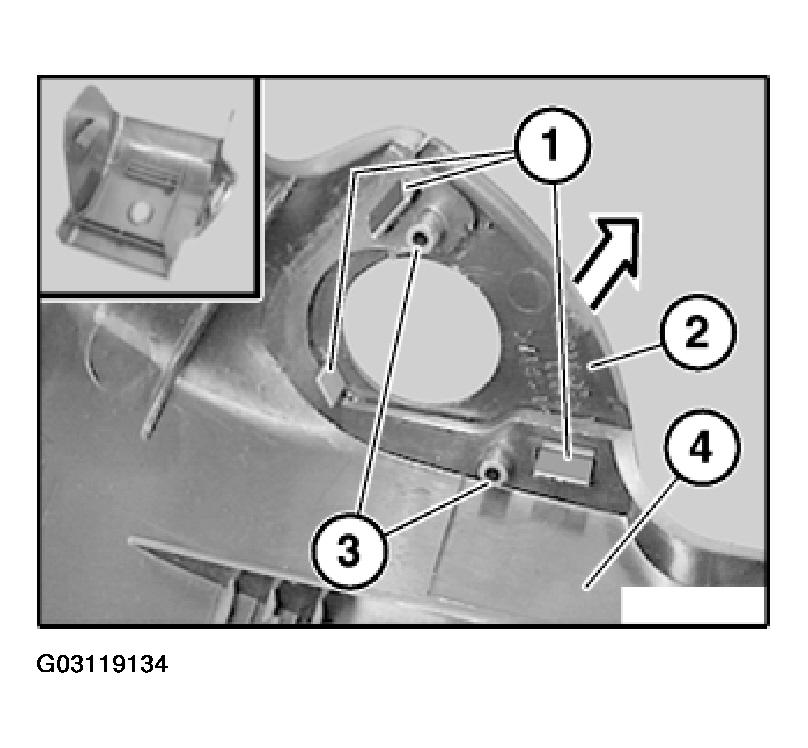

To improve installation, remove cover (2).
Unlock catches (1) and detach cover (2) from trim (4).
Do not damage guides (3).

Fig 8: Identifying Catches And Guides On Cover From Trim
Courtesy of BMW OF NORTH AMERICA, INC.
