52 14 000 ... Removing And Installing Left Or Right Front Seat (Normal/Electric)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove head restraint. Refer to 52 13 390 REMOVING AND INSTALLING / REPLACING FRONT HEADREST (NORMAL/ MANUAL) .

WARNING: Read and comply with safety regulations for handling AIRBAG modules and pyrotechnical belt tensioners. Refer to AIR BAG SAFETY PRECAUTIONS .
Incorrect or improper handling may trigger the pyrotechnical belt tensioner or side AIRBAG and thereby cause injury.

Adjust front seat as far forward and upward as possible. Switch off ignition!

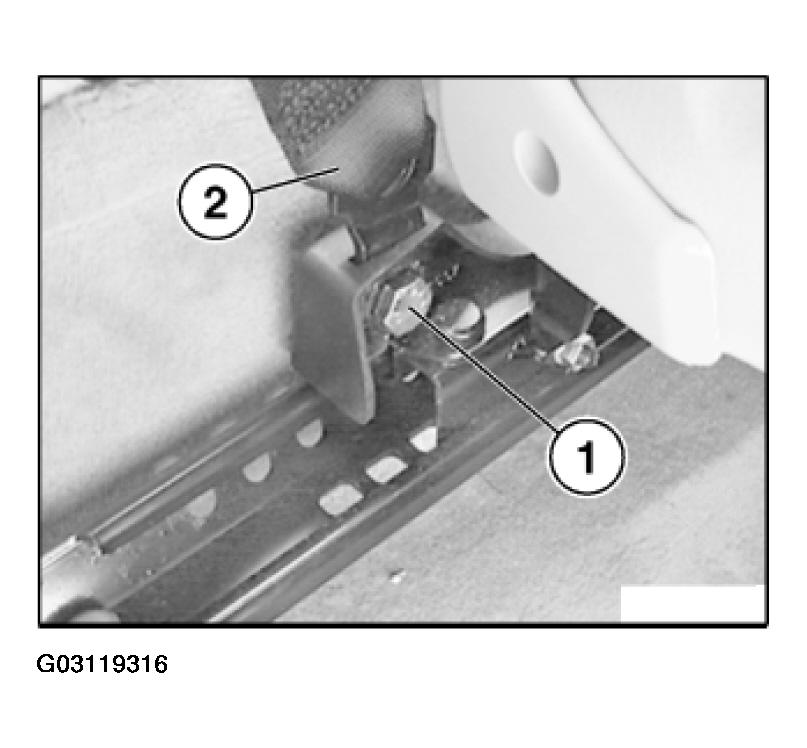

Release seatbelt screw (1) and feed out seatbelt strap (2).

Fig 1: Releasing Seatbelt Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, 31 Nm.

Move front seat forwards/upwards as far as possible.

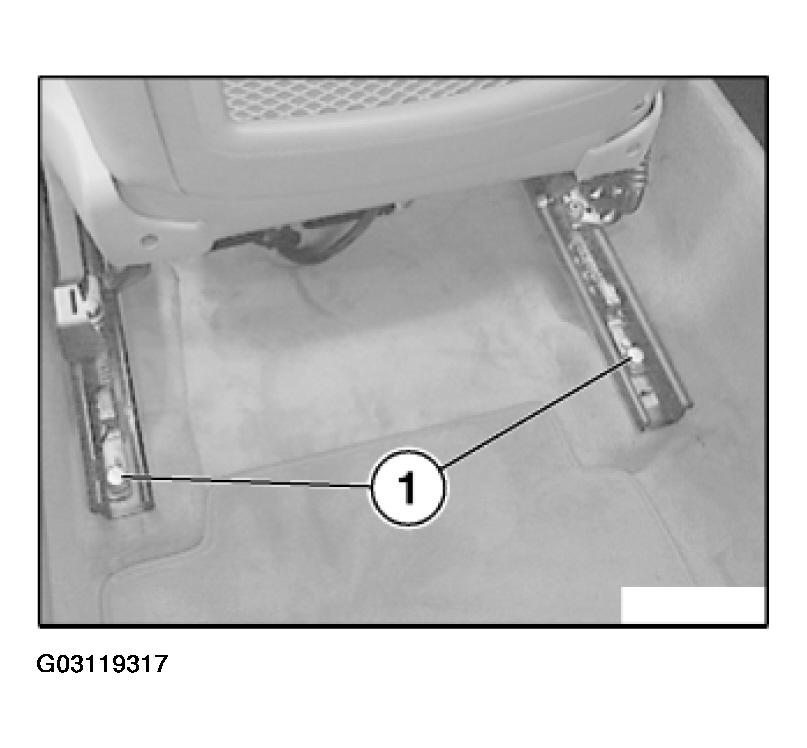

Unfasten screws (1).

Fig 2: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 52 10 1AZ. Refer to SEATS - TIGHTENING TORQUES - 3-SERIES (E46) .

Move front seat backwards/downwards as far as possible.

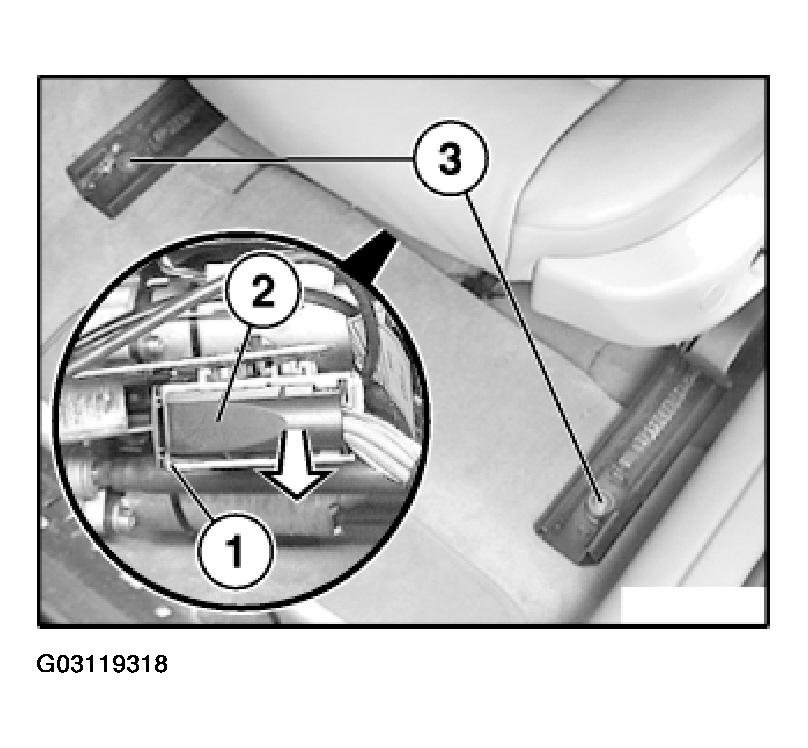

If necessary, unclip protective caps upwards. Unfasten screws (3).

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Move seat runners forward so that they are flush. Unlock lock (1) and disconnect plug connection (2).

IMPORTANT: Cover door sill with protective covers (risk of damage).

Lift out front seat.

Installation:

Floor carpet must not enter area between seat rails and floor panel beside screw points (grating noises).

Tightening torque 52 10 1AZ. Refer to SEATS - TIGHTENING TORQUES - 3-SERIES (E46) .
