52 13 198 Removing And Installing / Replacing Rear Panel On Left Or Right Front Seat Backrest (Normal/Manual)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove front seat. Refer to 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/MANUAL) .

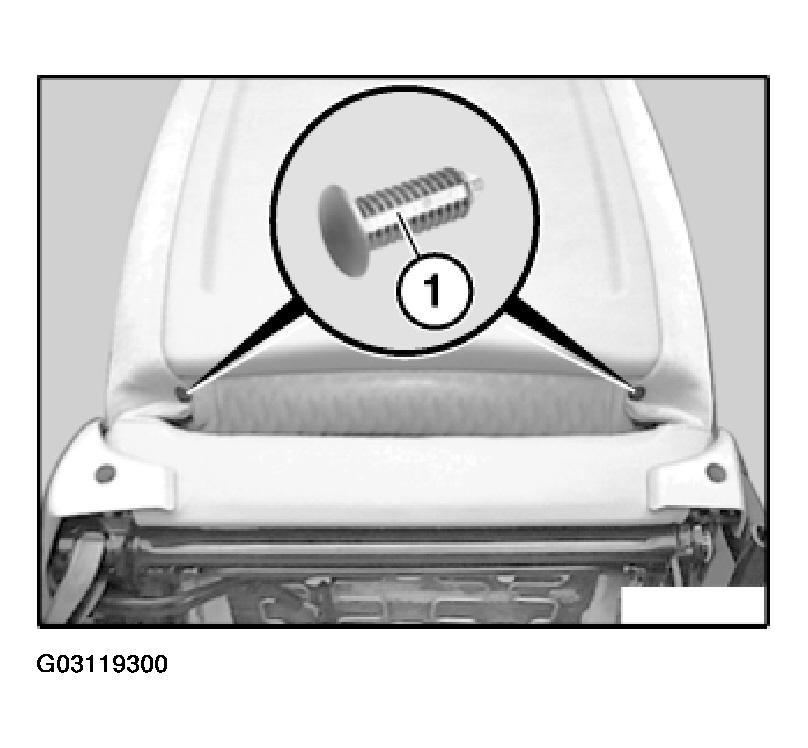

Release clips (1) with side cutting pliers.

Fig 1: Removing Clips

G03119300

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Remove clip remainders.

Carefully pull cover (1) with piping (2) out of groove in rear panel (3).

Fig 2: Removing Cover With Piping

G03119301

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

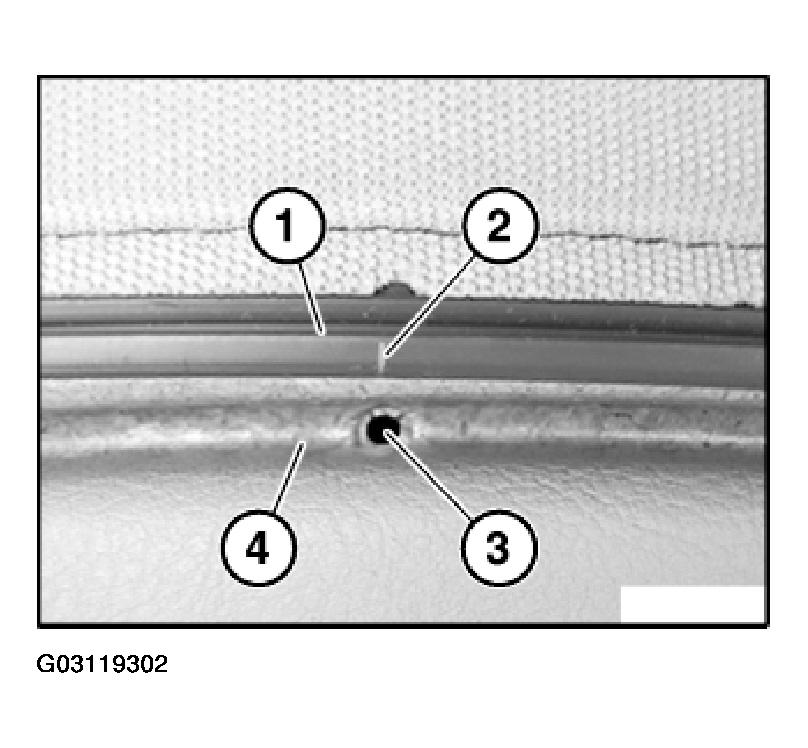

The cover piping (1) has a marking (2) which must line up with hole (3) in rear panel groove (4).

Fig 3: Installing Cover Piping

G03119302

Courtesy of BMW OF NORTH AMERICA, INC.

From marking (2), press in piping (1) completely to left and right at bottom.

Five new repair clips must be fitted after each disassembly.

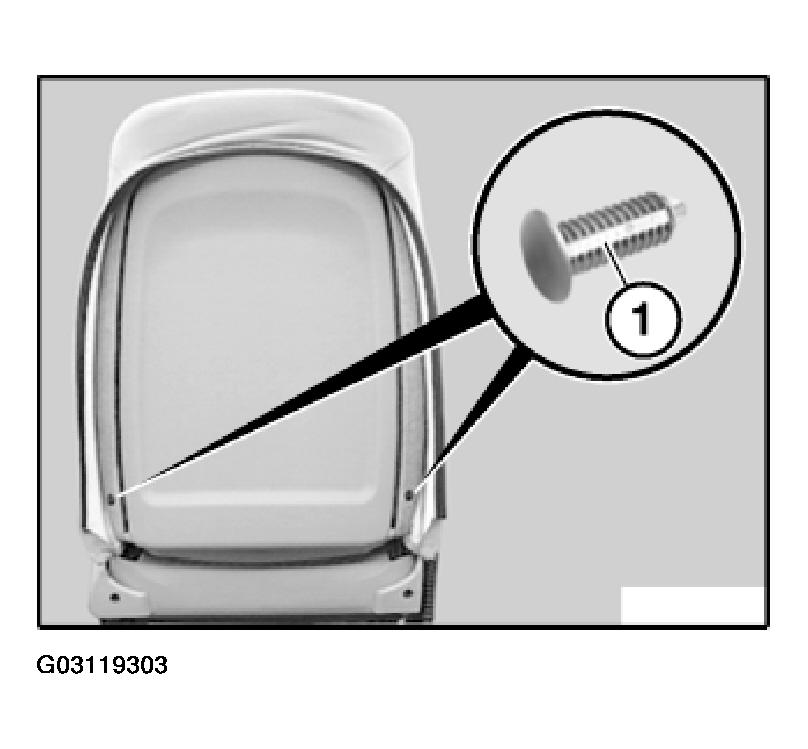

Release clips (1) (cut through with side cutting pliers).

Fig 4: Releasing Clips

G03119303

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Remove clip remainders.

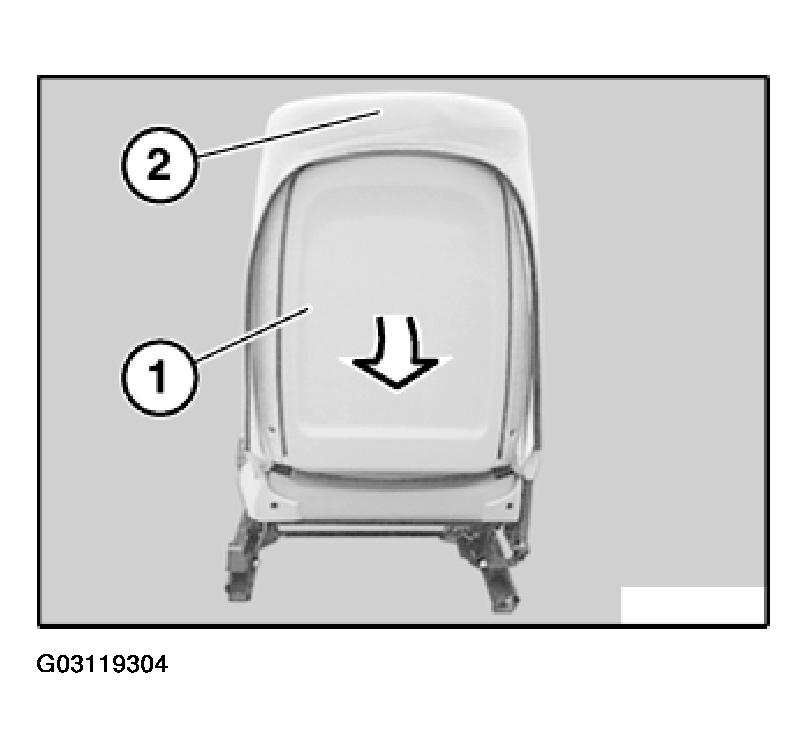

Pull rear panel (1) off backrest cover (2).

Fig 5: Pulling Rear Panel Off Backrest Cover

G03119304

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

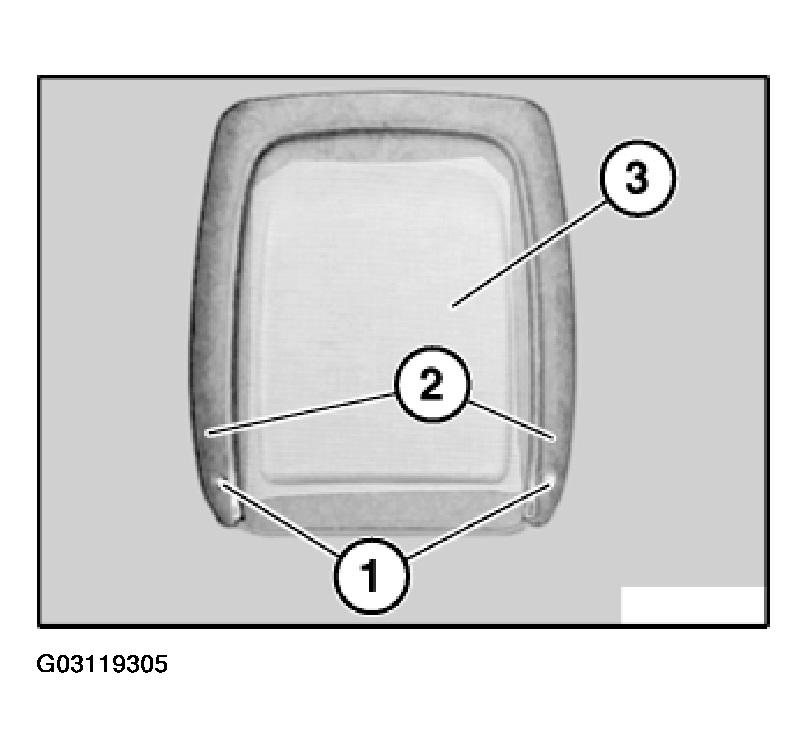

Holes (1) and (2) on rear panel (3) must not be damaged.

Fig 6: Identifying Holes On Rear Panel

G03119305

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

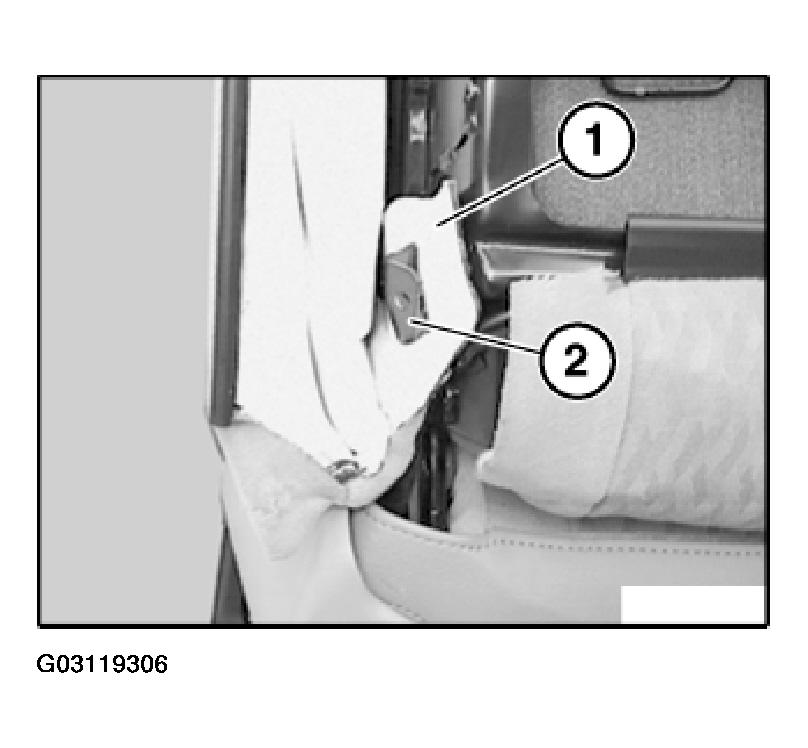

Slide backrest cover (1) on left/right over clip mount (2).

Fig 7: Installing Backrest Cover On Left/Right Over Clip Mount

G03119306

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

To prevent noise:

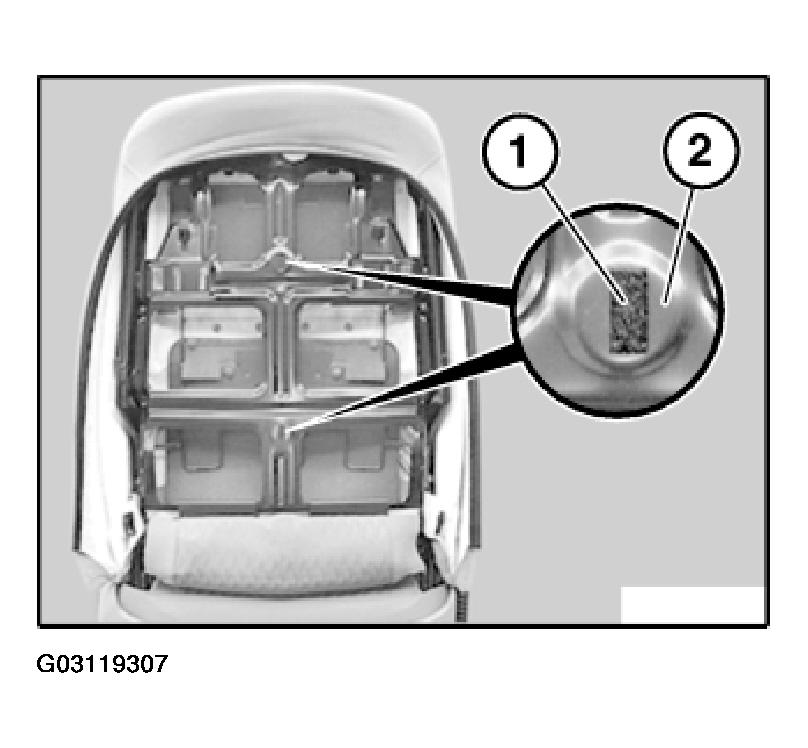

Stick felt strip (1) to raised frame area (2).

Fig 8: Installing Felt Strip

G03119307

Courtesy of BMW OF NORTH AMERICA, INC.
