52 13 000 Removing And Installing Left Or Right Front Seat (Normal/Manual)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove head restraint, refer to 52 13 390 REMOVING AND INSTALLING / REPLACING FRONT HEADREST (NORMAL/ MANUAL)
- Adjust front seat as far forward and upward as possible.
WARNING:
Read and comply with safety regulations for handling AIRBAG modules and pyrotechnical belt tensioners. Refer to AIR BAG SAFETY PRECAUTIONS
.
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side AIRBAG, resulting in injuries.
Switch off ignition.
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side AIRBAG, resulting in injuries.
Switch off ignition.
Saloon only:

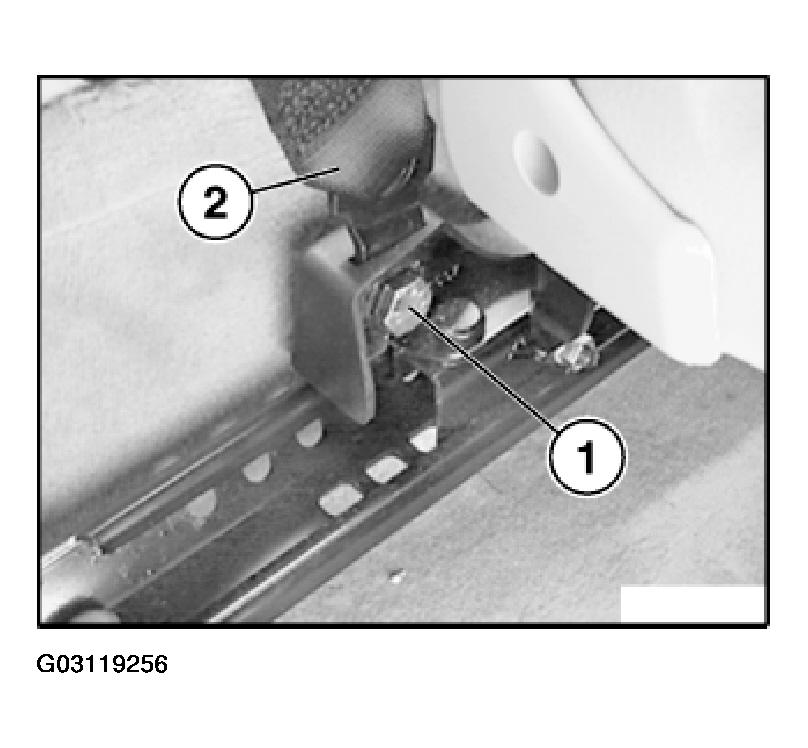

Release seatbelt screw (1) and feed out seatbelt strap (2).
Tightening torque, 45 Nm.
All:

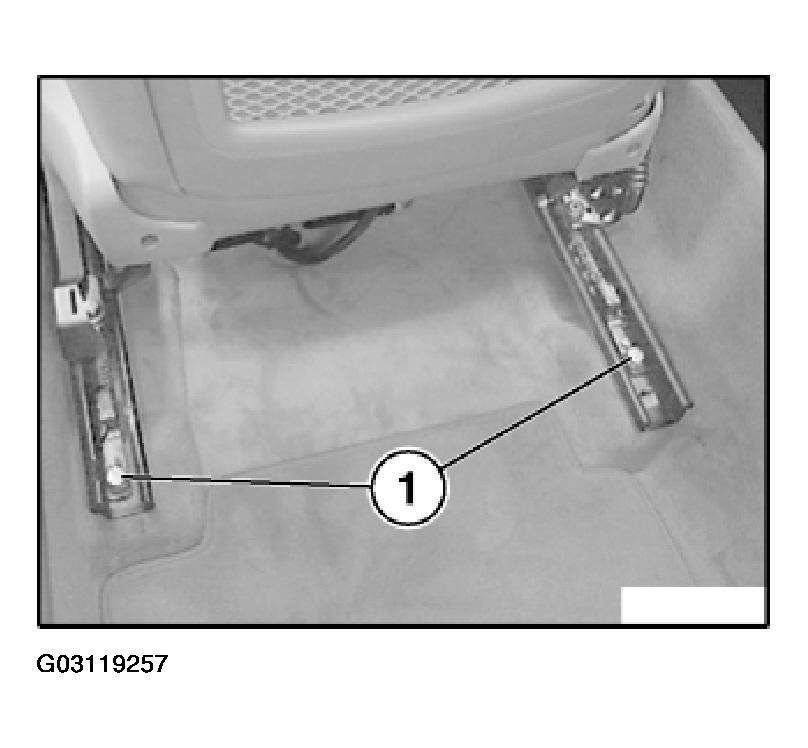

Release screws (1) at rear.
Tightening torque 52 10 1 AZ. Refer to SEATS - TIGHTENING TORQUES - 3-SERIES (E46) .
Installation:
Replace screws.
Move front seat as far back as possible.
Unclip cover at front.

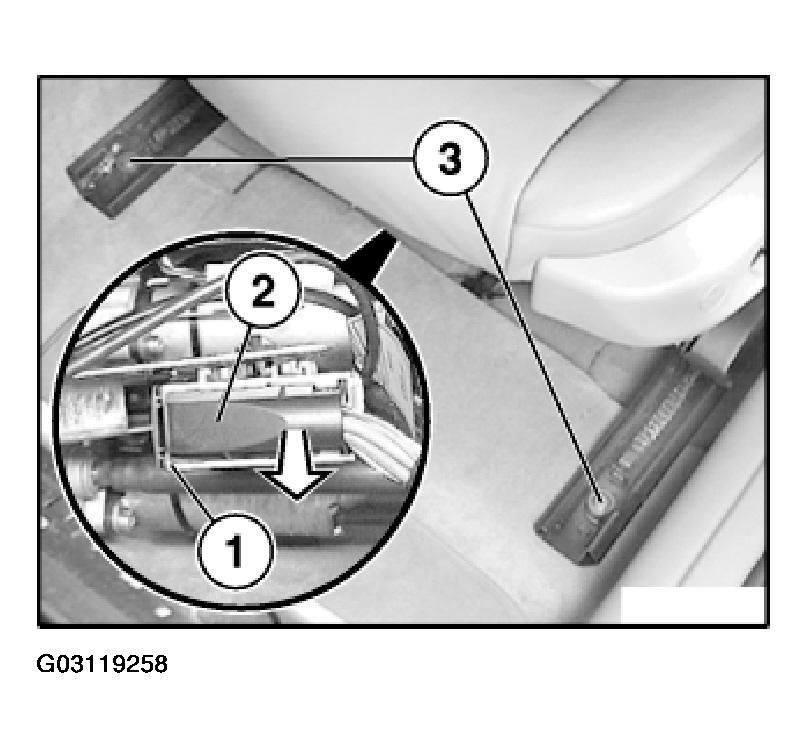

Release nuts (3) at front.
Installation:
Replace nuts.
Move front seat down and seat runners forward so that they are flush.
Unlock lock (1) and disconnect plug connection (2).
IMPORTANT:
Cover door sill with protective covers (risk of damage).
Lift out front seat.
Installation:
Carpet must not get between seat rails and floor pan in area of fastening points (grating noises).
Tightening torque 52 10 1 AZ. Refer to SEATS - TIGHTENING TORQUES - 3-SERIES (E46) .
