51 16 211 Removing And Installing/Replacing Finisher For Storage Tray

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Version With Automatic Transmission Only:

Remove finisher for preselector lever, refer to 51 16 210 REMOVING AND INSTALLING/REPLACING FINISHER FOR PRESELECTOR LEVER .

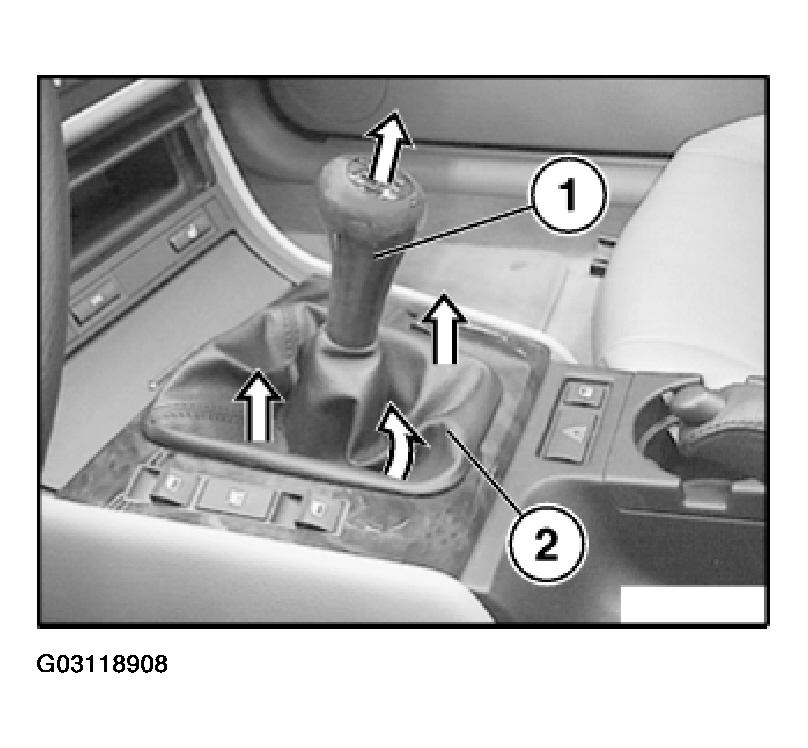

Jerkily remove knob (1) for selector lever towards top.

Lift out rubber gaiter (2).

Fig 1: Removing Finisher For Preselector Lever

Courtesy of BMW OF NORTH AMERICA, INC.

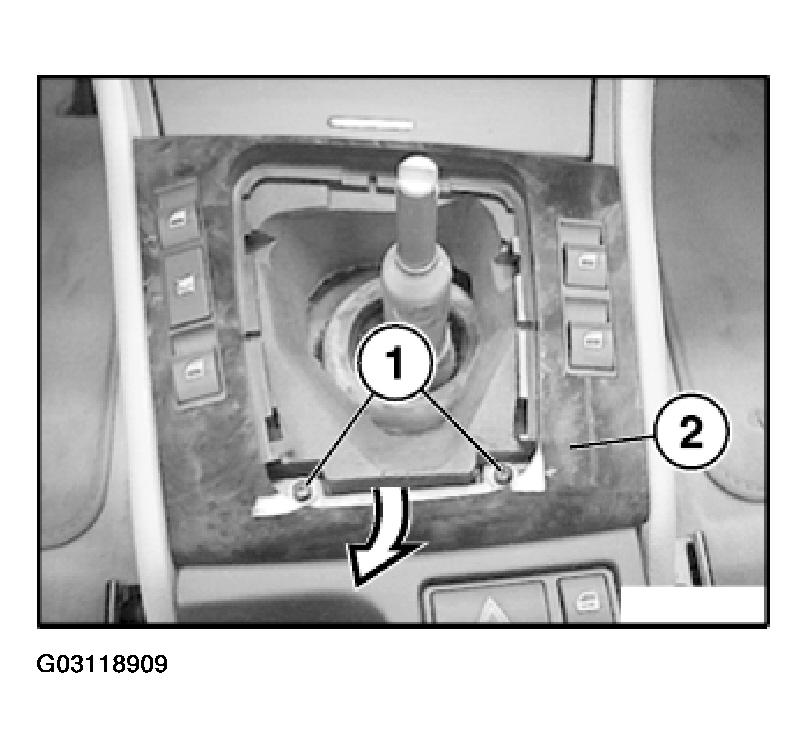

Unscrew bolts (1).

Remove finisher (2) towards rear/top.

Disconnect plug connections and remove finisher (2).

Fig 2: Disconnecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

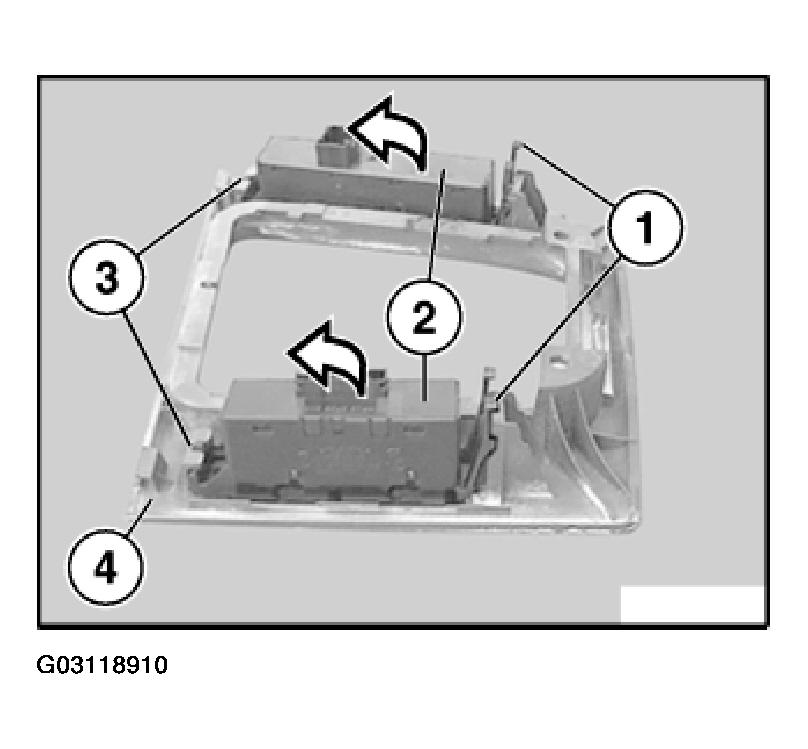

Unlock lock (1), unscrew switch (2) towards top from support (3) and remove from finisher (4) for storage tray.

Installation:

Check function.

Fig 3: View Of Lock
Courtesy of BMW OF NORTH AMERICA, INC.
