51 16 210 Removing And Installing/Replacing Finisher For Preselector Lever

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

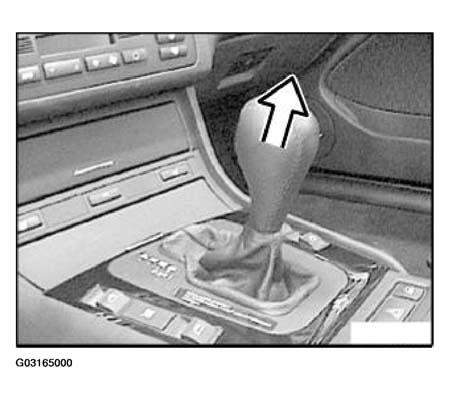

NOTE: Do not wrench knob when removing as this will cause the anti-wrench element in the knob to be shorn off.

Tug firmly to remove knob.

Fig 1: Removing Gear Shift Knob

G03165000

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach knob to selector lever, align and press on until it snaps audibly into place.

Installation:

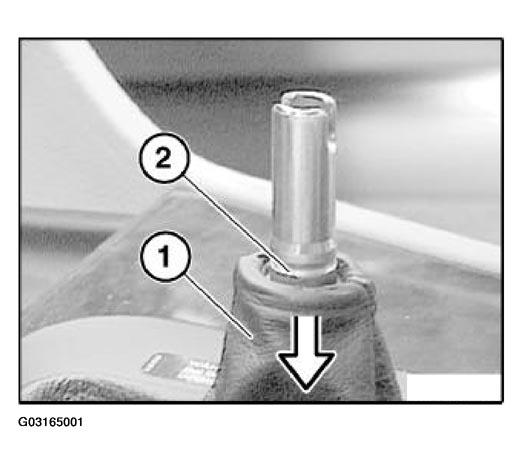

Push rubber gaiter (1) down until groove (2) is fully exposed.

Fig 2: View Of Groove In Selector Lever

G03165001

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

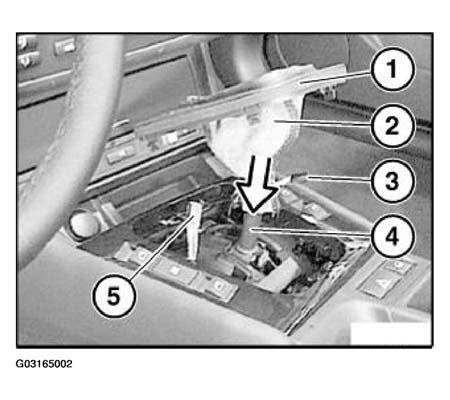

Pull rubber gaiter (2) of trim (1) down and fit onto selector lever (4).

Fig 3: Identifying Components Of Trim

G03165002

Courtesy of BMW OF NORTH AMERICA, INC.

Attach cable plugs (3) and (5) to trim (1) in center console.

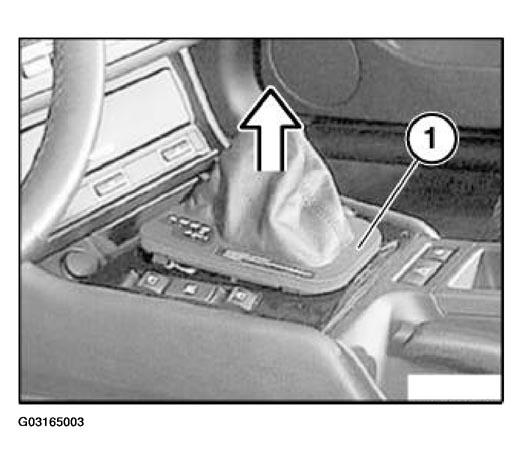

Remove trim (1) with rubber gaiter from center console.

Fig 4: Removing Trim With Rubber Gaiter From Center Console

G03165003

Courtesy of BMW OF NORTH AMERICA, INC.

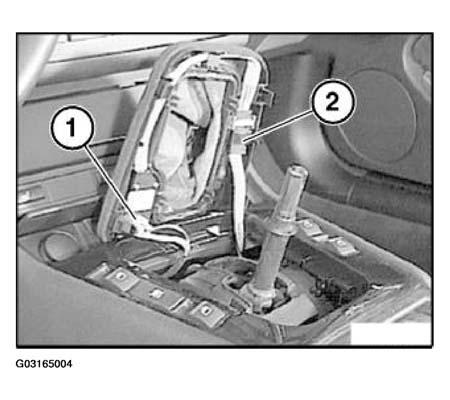

Disconnect cable plugs (1) and (2).

Fig 5: Disconnecting Cable Plugs

G03165004

Courtesy of BMW OF NORTH AMERICA, INC.
