51 32 211 Replacing Rubber Guide For Front Left Or Right Door Window Glass (Coupe)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Remove rearview mirror from front door, refer to REMOVING AND INSTALLING/REPLACING MIRROR ON LEFT OR RIGHT FRONT DOOR (COUPE) .
Remove front door window glass, refer to REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT DOOR WINDOW (COUPE, CONVERTIBLE) .
Remove outer cavity strip, refer to REMOVING AND INSTALLING OR REPLACING WINDOW CAVITY COVER STRIP ON OUTSIDE OF LEFT OR RIGHT FRONT DOOR .

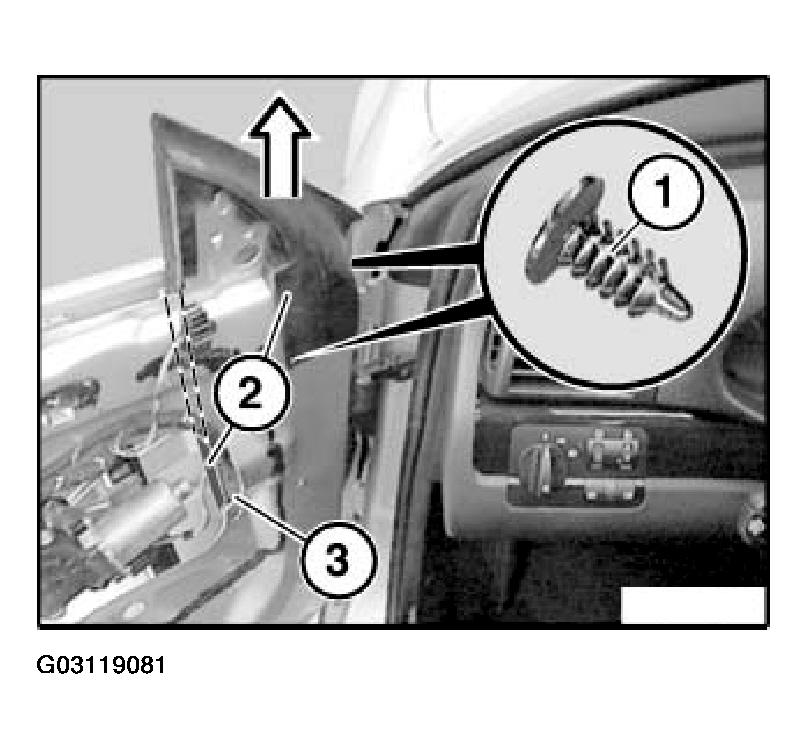

Release rivet (1).
Pull rubber guide (2) completely out of front door.
Installation:
- Prior to installation, coat rubber guide (2) with soapy solution (washing-up liquid).

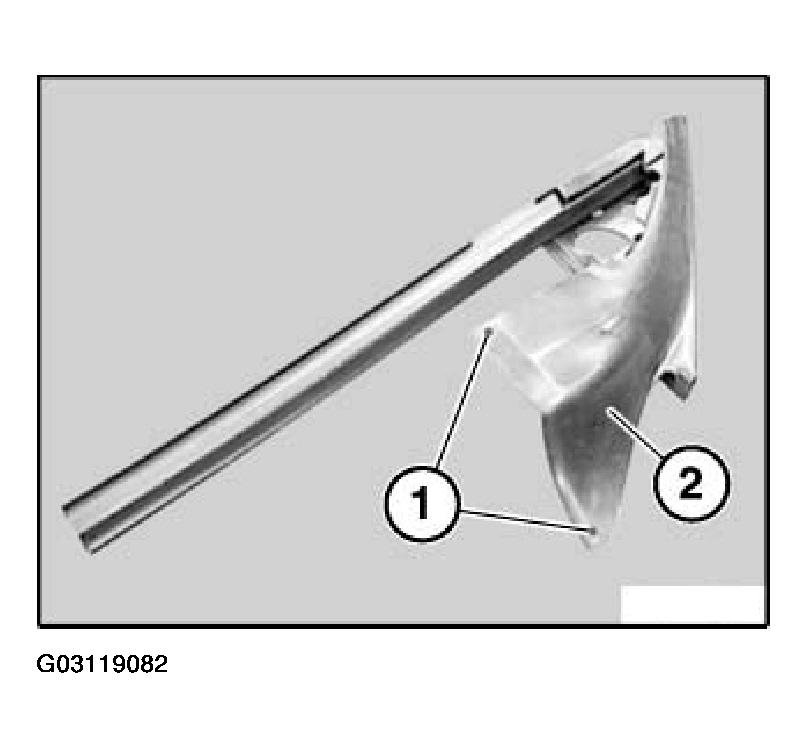

Insert rubber guide at front/bottom into window guide rail (3).
Installation:
- Bores (1) in rubber guide (2) must not be damaged.
