51 32 170 Removing And Installing/Replacing Front Left Or Right Door Window (Coupe, Convertible)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove sound insulation from front door. Refer to 51 48 ... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN LEFT OR RIGHT FRONT DOOR (CONVERTIBLE, COUPE) .
Remove window cavity cover strip on inside of front door. Refer to 51 21 330 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY STRIP ON INSIDE FRONT DOOR (COUPE) .

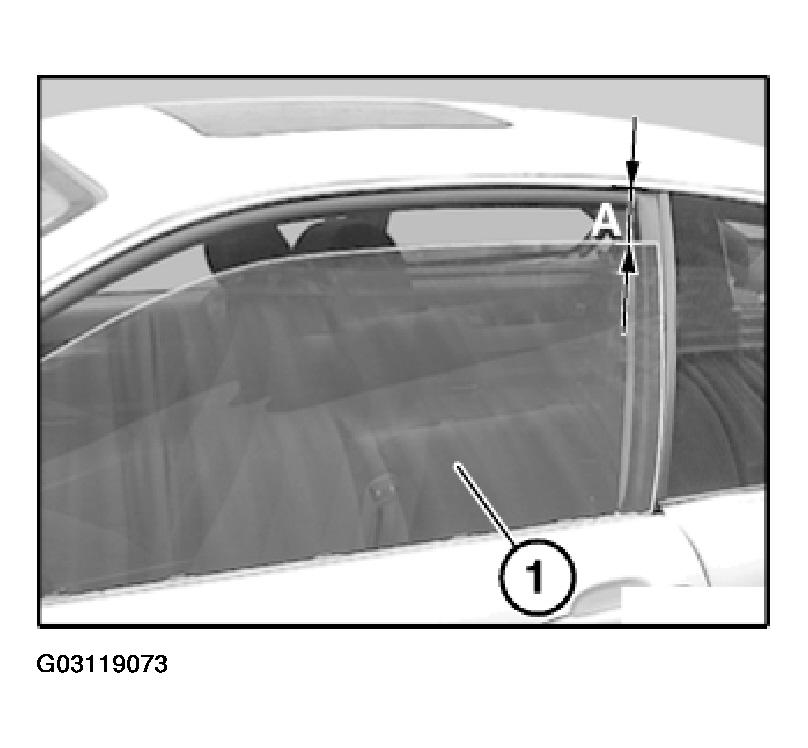

Open door window glass (1) by distance (A).

A = approx. 80 mm.

Fig 1: Opening Door Window Glass To Dimension A

Courtesy of BMW OF NORTH AMERICA, INC.

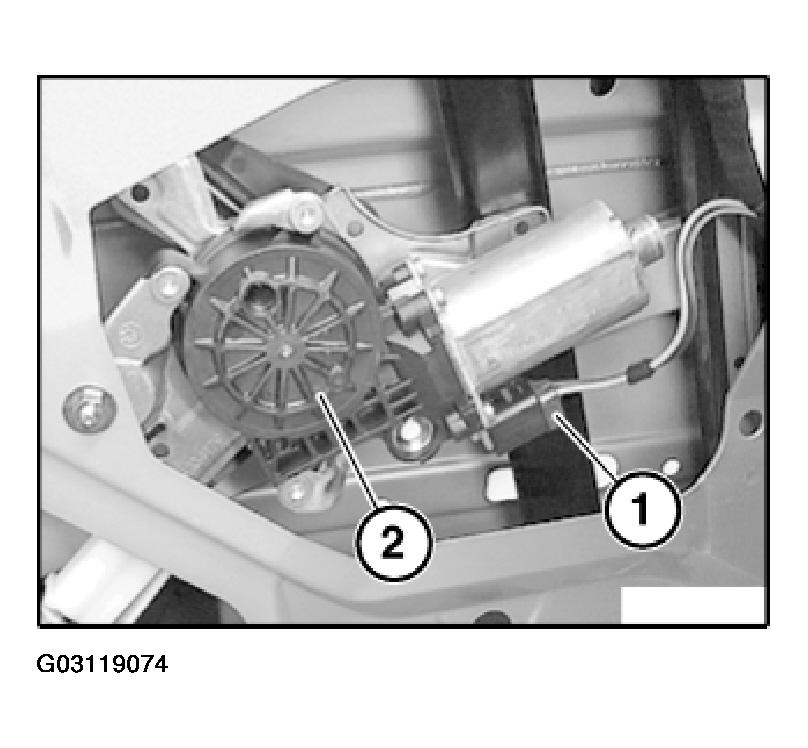

Disconnect plug connection (1) from power window motor (2) (risk of trapping).

Installation:

Convertible From Build Date 09/2003:

Carry out normalization. Refer to 67 62 000 REMOVING AND INSTALLING / REPLACING FLAT MOTOR FOR FRONT LEFT OR RIGHT POWER WINDOW UNIT .

Fig 2: Disconnecting Plug Connection From Power Window Motor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Screw has left-hand thread; turn clockwise to release.

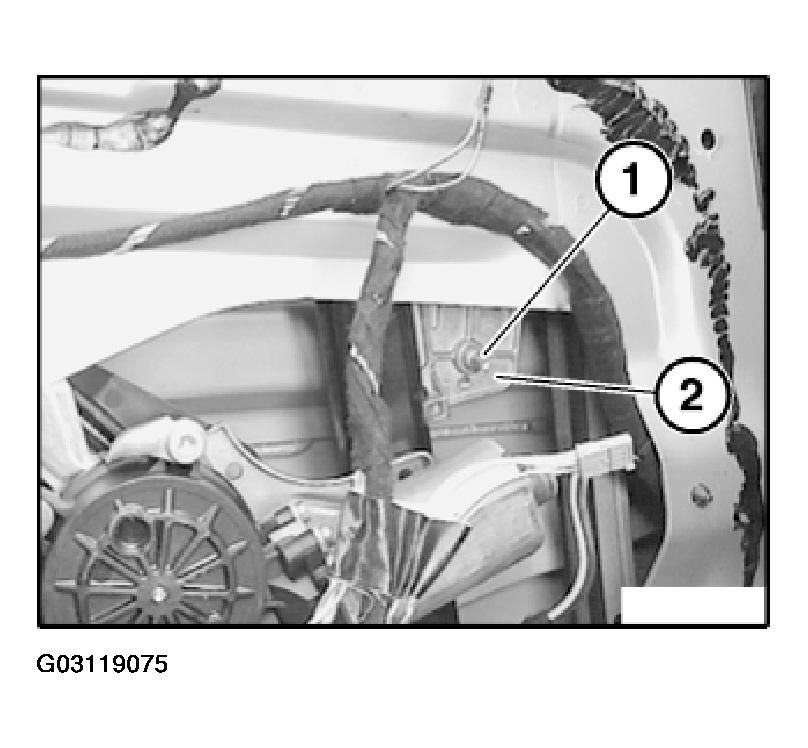

Release bolt (1).

Tightening torque, refer to 51 32 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 3-SERIES .

Installation:

Insert door window glass in guide rail (2).

Fig 3: Inserting Door Window Glass In Guide Rail
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Screw has left-hand thread; turn clockwise to release.

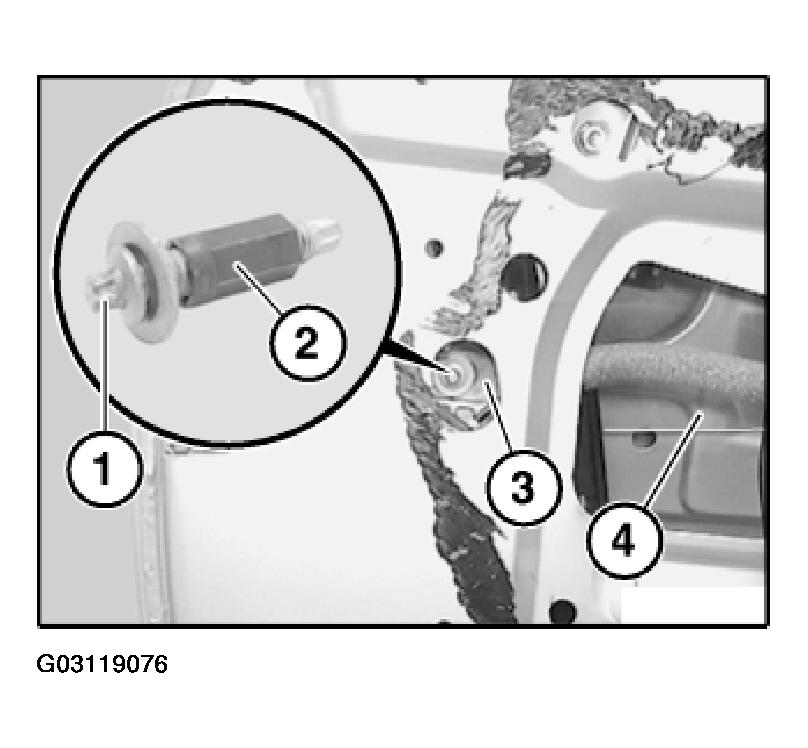

Release screw (1).

Installation:

Insert door window glass (4) in guide rail (3).

Install screw (1) with adjusting sleeve (2) through guide rail (3) and door window glass (4).

Tightening torque, refer to 51 32 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 3-SERIES .

Fig 4: Installing Screw With Adjusting Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

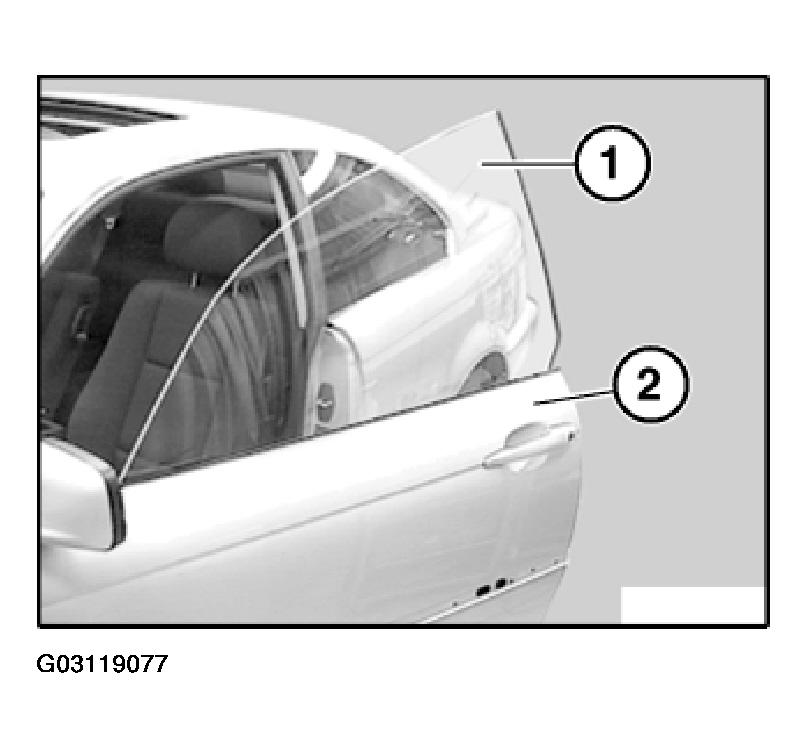

Remove door window glass (1) from front door (2).

Installation:

Adjust door window glass. Refer to 51 32 154 ADJUSTING FRONT LEFT OR RIGHT DOOR WINDOW GLASS (COUPE, CONVERTIBLE) .

Fig 5: Removing Door Window Glass From Front Door

Courtesy of BMW OF NORTH AMERICA, INC.

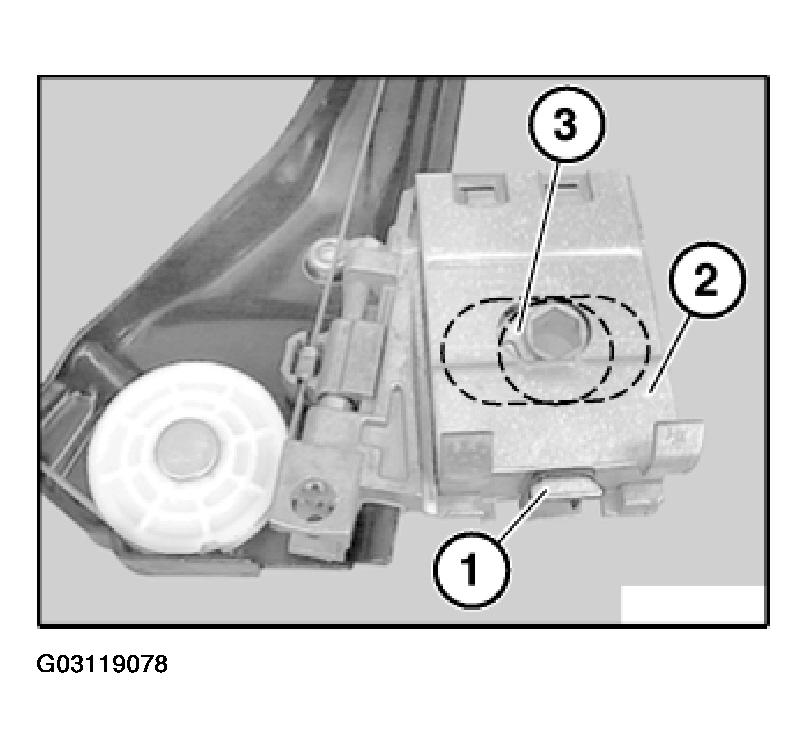

NOTE: Rubber ring (1) may be damaged during removal of door window glass.

If necessary, replace rubber ring (1).

Fig 6: Locating Rubber Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

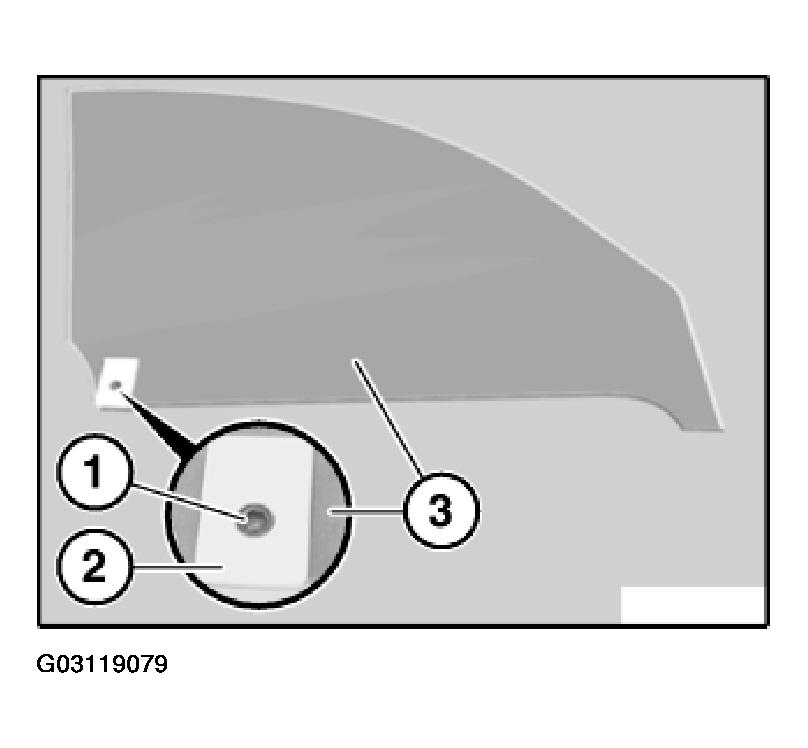

Lever out threaded sleeve (1).

Remove shim (2) with clamping plate from door window glass (3).

NOTE: Convertible Only: Door window glass is partly coated with Aquapell; this is identified by a white dot on the door window glass.

Fig 7: Removing Shim With Clamping Plate From Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

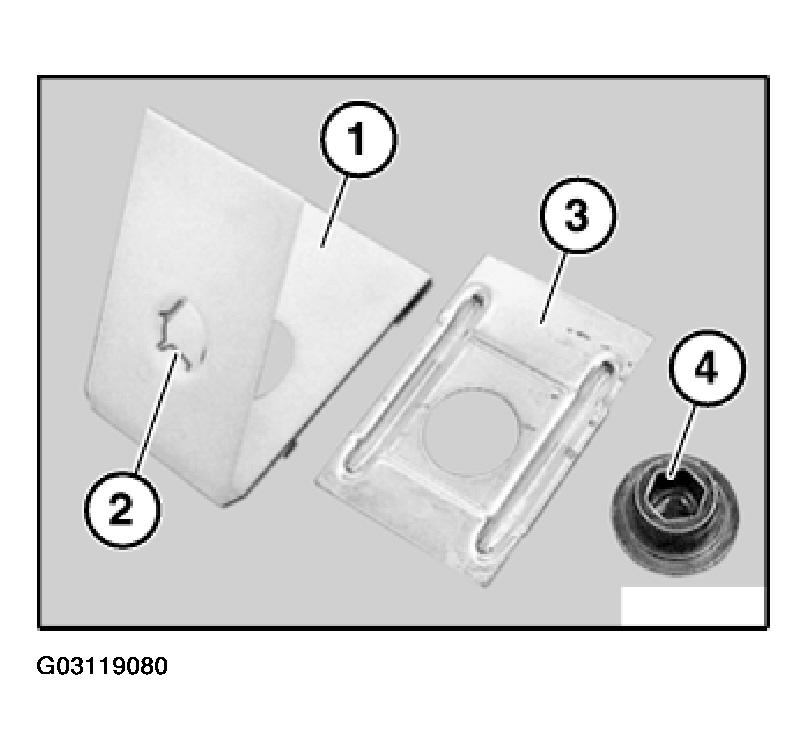

Installing shim:

Attach shim (1) to clamping plate (2).
Slide shim (1) and clamping plate (2) onto door window glass, press together until all catches (2) snap into place in bore.
Insert threaded sleeve (4) through bore until it snaps into place.

Fig 8: Attaching Shim To Clamping Plate
Courtesy of BMW OF NORTH AMERICA, INC.
