17 11 000 Removing And Installing Radiator (S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding! Only perform this work after engine has cooled down.

NOTE: Follow instructions for working on cooling system. Refer to 17 00 . . . INSTRUCTIONS FOR WORKING ON COOLING SYSTEM. .

Necessary Preliminary Tasks:

Remove oil cooler. Refer to 17 21 150 REMOVING AND INSTALLING/REPLACING OIL COOLER (S54) .
Drain coolant. Refer to 17 00 005 DRAINING OFF AND TOPPING UP COOLANT (S54) .
Remove fan cowl. Refer to 17 11 031 REPLACING FAN COWL (S54) .

Remove plug (1) from control unit for xenon light.

Remove cover (2).

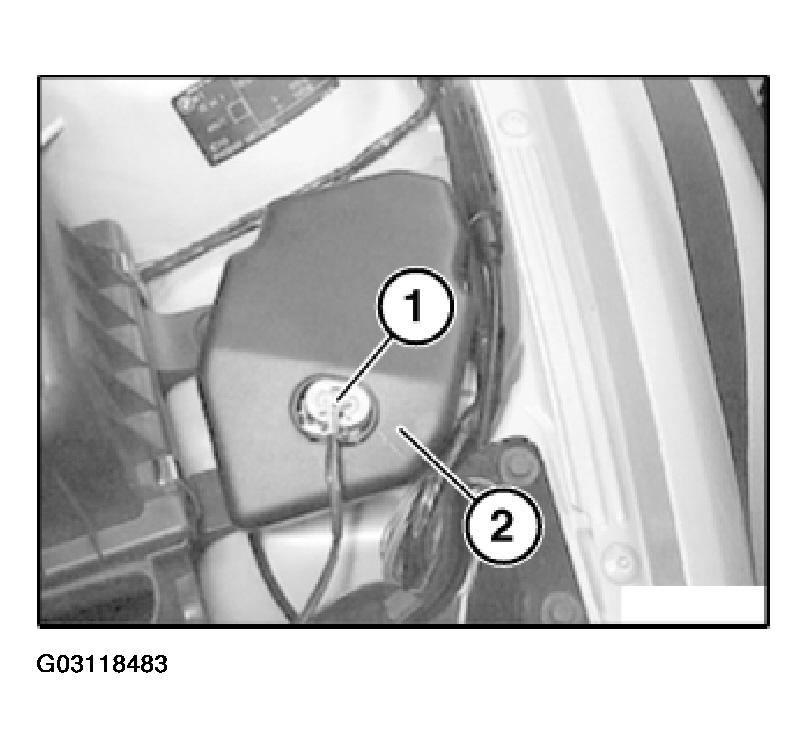

Fig 1: Locating Plug From Control Unit For Xenon Light

G03118483

Courtesy of BMW OF NORTH AMERICA, INC.

M3 CSL Only:

Feed out rubber grommets.

Unlock plug (1) from control unit and disconnect.

Remove cover (2).

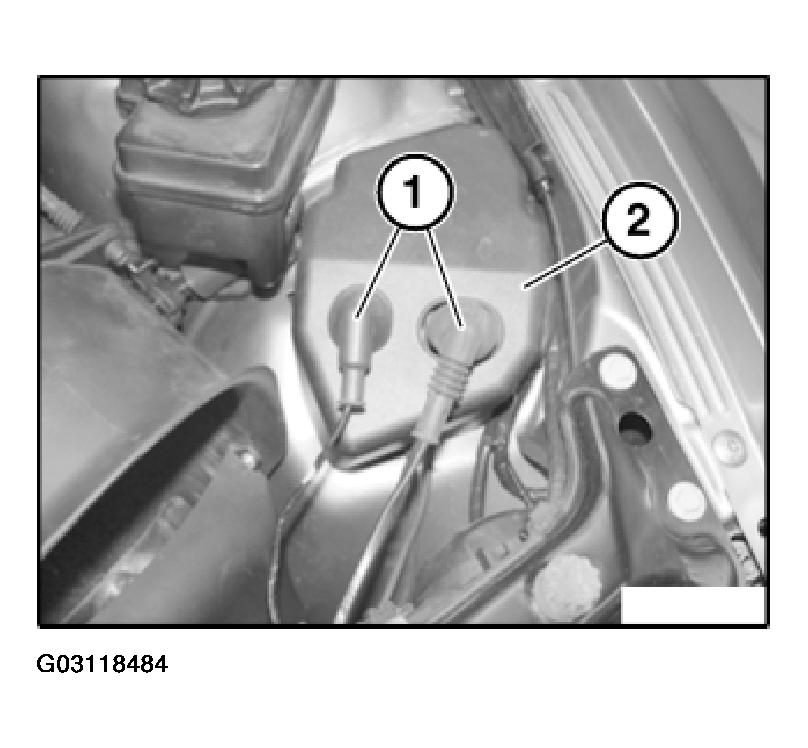

Fig 2: View Of Plug From Control Unit

G03118484

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1, 2, 3).

Remove control unit for left xenon light.

Remove air cleaner. Refer to 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING (S54) .

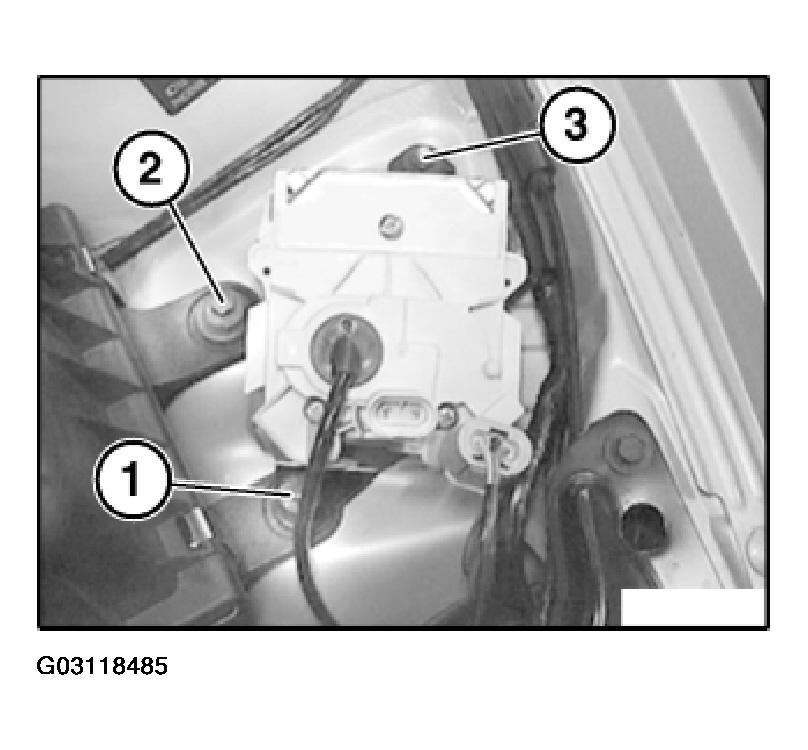

Fig 3: Identifying Control Unit For Left Xenon Light

G03118485

Courtesy of BMW OF NORTH AMERICA, INC.

Release plastic retainers (1).

Remove plastic tube (2) on top side of radiator.

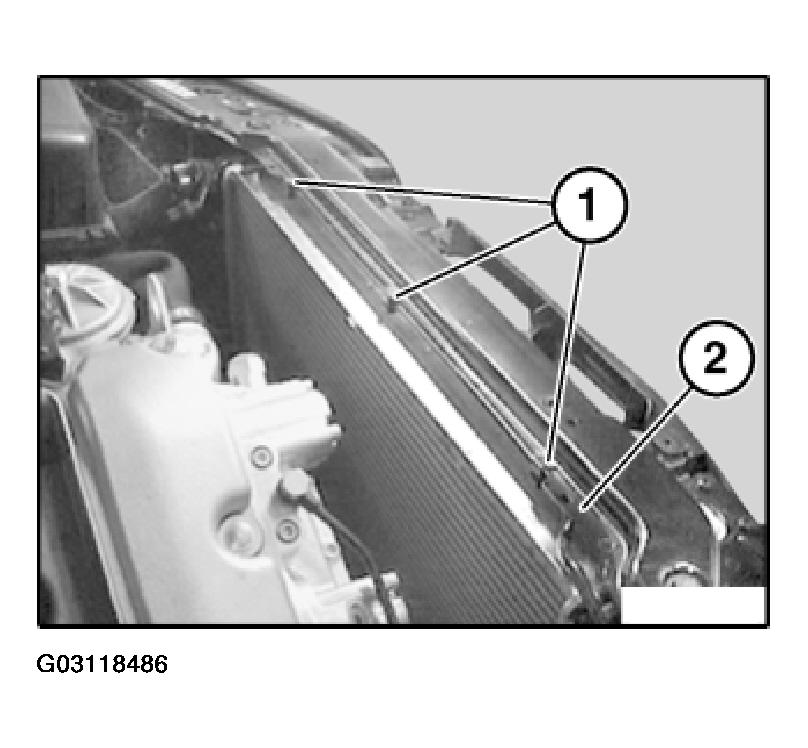

Fig 4: Locating Plastic Retainers On Radiator

G03118486

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) at top left on radiator.

Tilt radiator towards rear and pull out in upward direction.

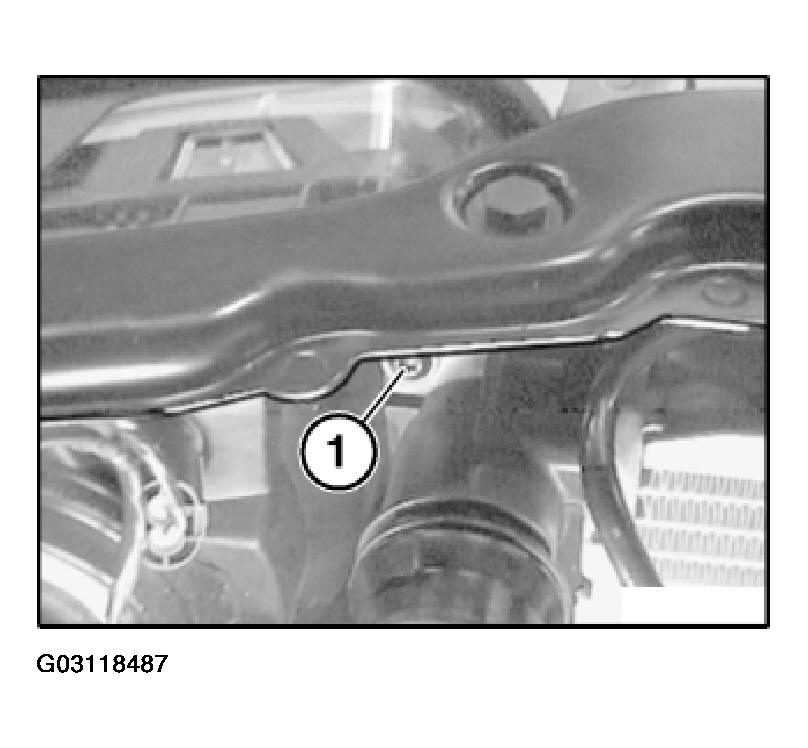

Fig 5: Locating Screw At Top Left On Radiator

G03118487

Courtesy of BMW OF NORTH AMERICA, INC.
